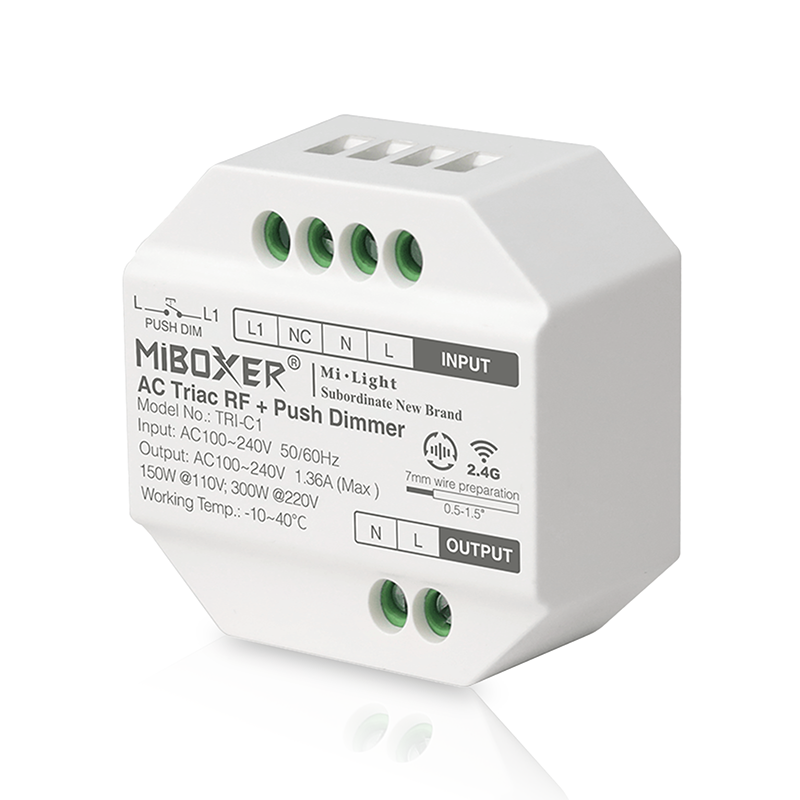

MI-LIGHT TRIAC DIMMER MODULE

Product Description

The Mi-Light TRIAC Dimmer Module is a compact wireless LED phase dimmer for dimming TRIAC-powered lighting. This module is suitable for dimmable LED lamps, retrofit LED lamps, constant voltage light sources with TRIAC-dimmable power supplies, and constant current light sources with suitable dimmable drivers. Within the collection of Smart Dimmers, this Mi-Light module is a practical choice for flexible wireless light control.

This TRI-C1 dimmer operates on 100-240V AC and supports up to 300 Watts at 220-230V. Thanks to phase-cut dimming, the dimmer offers stable and comfortable dimming performance. The dimming range can extend from 100% to 1% depending on the light source, allowing for very precise light adjustment. For suitable light sources, you can combine this module with Dimmable LED lamps, LED spots, and appropriate Drivers.

The module supports 2.4GHz wireless control and push dimming. This allows the lighting to be controlled via a suitable RF control or via a push switch. The memory function for the minimum dimming level helps prevent flickering at low light levels and ensures stable lighting in living and working environments.

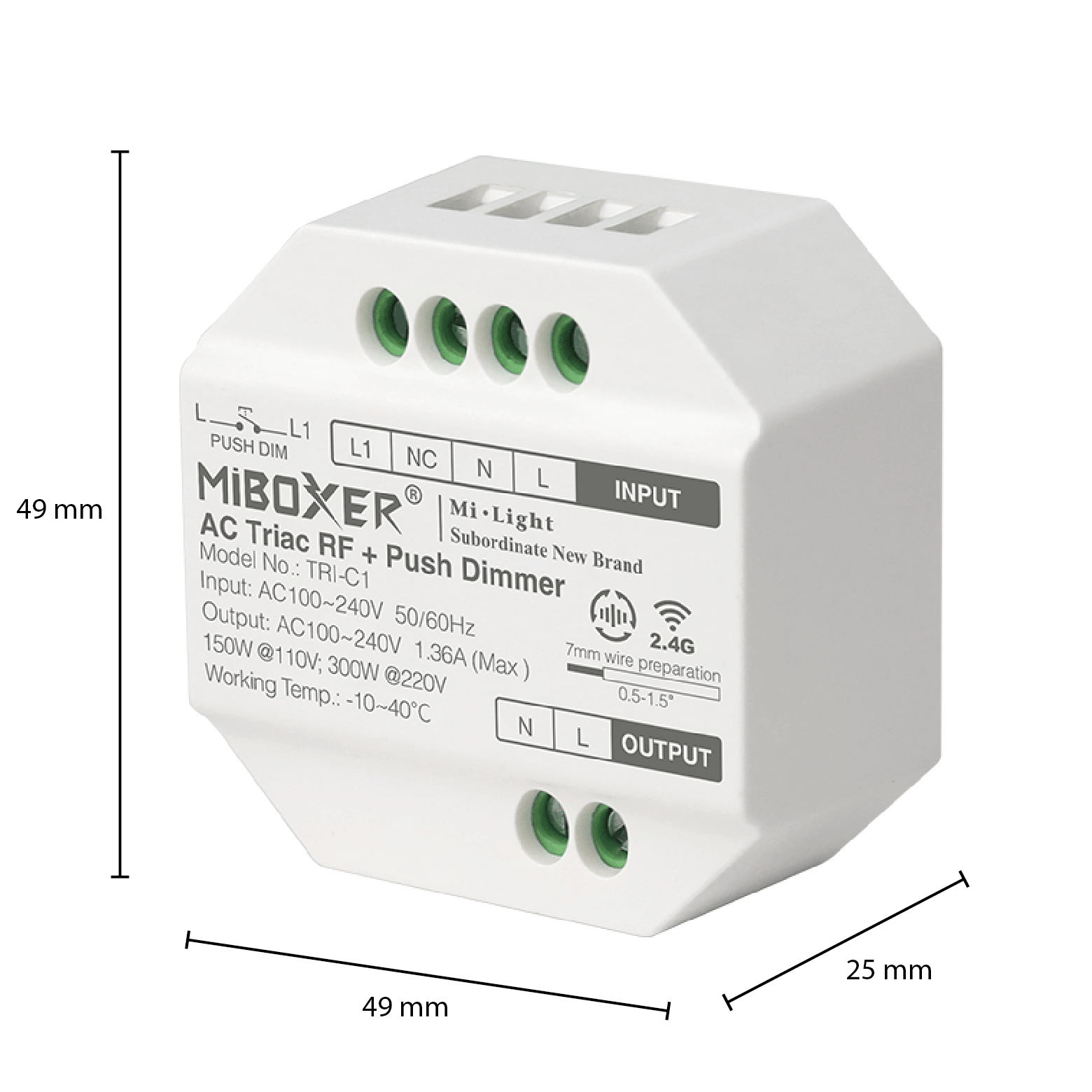

With compact dimensions of 49 x 49 x 25 mm, this module is suitable for discreet installation in setups where a visible dimmer is not desired. For other smart dimming solutions, you can look at the Inline Zigbee Dimmer 250W or the Inline Dimmer WiFi 250W.

Wireless 2.4GHz control

The module supports RF wireless dimming via 2.4GHz, allowing lighting to be controlled flexibly and comfortably.

Phase-cut for TRIAC lighting

Thanks to phase-cut, the module is suitable for many TRIAC-powered dimmable LED installations.

Compact dimming module

With dimensions of 49 x 49 x 25 mm, the module can be easily concealed in suitable installation spaces.

Specifications

• Product type: Mi-Light TRIAC dimmer module Model: TRI-C1 Wattage: 300 Watts at 220-230V / 150 Watts at 110V Voltage: 100-240V AC Frequency: 50/60 Hz Output current: Maximum 1.36A Dimmer type: Phase-cut Control: 2.4GHz RF wireless and push dimming Dimming range: 100% to 1%, depending on light source Length: 49 mm Width: 49 mm Height: 25 mm Product color: White Material: Plastic Operating temperature: -10°C to +40°C Certification: CE Warranty: 2 years Application: Smart home installations, LED spots, retrofit LED lamps, TRIAC-powered lighting, and dry indoor areas

Important installation note

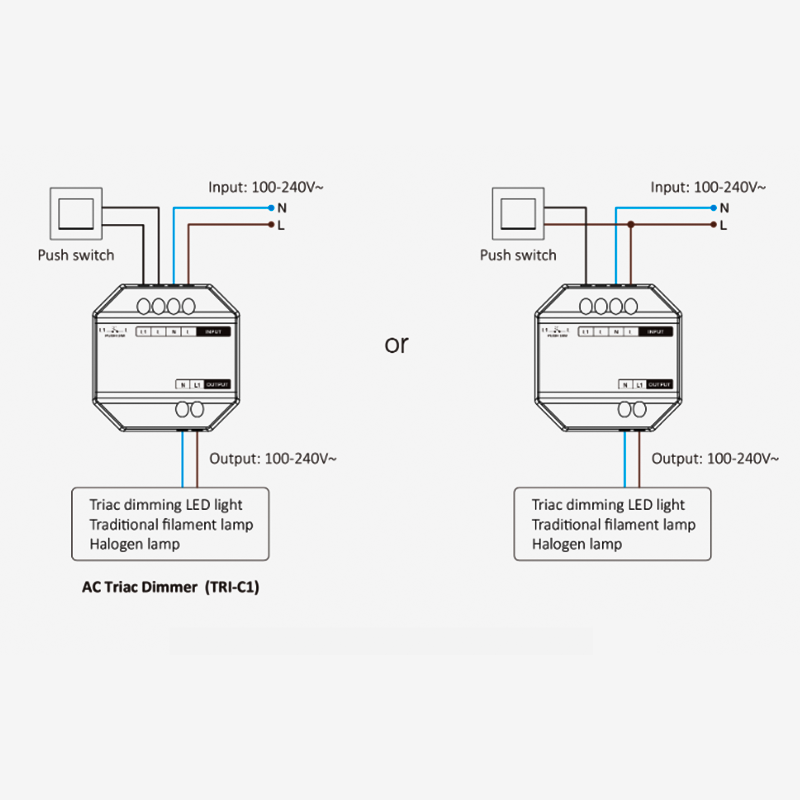

The Mi-Light TRIAC Dimmer Module is intended for suitable TRIAC-powered dimmable lighting. Before installation, check whether the connected lamp, power supply, or driver is suitable for phase-cut dimming. Use the module within the correct voltage and power range.

For a complete installation, this module can be combined with Smart Dimmers, suitable Dimmable LED lamps and appropriate Drivers.

Advantages

• Mi-Light TRIAC dimmer module Suitable for 100-240V AC Up to 300W at 220-230V Phase-cut 2.4GHz RF wireless control Push dimming possible Dimming range up to 1%, depending on light source Memory function for minimum dimming level Compact size of 49 x 49 x 25 mm Plastic housing CE certified Operating temperature from -10°C to +40°C Suitable for TRIAC-powered lighting Practical for smart installations 2-year warranty

Perfect for

• TRIAC-powered LED lighting Dimmable retrofit LED lamps LED spots Smart home installations Living rooms Bedrooms Offices Hotels Showrooms Restaurants Hidden dimmer modules Renovation projects New construction projects Wireless control Dry indoor areas
