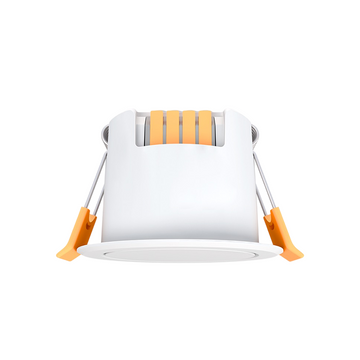

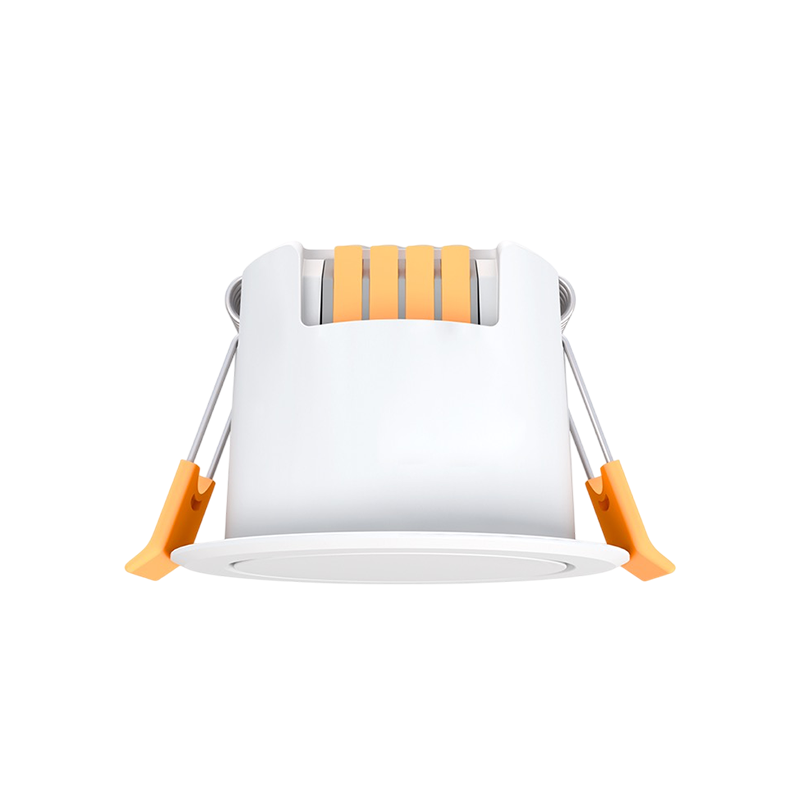

MI-LIGHT MASTER SLAVE SENSOR MICROWAVE

• Presence sensor
• 100-240V(AC)
• Detection range 3 to 8m
• IP20
• 5 year warranty

Mi-Light Master-Slave Microwave Presence Sensor – Smart detection without blind spots

The Mi-Light master-slave presence sensor is an advanced microwave radar sensor that detects static human presence with unprecedented precision. Thanks to a combination of radar and smart network technology, this sensor provides reliable, continuous control of your smart lighting, even when minimal movement occurs, such as breathing.

Reliable presence sensor for smart lighting

This presence sensor works both as a standalone device and as part of a network of multiple sensors. Using the master-slave principle, motion detection by one sensor activates the entire network. This eliminates blind spots and ensures evenly lit spaces. The sensor can also control light sources other than mi-light.

Key Features:
One master, multiple slaves – network-wide response upon detection
Also detects micro-movements such as chest expansion or breathing
Direct control of lighting via built-in relay (AC 100-240V)
Microwave radar technology, more sensitive than traditional PIR sensors
No physical touch required, 100% contactless detection

Adjustable detection & seamless integration

The sensor has an adjustable detection range of 3 to 8 meters and a 120° angle, making it ideal for applications in offices, hallways, meeting rooms, restrooms, or warehouses. A DIP switch allows you to precisely adjust the range to the situation.

Technical specifications:
Detection distance: adjustable from 3 to 8 meters
Detection angle: 120°
Input voltage: 100–240V AC (50/60 Hz)
Output current: max. 10A
Protocol: 2.4 GHz wireless communication
Microwave frequency: 24GHz
Wireless control distance: up to 30 meters
IP value: IP20 (suitable for dry indoor areas)
Dimensions: 67 x 67 x 46.5 mm

Smart collaboration with Mi-Light systems

The Mi-Light presence sensor works seamlessly with other Mi-Light components. As soon as one sensor detects motion, all connected luminaires in the network respond. This makes the sensor ideal for use in smart buildings where comfort, energy efficiency, and safety are paramount.

Applications

This sensor is ideal for:
Office lighting
Hospitality environments
Stairwells and corridors
Storage spaces
Sanitary facilities
Smart home automation

Want to benefit from intelligent, network-controlled lighting without blind spots? Then choose the Mi-Light master-slave presence sensor, the standard for modern motion detection in smart lighting systems.
