TRIAC LED DIMMER SLAVE | 0.3-200 WATT | ION INDUSTRIES

Product Description

The TRIAC LED Dimmer Slave 0.3-200 Watt Ion Industries is an additional slave dimmer for use within an Ion Industries master-slave dimming installation. This dimmer is specifically designed to work with the Ion Industries Master-Slave Dimmer and enables control from multiple points without extra complex wiring. Within the collection of Ion Industries Dimmers, this slave dimmer is a practical extension for two-way switching setups, hallways, stairwells, and larger spaces.

This slave dimmer supports 0.3 to 200 Watt and operates on 200-240V AC. It supports both leading-edge and trailing-edge dimming and is suitable for many dimmable LED lamps, drivers, and light sources within the correct power range. For suitable light sources, you can look within Dimmable LED lamps, LED spots, and Drivers.

The IMD Slave Dimmer is intended as an extension to the master dimmer and is suitable for installations without a NEUTRAL wire. This makes it particularly useful for renovations and existing installations where extra wiring is difficult or undesirable. The dimmer has a built-in design with a rotary knob and is designed for noiseless dimming.

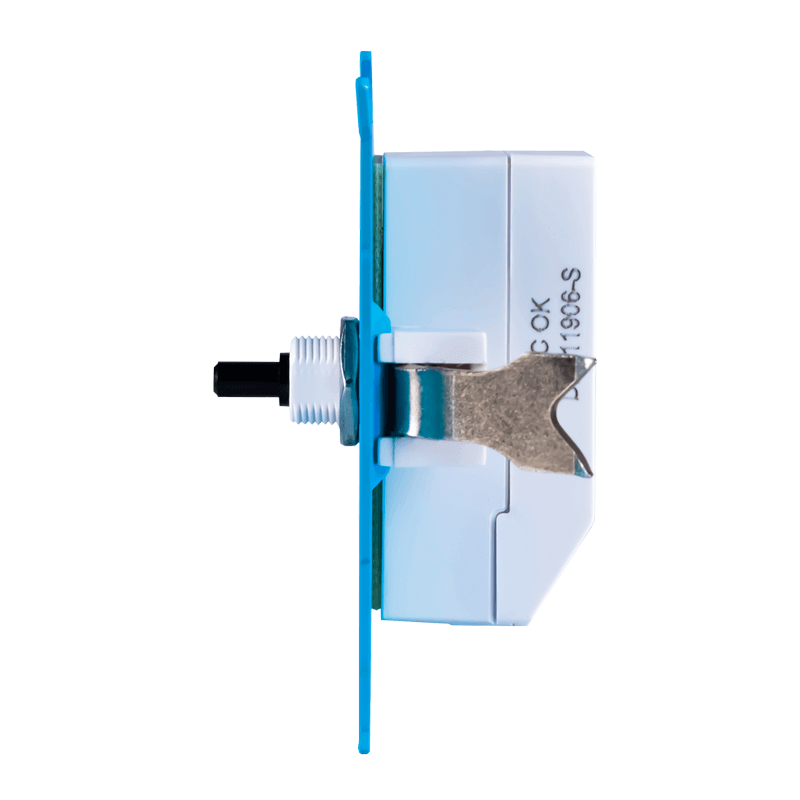

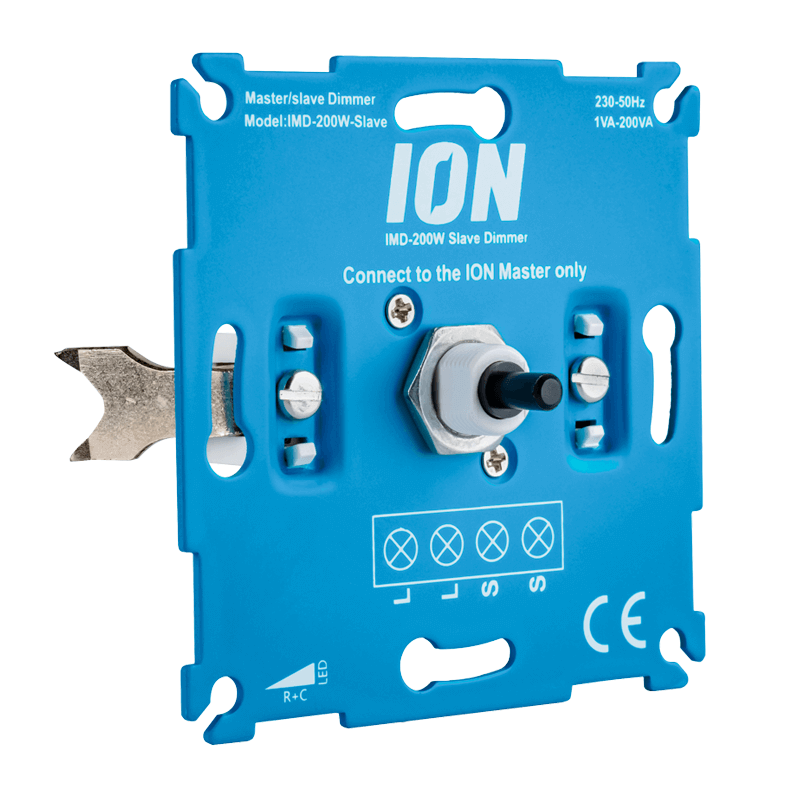

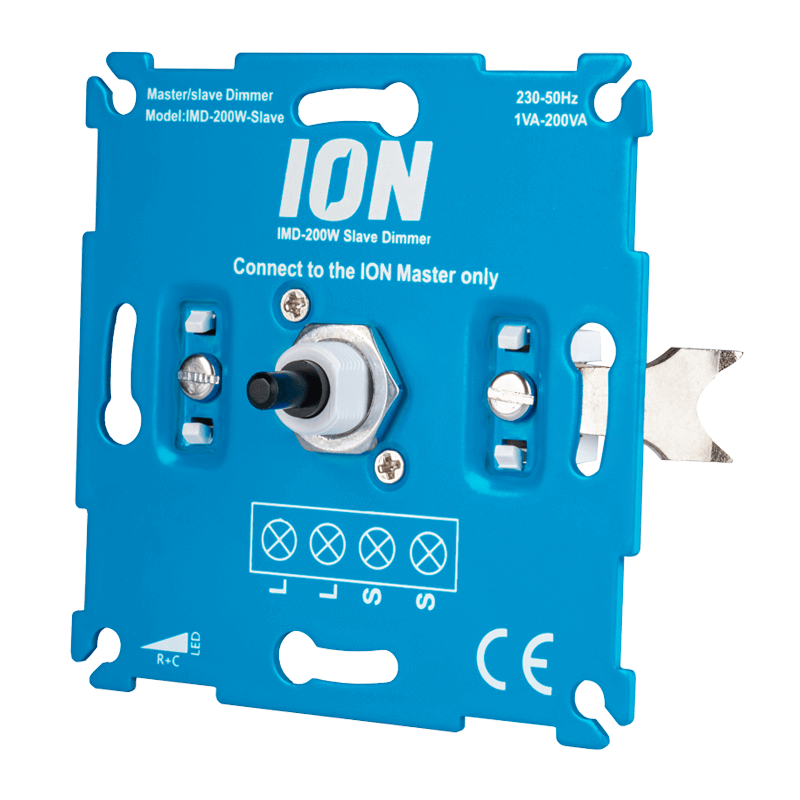

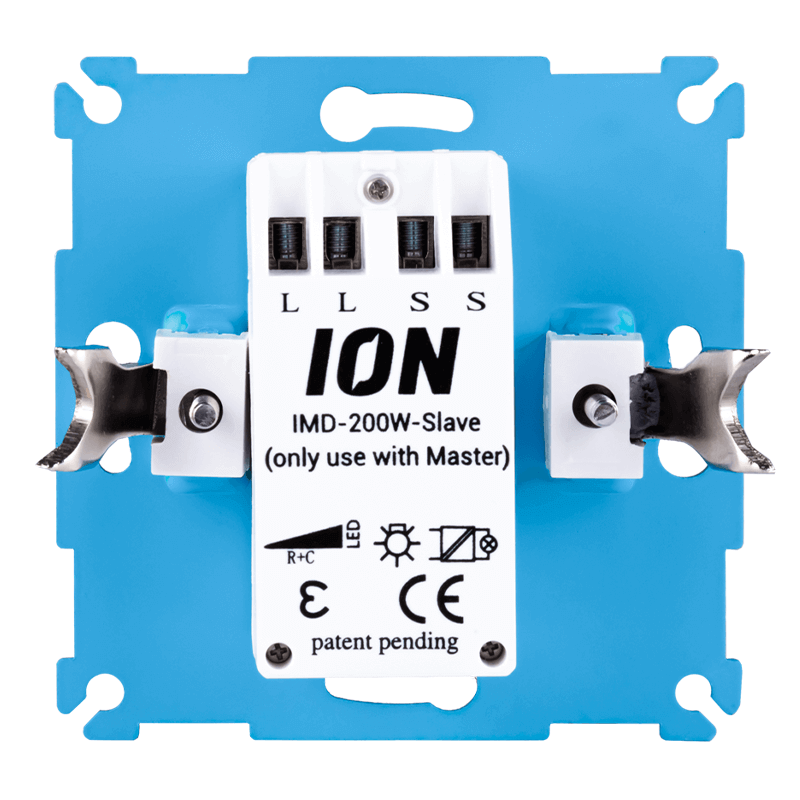

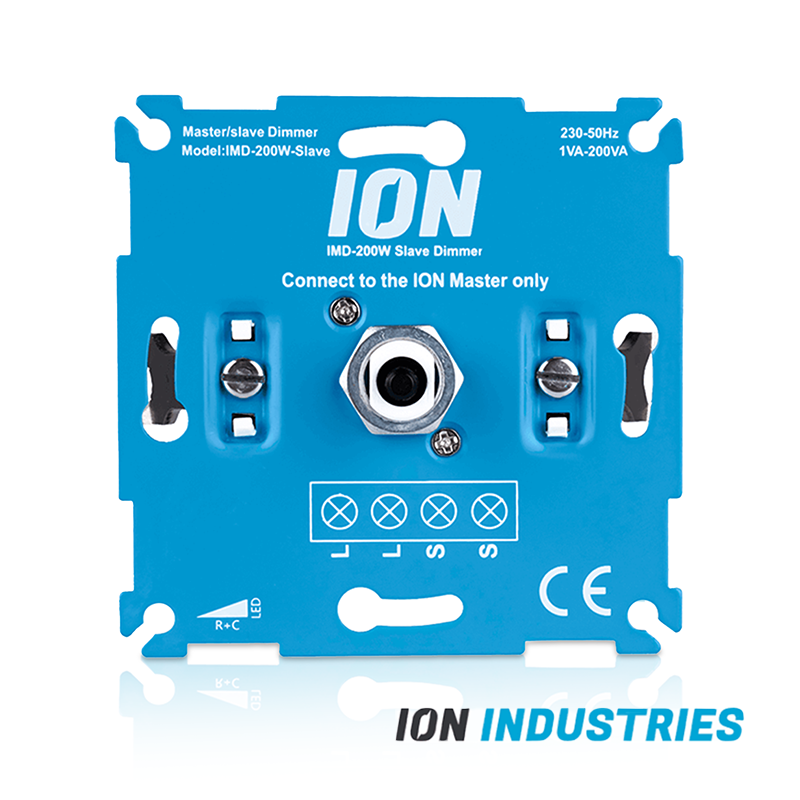

With dimensions of 71 x 71 x 22 mm and an aluminum/plastic construction, this dimmer offers a compact and reliable solution. For a complete setup, combine this slave dimmer with the TRIAC LED Master-Slave Dimmer 0.3-200 Watt Ion Industries. For another Ion Industries dimming solution, you can look at the LED Touch Dimmer 200 Watt.

Slave dimmer for master-slave installations

This dimmer is intended as a slave in combination with a suitable Ion Industries master dimmer. This enables control from multiple points.

No NEUTRAL wire needed

The dimmer is suitable for installations without a NEUTRAL wire, which is useful for renovations and existing wiring.

Leading and trailing edge dimming

The slave dimmer supports both dimming techniques, making it suitable for many dimmable LED applications.

Specifications

• Product type: TRIAC LED slave dimmer Brand: Ion Industries Wattage: 0.3-200 Watt Dimming range: 0-100% Voltage: 200-240V AC Frequency: 50 Hz Dimmer type: Leading-edge and trailing-edge Length: 71 mm Width: 71 mm Height: 22 mm Product color: Blue/White Material: Aluminum and plastic Certifications: CE and RoHS Protection: Overvoltage protection Warranty: 5 years Application: Master-slave installations, two-way switching, hallways, stairwells, homes, offices, hotels, and dry indoor areas

Important installation note

The TRIAC LED Dimmer Slave 0.3-200 Watt Ion Industries is not a standalone standard dimmer, but is intended for use with a suitable Ion Industries master dimmer. Before installation, check whether the connected master dimmer, lamps, and wiring are suitable for this master-slave application.

For a complete installation, combine this slave dimmer with the TRIAC LED Master-Slave Dimmer 0.3-200 Watt Ion Industries, suitable Dimmable LED lamps and appropriate Switching Material.

Advantages

• TRIAC LED slave dimmer Suitable for 0.3-200W LED lighting Dims from 0-100% 200-240V AC connection Leading-edge and trailing-edge Designed for master-slave installations No NEUTRAL wire needed Suitable for two-way switching Noiseless dimming Overvoltage protection Compact size of 71 x 71 x 22 mm Aluminum and plastic material CE and RoHS certified Ion Industries quality 5-year warranty

Perfect for

• Master-slave dimming installations Two-way switching Hallways Stairwells Bedrooms Living rooms Offices Hotels Apartments Multiple control points Renovation projects New construction projects Dimmable LED lamps LED spotlights Dry indoor areas
