LED DIMMER | 1-10V (50mA)

Product Description

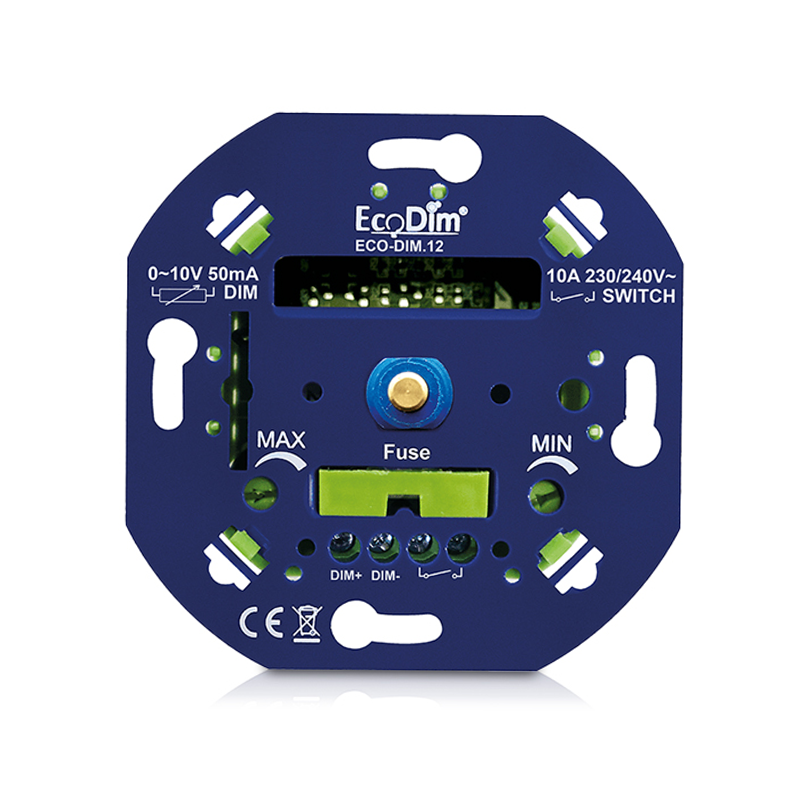

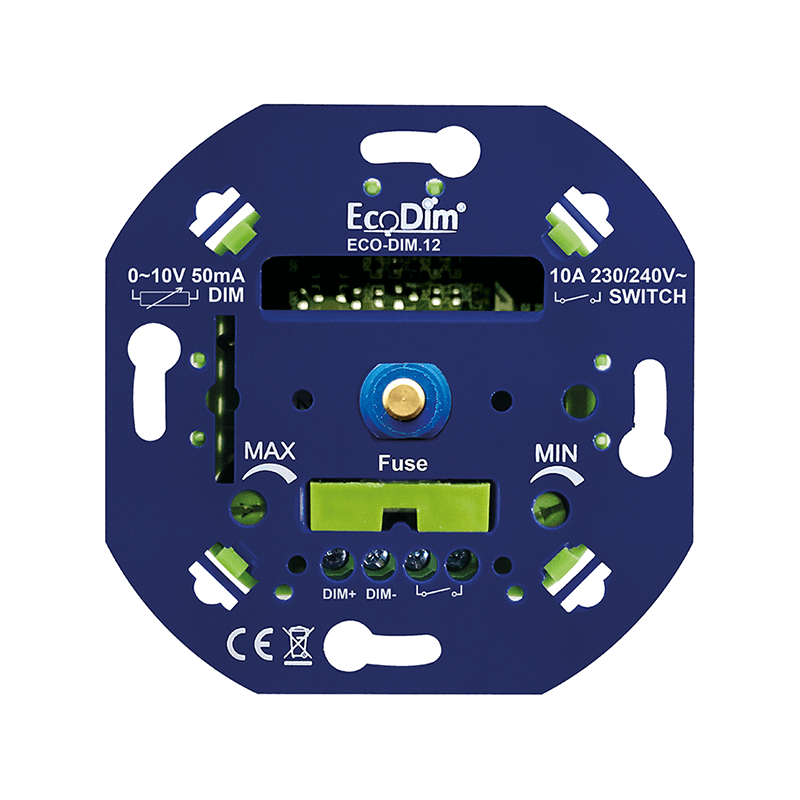

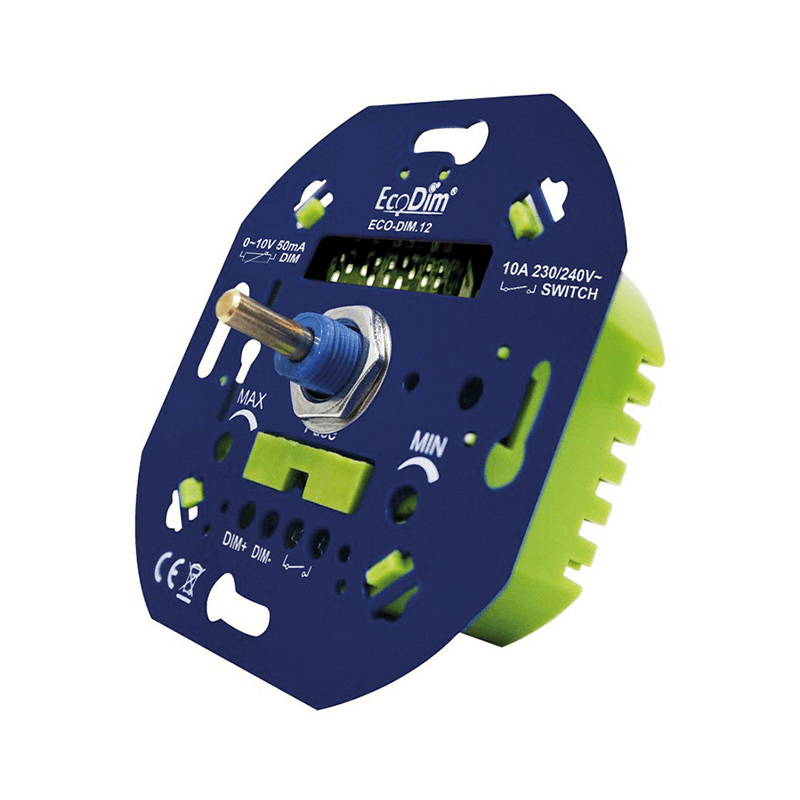

The LED Dimmer 1-10V 50mA is a professional dimmer for controlling dimmable 1-10V drivers. This dimmer is particularly suitable for larger installations in offices, hotels, shops, showrooms, schools, and commercial spaces where lighting needs to be controlled via 1-10V. Within the Wall Dimmers collection, this ECO-DIM.12 is a reliable choice for technical and project-based lighting control.

With 1-10V dimming, the maximum power is not determined by the dimmer itself, but by the connected 1-10V driver. This makes this dimmer suitable for installations with multiple fixtures, as long as the driver and installation are correctly chosen. The dimmer operates with a 220-240V input voltage and has a 1-10V control signal of 50mA. For projects with driver-controlled lighting, you can combine this dimmer with Drivers and suitable fixtures from LED Panels.

The MIN and MAX potentiometers allow for precise adjustment of the minimum and maximum dimming levels. This enables stable and comfortable lighting settings, suitable for the room's application. The dimmer also features a replaceable fuse and protection against overload, overheating, and interference signals.

With an installation depth of 24.9 mm and dimensions of 71 x 71 mm, this dimmer is suitable for many standard installation situations. For other dimming techniques, you can look at the LED Dimmer Flush-mounted Module 0-250W RLC or the TRIAC LED Dimmer 0.5-250W Universal.

1-10V Control for Professional Drivers

This dimmer is intended for dimmable 1-10V drivers and is therefore suitable for project lighting and larger installations.

Precise MIN and MAX Settings

With the potentiometers, you can precisely adjust the lowest and highest dimming levels to match the driver and lighting used.

Safe and Reliable Operation

The dimmer is equipped with protection against overload, overheating, and interference signals. The replaceable fuse makes maintenance practical.

Specifications

• Product type: LED dimmer 1-10V Model: ECO-DIM.12 Control signal: 1-10V Amperage: 50mA Input voltage: 220-240V Frequency: 50/60 Hz IP rating: IP20 Length: 71 mm Width: 71 mm Installation depth: 24 mm Material: Aluminium and metal Adjustment: MIN and MAX potentiometers Warranty: 2 years Application: 1-10V drivers, offices, hotels, shops, schools, showrooms, commercial lighting and dry indoor spaces

Important Installation Note

The LED Dimmer 1-10V 50mA is designed for dimmable 1-10V drivers. Always check the specifications of the connected driver before installation, as this determines the maximum power of the lighting. Use the dimmer only in dry indoor areas with an IP20 application.

For a complete installation, this dimmer can be combined with Drivers, suitable LED Panels and other solutions from Dimmers.

Advantages

• 1-10V LED dimmer 50mA control signal Suitable for dimmable 1-10V drivers 220-240V input voltage 50/60 Hz frequency MIN and MAX potentiometers Replaceable fuse Overload protection Overheating protection Interference signal protection Installation depth of 24 mm Dimensions of 71 x 71 mm IP20 for dry indoor spaces Suitable for project lighting 2-year warranty

Perfect for

• 1-10V drivers Offices Hotels Shops Showrooms Schools Meeting rooms Commercial spaces LED panels Project lighting Driver-controlled lighting Renovation projects New construction projects Technical installations Dry indoor spaces
