LC-LIGHT | CROSS SWITCH | WHITE
Regular price
€4,24
excl btw
Sale price
Regular price
€6,42
€4,24
excl btw
-34%
Unit price
Save 34%
op voorraad
(50)
Grote aantallen nodig ?
Vraag offerte aan
✓
Voor 15:00 besteld morgen in huis
✓
Gratis advies via 0172 - 729 008
✓
Gratis verzendkosten boven de €125
✓
Klanten geven ons een 4.5/5 op Trustpilot
✓
Retourneren binnen 30 dagen
Achteraf betalen met Klarna
Meer dan 5.000 zakelijke klanten kiezen voor
Verlichting Groothandel
Advies nodig over de juiste verlichting of een compleet lichtplan?
>Bekijk de mogelijkheden
Advies nodig?
Twijfel je over de juiste verlichting of heb je een lichtplan nodig?
Wij helpen je met persoonlijk advies en een passende, efficiënte oplossing voor elke ruimte of elk project.
Verlichting Groothandel
📞 0172 – 729 008
✉️
info@verlichtinggroothandel.nl
💬
WhatsApp ons direct
Product Description

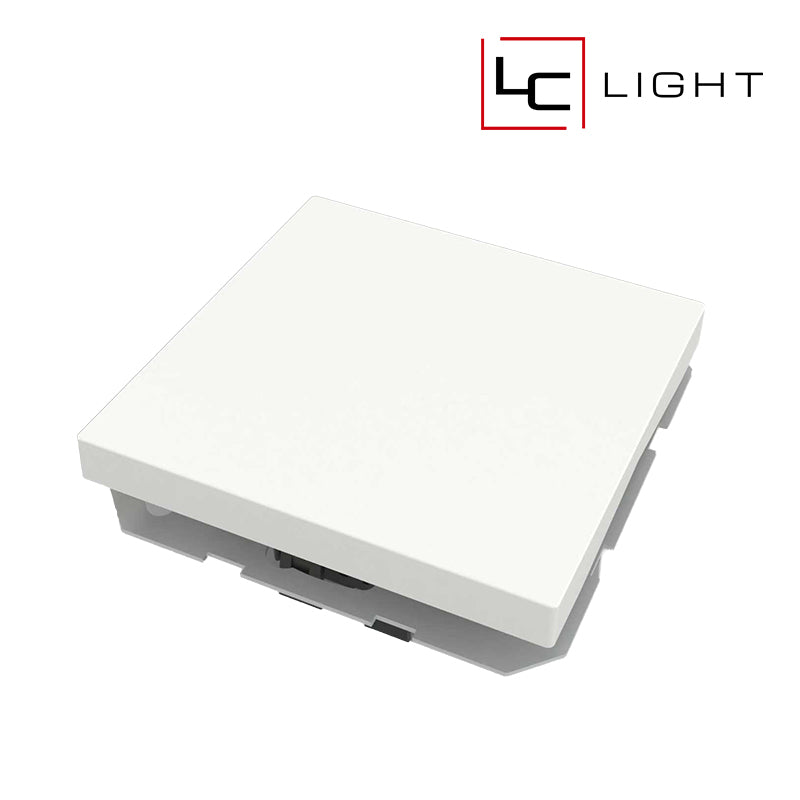

The LC-Light intermediate switch in white is a reliable flush-mounted switch for operating a single light point from three or more different locations. This switch is ideal for situations where lighting needs to be controlled from multiple points, such as long hallways, stairwells, large living areas, offices, hotels, shops, and other professional indoor spaces.
This intermediate switch features a timeless white finish, making it blend nicely with light-coloured walls and modern white switchgear. Thanks to its compact size of 70 x 70 x 10 mm, an installation diameter of 60-68 mm, and an installation depth of 20 mm, the switch can be easily integrated into many standard flush-mounted boxes. The combination of plastic and metal ensures a sturdy and reliable construction for daily use.
Use this switch as part of modern LC-Light switchgear. For a neat finish, you can combine it with a suitable LC-Light 1-gang cover frame in white or, for multiple switches side-by-side, with an LC-Light 2-gang cover frame in white. For proper multi-point switching, this intermediate switch can be used in combination with the LC-Light 2-way switch in white.
Key Features
- Intermediate switch for control from three or more locations
- Suitable for 230V installations
- Load capacity up to 10A
- White finish for a timeless look
- Compact size of 70 x 70 x 10 mm
- Suitable for flush mounting
- Installation diameter of 60-68 mm
- IP20 for dry indoor areas
Applications
- Long hallways
- Stairwells
- Living rooms
- Bedrooms
- Offices
- Hotels
- Shops
- Meeting rooms
- Multi-point switching
Installation & Compatibility
This LC-Light intermediate switch in white is intended for flush mounting in dry indoor areas. An intermediate switch is typically used in combination with 2-way switches when a single light point needs to be controlled from three or more locations. Before installation, always check if the flush-mounted box, wiring, voltage, and switching are suitable for this application. The switch operates on 230V and has a load capacity of 10A.
Specifications
- Product type: Intermediate switch
- Series: LC-Light
- Colour: White
- Operating voltage: 230V
- Power: 10A
- Dimensions: 70 x 70 x 10 mm
- Installation diameter: 60-68 mm
- Installation depth: 20 mm
- Mounting method: Flush-mounted
- Material: Plastic and metal
- Protection class: IP20
- Certifications: CE, RoHS and VDE
- Warranty: 2 years
| Technical Specifications | |
| Voltage | 230V |
| IP Rating | IP20 |
| Dimensions | |
| Length (mm) | 70 |
| Width (mm) | 70 |
| Height (mm) | 10 |
| Warranty Terms | |
| Warranty | 2 years |
| Other Information | |
| Certifications | CE |
| Product Color | White |
| Material | Plastic / Metal |
| More | |
| Weight | 73g |
| Installation Depth | 20mm |
| Amperage | 10A |
Lees meer
Product FAQs
What is the delivery time of my order?
Orders placed on weekdays before 3:00 PM will, in most cases, be delivered the next business day. The exact delivery time is stated with the product.
Can I get advice on choosing the right lighting?
Yes, of course. Our team will be happy to help you choose the right LED lighting and electrical accessories for your project. Please contact us at 0172 – 729 008 or info@verlichtinggroothandel.nl.
Do you also supply business clients and installers?
Yes, we supply to both private and business customers, including installers and companies. For larger quantities or projects, you can always contact us for advice.
What is this LC-Light cross switch white used for?
This intermediate switch is used to operate one light from three or more different locations, for example, in hallways, stairwells or large rooms.
Should I combine this intermediate switch with toggle switches?
Yes, a cross switch is normally used in combination with two-way switches to switch lighting from three or more points.
Is this cross switch suitable for damp rooms?
This switch has an IP20 rating and is intended for dry indoor areas. For damp rooms, you should check whether the switchgear is suitable for that application.
