INLINE ZIGBEE DIMMER | 250W

Product Description

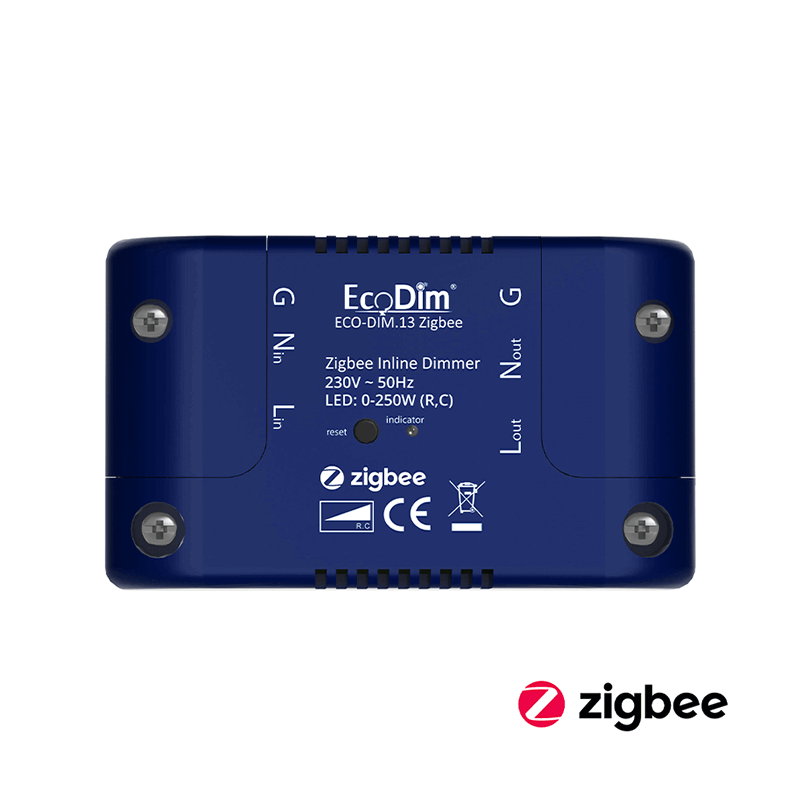

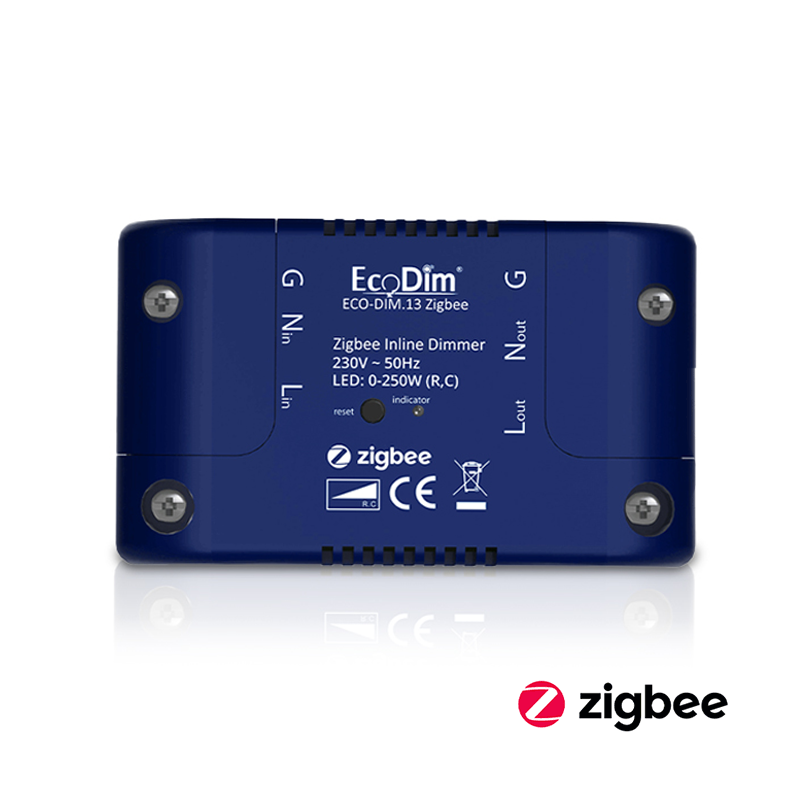

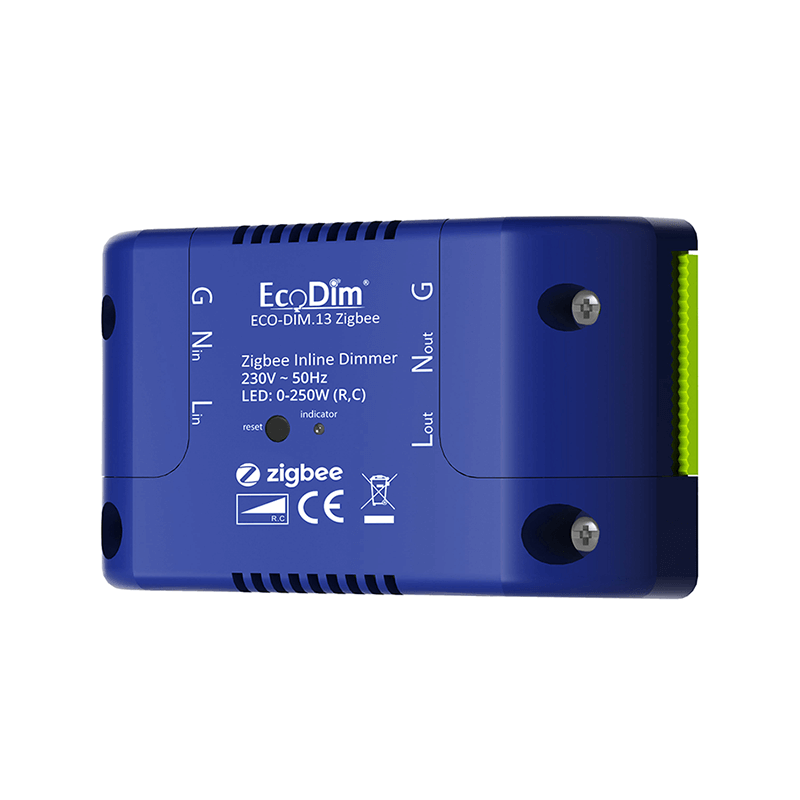

The Inline Zigbee Dimmer 250W is a smart and compact dimmer module for wirelessly and silently dimming LED lighting. This dimmer is ideal for installation above ceilings, behind switches, or in other places where a visible wall dimmer is not desired. Within the Zigbee Dimmers collection, this ECO-DIM.13 Zigbee is a strong choice for smart homes, offices, and project installations.

This inline dimmer operates on 220-240V AC and supports 0-250W LED lighting via phase-cut dimming. The dimmer is suitable for Zigbee 3.0 systems and can be paired with various smart home platforms, such as Philips Hue, Homey, Google Assistant/Home, Amazon Alexa, SmartThings, and other compatible systems. For broader smart home applications, you can combine this dimmer with products from Smart Home.

Thanks to its compact dimensions of 79 x 47 mm and an installation depth of approximately 26 mm, this dimmer is suitable for mounting in smaller spaces. The dimmer is designed for silent light control and offers MIN and MAX settings to fine-tune dimming performance to the connected lamps. This ensures stable light output and minimizes flickering.

This Zigbee inline dimmer is ideal for customers who want to make existing lighting smart without changing the wall finish. For a WiFi variant, you can look at the Inline Dimmer WiFi 250W. For a non-smart built-in solution, the LED Dimmer Built-in Module 0-250W RLC is a suitable option.

Smart Zigbee 3.0 control

With Zigbee 3.0, the lighting can be paired with compatible gateways and smart home systems. This enables app control, scenes, automations, and voice control.

Hidden inline installation

The dimmer can be neatly concealed above ceilings or behind switches. This keeps the visible wall finish sleek and minimalistic.

Silent dimming with phase-cut

The phase-cut dimming technology ensures silent and stable dimming performance with suitable LED lighting.

Specifications

• Product type: Inline Zigbee dimmer Model: ECO-DIM.13 Zigbee Wattage LED: 0-250 Watt Voltage: 220-240V AC Frequency: 50/60 Hz Dimmer type: Phase-cut Protocol: Zigbee 3.0 IP rating: IP20 Length: 79 mm Width: 47 mm Installation depth: 26 mm Material: Plastic Warranty: 2 years Application: Smart home installations, ceilings, junction boxes, homes, offices, hotels, and dry indoor spaces

Important installation note

The Inline Zigbee Dimmer 250W is intended for dry indoor spaces. Before installation, check whether the connected LED lamps are dimmable and suitable for phase-cut dimming. For smart control, a compatible Zigbee gateway or smart home environment is required.

For a complete installation, this dimmer can be combined with Zigbee Dimmers, suitable Dimmable LED lamps and other products within Smart Home.

Advantages

• Inline Zigbee dimmer Suitable for 0-250W LED Zigbee 3.0 support Silent dimming Phase-cut 220-240V AC connection Compatible with various smart home systems App control possible Voice control possible with compatible systems MIN and MAX setting Compact size of 79 x 47 mm Installation depth of 26 mm IP20 for dry indoor spaces Ideal for hidden mounting 2-year warranty

Perfect for

• Smart home installations Zigbee systems Philips Hue applications Homey installations Living rooms Bedrooms Offices Hotels Ceiling installations Hidden dimmer modules Renovation projects New construction projects Dimmable LED lamps LED spotlights Smart lighting control
