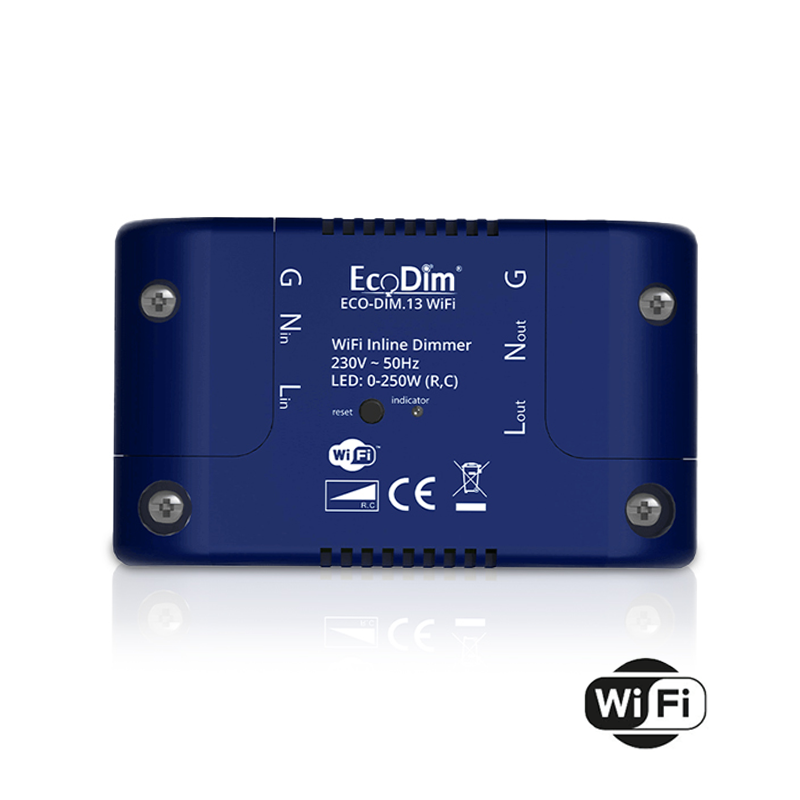

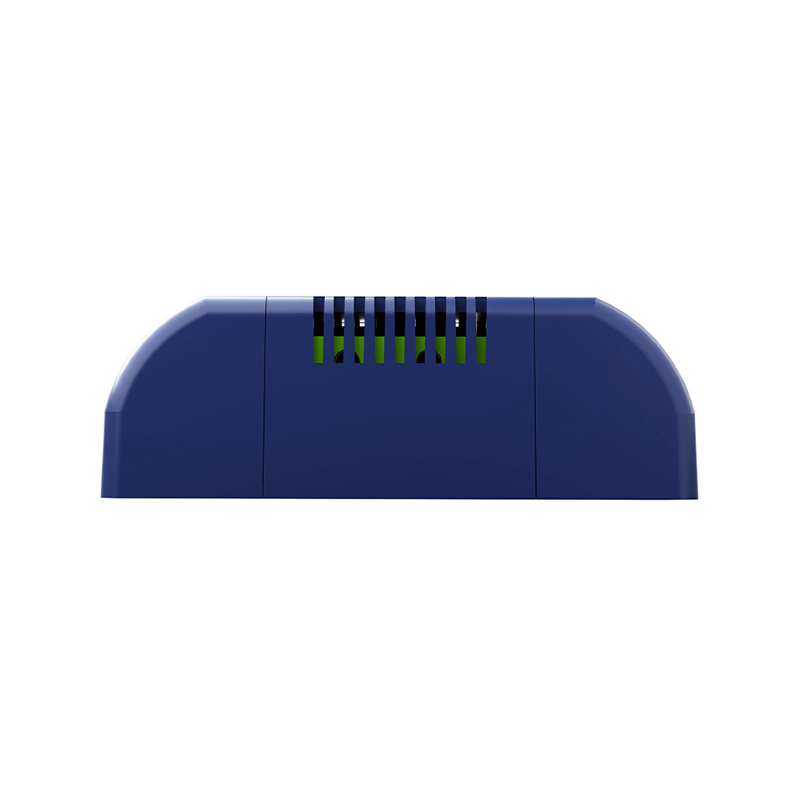

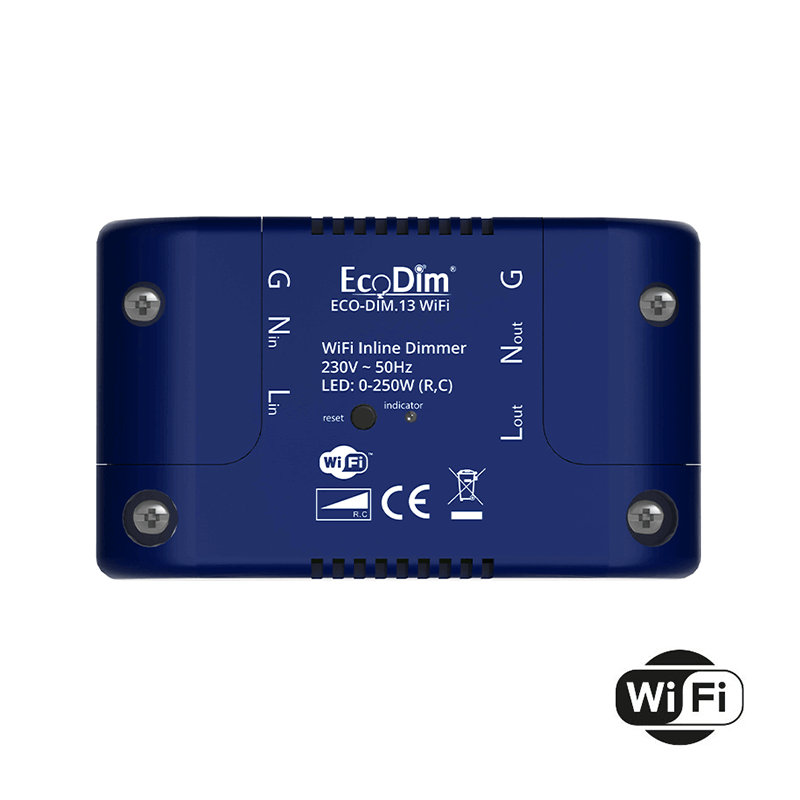

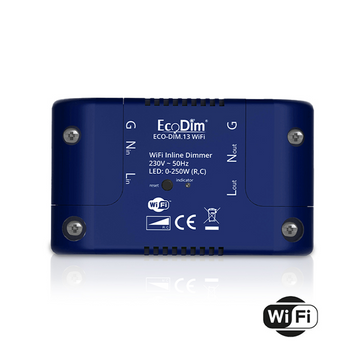

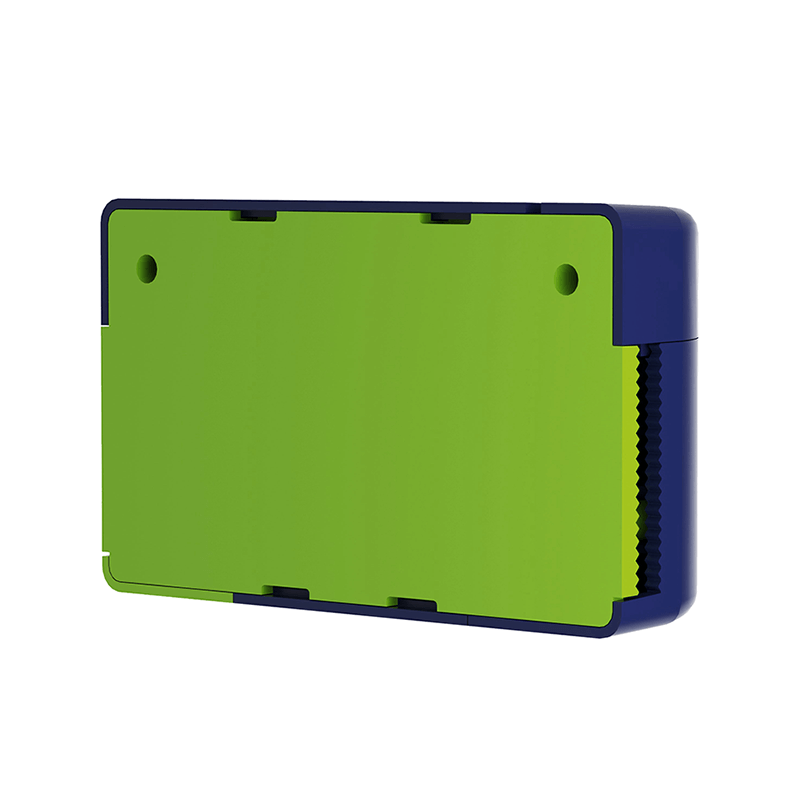

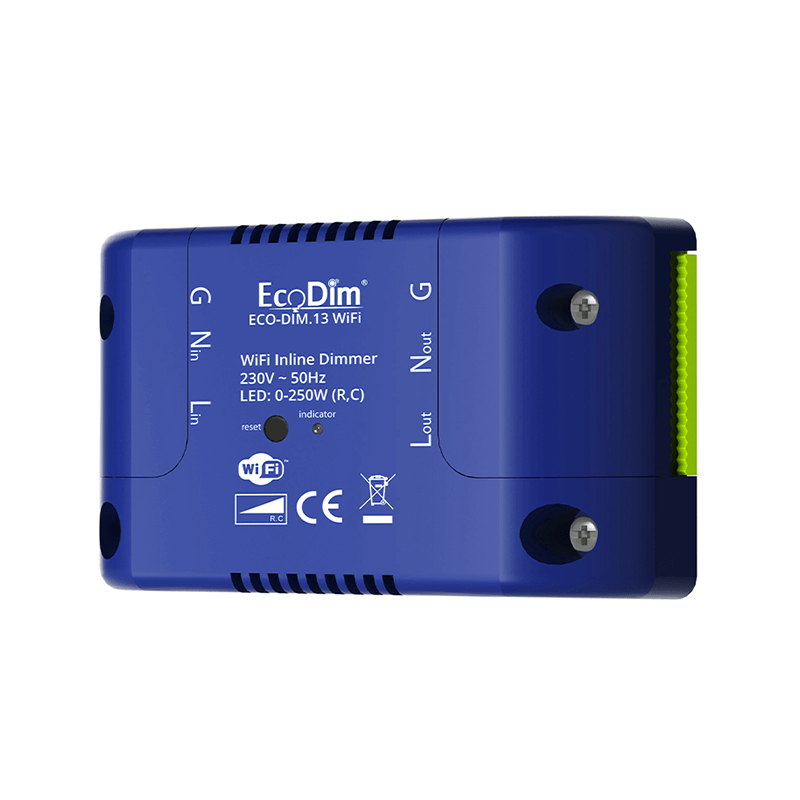

INLINE DIMMER | WIFI | 250W

Product Description

The Inline Dimmer WiFi 250W is a smart and compact LED dimmer that allows you to wirelessly control lighting via WiFi. This dimmer is ideal for situations where lighting needs to be made smart without a visible wall dimmer, for example, above ceilings, behind switches, or in compact installation spaces. Within the collection of Smart Dimmers, this ECO-DIM.13 WiFi is a practical choice for homes, offices, and smart renovation projects.

This WiFi inline dimmer operates on 230V AC and supports 0-250W LED lighting via phase-cut dimming. The dimmer offers silent dimming performance and is suitable for LED lamps, incandescent lamps, halogen lamps, and low-voltage lamps with a suitable phase-cut transformer. For compatible light sources, you can combine this dimmer with Dimmable LED lamps and LED spots.

Thanks to WiFi control, the lighting can be linked to various smart home apps and systems. The dimmer supports Google Assistant/Home and Amazon Alexa, among others, enabling voice control when the installation is correctly linked. App control, scenes, and schedules can also be applied depending on the app used.

With a compact size of 79 x 47 mm and an installation depth of approximately 26 mm, this dimmer is suitable for discrete mounting in dry indoor spaces. For a Zigbee alternative, you can look at the Inline Zigbee Dimmer 250W. For a wired compact module, the LED Dimmer Built-in Module 0-250W RLC is a relevant option.

WiFi smart control

With WiFi, you can control the lighting via compatible apps. This enables smart functions such as schedules, scenes, and voice control.

Hidden mounting

This inline dimmer can be neatly concealed, keeping the visible wall finish sleek.

Silent phase-cut dimming

The dimmer works with phase-cut dimming and ensures silent, stable dimming performance with suitable dimmable LED lighting.

Specifications

• Product type: Inline WiFi dimmer Model: ECO-DIM.13 WiFi Wattage LED: 0-250 Watt Voltage: 230V AC Frequency: 50/60 Hz Dimmer type: Phase-cut IP rating: IP20 Length: 79 mm Width: 47 mm Installation depth: 26 mm Material: Plastic Suitable lamps: LED 230V, incandescent lamp, halogen lamp, and low-voltage lamp with suitable transformer Warranty: 2 years Application: Smart home installations, ceilings, flush-mounted boxes, homes, offices, hotels, and dry indoor spaces

Important installation note

The Inline Dimmer WiFi 250W is intended for dry indoor spaces with IP20 application. Before installation, check whether the connected lamps are dimmable and suitable for phase-cut dimming. For smart control, a stable 2.4 GHz WiFi connection and a compatible app or smart home environment are required.

For a complete smart installation, this dimmer can be combined with Smart Dimmers, suitable Dimmable LED lamps and products from Smart Home.

Advantages

• Inline WiFi dimmer Suitable for 0-250W LED Silent dimming Phase-cut 230V AC connection Smart app control possible Voice control possible with compatible systems Suitable for Google Assistant/Home Suitable for Amazon Alexa MIN and MAX setting Compact size of 79 x 47 mm Installation depth of 26 mm IP20 for dry indoor spaces Ideal for hidden mounting 2-year warranty

Perfect for

• Smart home installations WiFi light control Living rooms Bedrooms Offices Hotels Ceiling installations Hidden dim modules Renovation projects New construction projects Dimmable LED lamps LED spots App control Voice control Smart lighting
