24V DRIVER | MEANWELL | IP65 | 320W
Regular price
€154,44
excl btw
Sale price
Regular price
€345,16
€154,44
excl btw
-55%
Unit price
Save 55%
op voorraad
(35)
Grote aantallen nodig ?
Vraag offerte aan
✓
Voor 15:00 besteld morgen in huis
✓
Gratis advies via 0172 - 729 008
✓
Gratis verzendkosten boven de €125
✓
Klanten geven ons een 4.5/5 op Trustpilot
✓
Retourneren binnen 30 dagen
Achteraf betalen met Klarna
Meer dan 5.000 zakelijke klanten kiezen voor
Verlichting Groothandel
Advies nodig over de juiste verlichting of een compleet lichtplan?
>Bekijk de mogelijkheden
Advies nodig?
Twijfel je over de juiste verlichting of heb je een lichtplan nodig?
Wij helpen je met persoonlijk advies en een passende, efficiënte oplossing voor elke ruimte of elk project.
Verlichting Groothandel
📞 0172 – 729 008
✉️
info@verlichtinggroothandel.nl
💬
WhatsApp ons direct
Product Description
Product Description

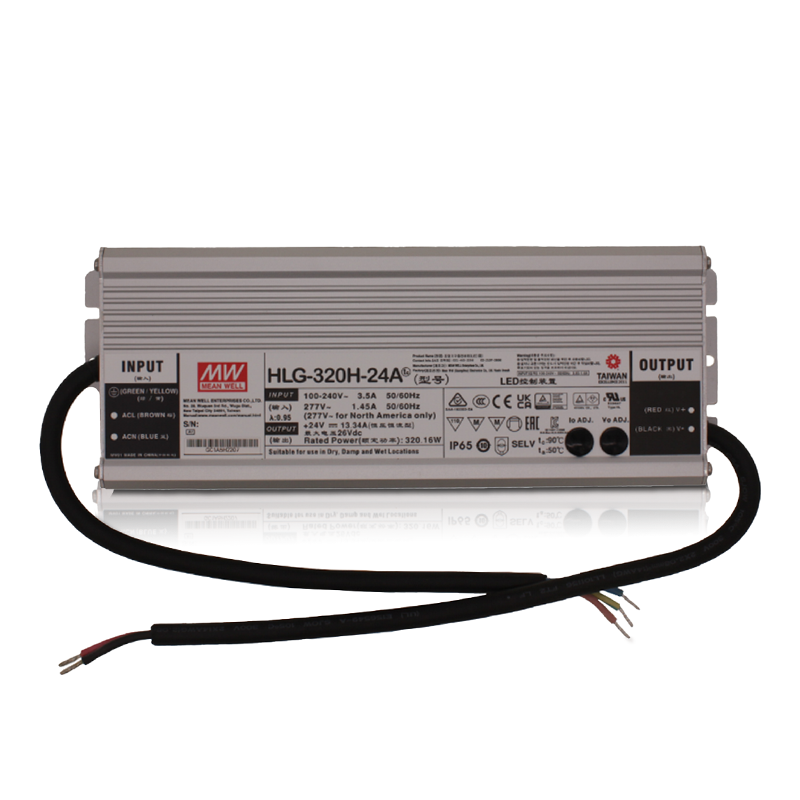

The 24V Driver Meanwell IP65 320W is a powerful LED power supply for 24V LED installations with a high total power output. Thanks to its 320W power, this driver is suitable for larger LED strip projects, commercial lighting lines, facade lighting, advertising lighting, and professional installations. The IP65 rating makes the driver suitable for applications where protection against dust and splashing water is important.
Meanwell drivers are known as reliable power supplies for LED applications where stability and durability are important. This 24V 320W version is particularly suitable when multiple meters of LED strip or multiple 24V LED components need to be powered safely. Within the collection of LED drivers, this Meanwell power supply is a powerful choice for larger LED projects.
This driver can be combined with LED STRIPS, LED strip Controllers and Outdoor lighting. For cabling and mounting, LED strip cables are relevant.
For other 24V power supplies, you can look at the 24V Driver Meanwell IP65 200W, 24V Driver Meanwell IP20 75W and Power Adapter 24V 200W.
24V Meanwell driver
This power supply is suitable for compatible 24V LED installations.
320W high power
Ideal for larger LED strip projects and professional applications.
IP65 protection
Suitable for installations where protection against dust and splashing water is desired.
Specifications
- Product type: LED driver / power supply Brand: Meanwell Output voltage: 24V Power: 320W Protection class: IP65 Suitable for: Compatible 24V LED strips and LED lighting Application: Large LED strip installations, facade lighting, advertising lighting, outdoor projects and commercial spaces Recommended combination: LED strips, LED strip controllers, LED strip cables and outdoor lighting
Important installation note
Before installation, check whether your LED lighting is suitable for 24V and whether the total power remains below the maximum 320W. Take into account sufficient power reserve, correct cable diameter, polarity, and ventilation around the driver. Always use suitable connection materials for outdoor mounting.
For a complete 24V LED strip installation, you can combine this driver with LED Strip cables, Installation material and LED Installation service. If you need less power, the 24V Driver Meanwell IP65 200W is a suitable choice.
Advantages
- Meanwell LED driver 24V output voltage 320W power IP65 protection Suitable for large LED projects Stable LED power supply Suitable for LED strips Suitable for facade lighting Suitable for advertising lighting Combinable with controllers Professional application Reliable quality Suitable for outdoor projects Useful for installers Powerful power supply
Perfect for
- 24V LED strips Large LED strip installations Facade lighting Advertising lighting Light lines Shops Showrooms Hospitality Outdoor projects Commercial lighting Professional LED systems Displays Architectural lighting Installers Project lighting
| Technical Specifications | |
| Wattage | 320 Watt |
| Hertz | 50/60 Hz |
| IP Rating | IP65 |

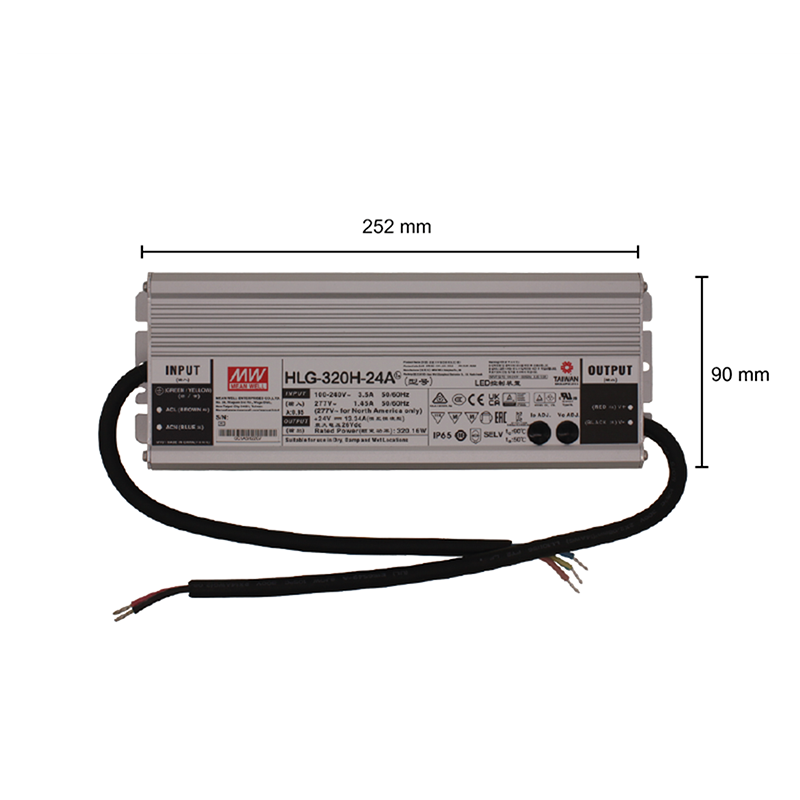

| Dimensions | |
| Length (mm) | 252 |
| Width (mm) | 90 |
| Height (mm) | 43.8 |
| Driver Specifications | |
| Dimmable | No |
| Output Voltage | 24V(DC) |
| Output Amperage | 1334mA |
| Warranty Provisions | |
| Warranty | 7 years |
| Operating Temperature | '-40°C to +90°C |
| Packaging Information | |
| Length individual box (mm) | 340 |
| Width individual box (mm) | 130 |
| Height individual box (mm) | 60 |
| Length master carton (mm) | 350 |
| Width master carton (mm) | 270 |
| Height master carton (mm) | 260 |
| Weight Master Carton (kg) | 15 |
| Quantity per master carton | 8 pieces |
| Other Information | |
| Certifications | CCC|CE|EAC|UKCA |
| Product Color | Silver |
| More | |
| Input Voltage | 220-240V(AC) |
| Input Amperage | 3500mA |
| Weight | 1.88 kg |
Lees meer
Product FAQs
What is the delivery time of my order?
Orders placed on weekdays before 3:00 PM will, in most cases, be delivered the next business day. The exact delivery time is stated with the product.
Can I get advice on choosing the right lighting?
Yes, of course. Our team will be happy to help you choose the right LED lighting and electrical accessories for your project. Please contact us at 0172 – 729 008 or info@verlichtinggroothandel.nl.
Do you also supply business clients and installers?
Yes, we supply to both private and business customers, including installers and companies. For larger quantities or projects, you can always contact us for advice.
What is this Meanwell 24V 320W driver suitable for?
This driver is suitable for compatible 24V LED installations with a total power output of up to 320W.
Does this driver have IP65 protection?
Yes, this model has IP65 protection against dust and splashing water.
Do I need to calculate the total power?
Yes, always calculate the total wattage of the connected LED lighting before using the driver.
