1-10V DIMMER | ION INDUSTRIES

Product Description

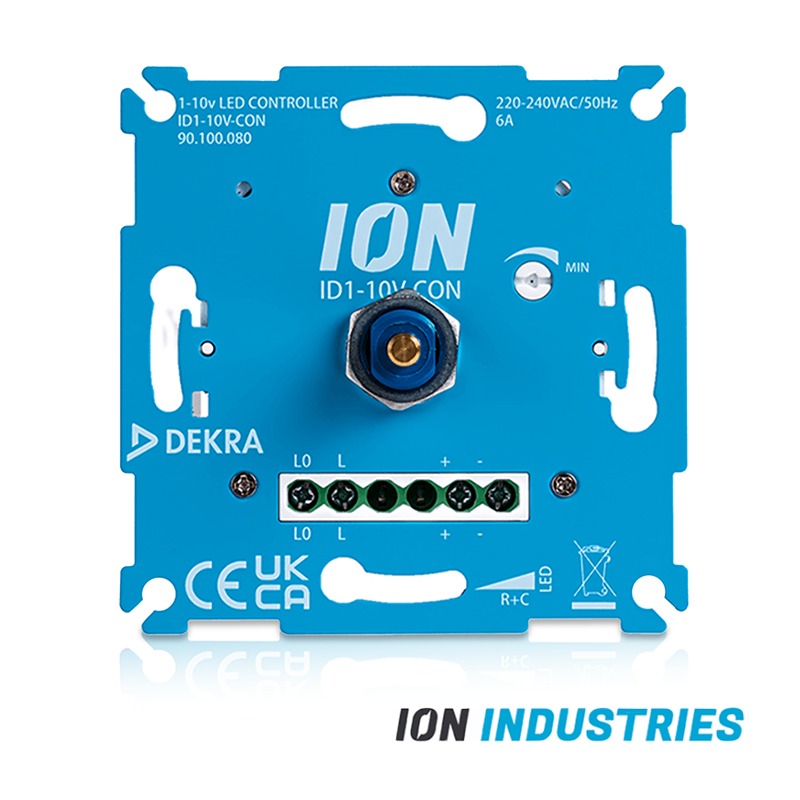

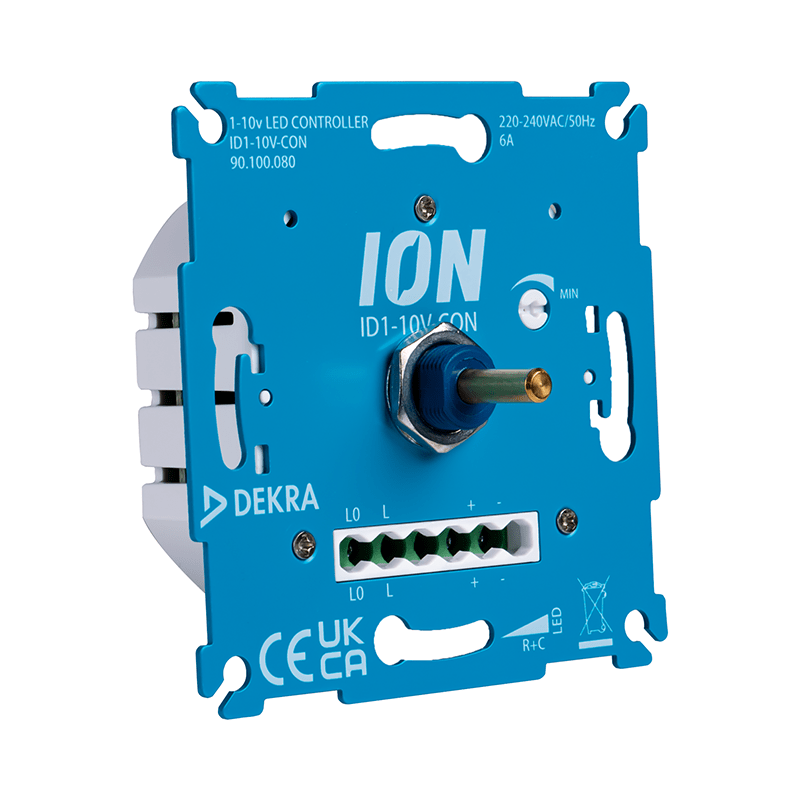

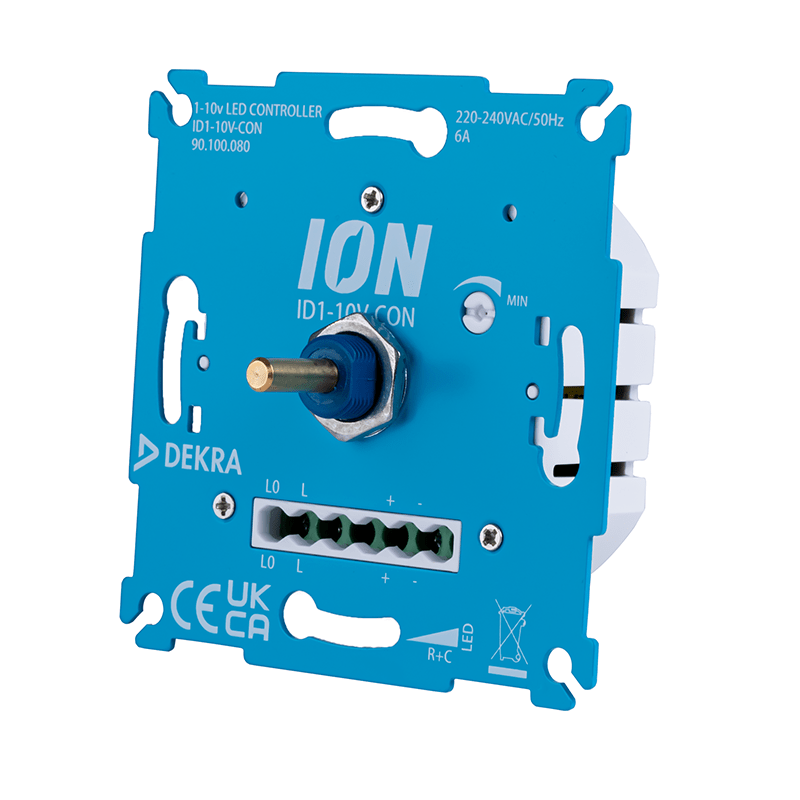

The 1-10V Dimmer Ion Industries is a professional built-in dimmer for controlling 1-10V LED drivers and high-wattage LED lighting. This dimmer is ideal for larger spaces such as offices, schools, industrial halls, warehouses, shops, and commercial projects where lighting needs to be controlled accurately and reliably. Within the collection of 1-10V Dimmers, this Ion Industries dimmer is a strong choice for project-based light control.

This dimmer works with a 1-10V control signal and dims lighting from 10% to 100%. It is suitable for use with 1-10V drivers, where the final power output depends on the connected driver. Due to its quiet and stable operation, this dimmer is suitable for professional environments where comfort, efficiency, and reliability are important. For suitable drivers, please check our Drivers collection, and for business lighting, see our LED panels.

The dimmer features a Min setting that allows precise adjustment of the minimum voltage and light level. This enables you to adapt the lighting to the space and application. The dimmer is equipped with protection against short circuits, overloads, and thermal issues, which is important for long-term professional use.

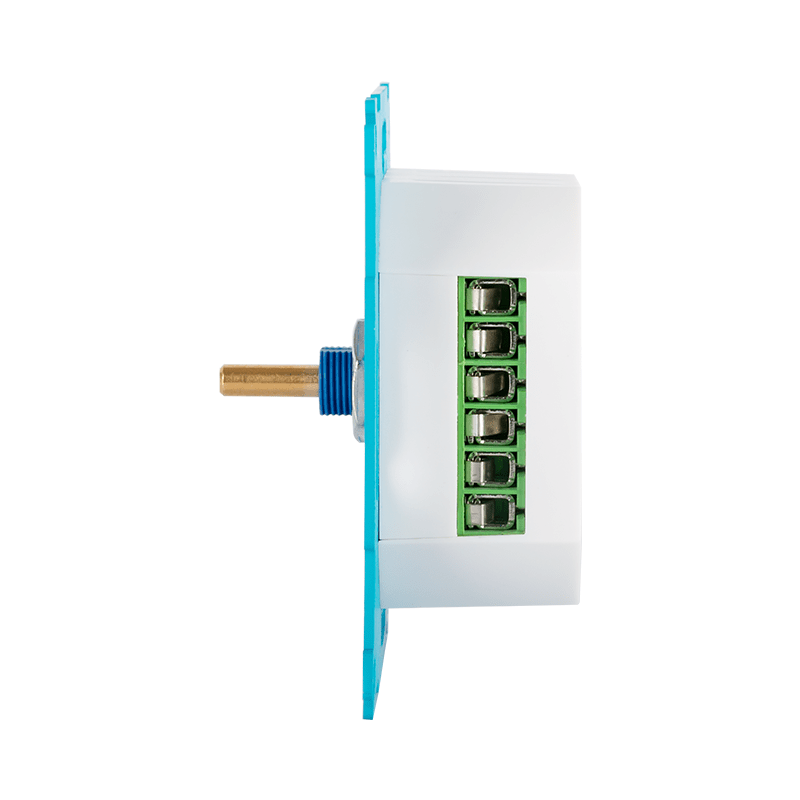

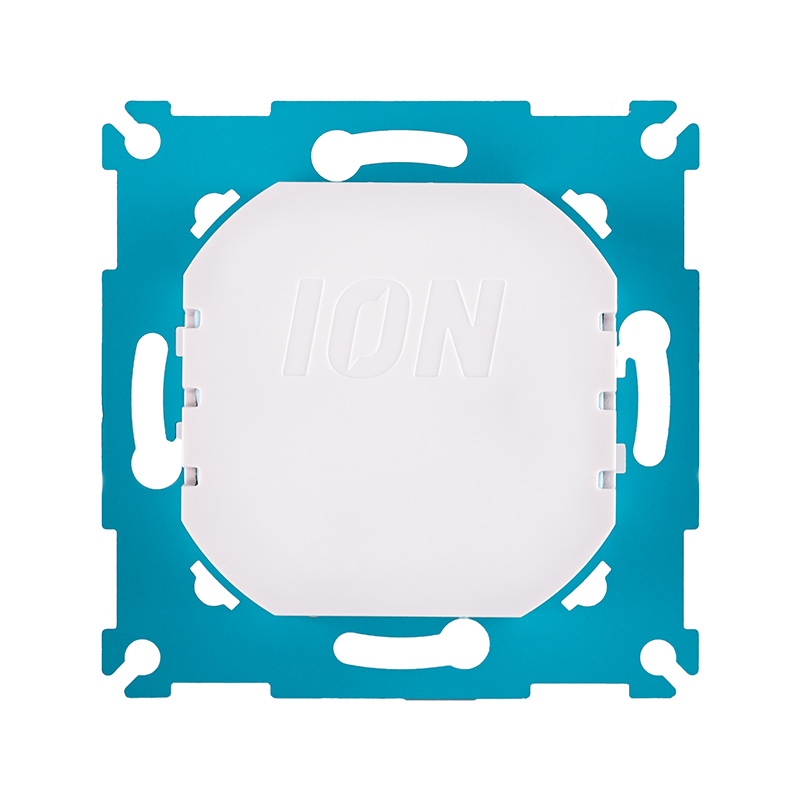

With standard dimensions of 71 x 71 x 23 mm and an installation depth of 23 mm, this dimmer fits many installations. Thanks to the included adapter set, it can be combined with many cover frames from well-known brands such as Gira, Busch-Jaeger, JUNG, Merten by Schneider, PEHA, Berker, Q-Link, Kopp, and Niko. For a comparable 1-10V solution, you can look at the LED Dimmer 1-10V 50mA.

Professional 1-10V Control

This dimmer is specifically designed for 1-10V drivers and professional LED installations where lighting needs to be controlled stably and steplessly.

Dimming from 10% to 100%

With the 1-10V signal, the lighting can be dimmed down to approximately 10% brightness and fully adjusted up to 100%.

Wide compatibility with cover materials

Thanks to the adapter set, the dimmer fits many cover frames from well-known brands, making it easy to integrate into various interiors.

Specifications

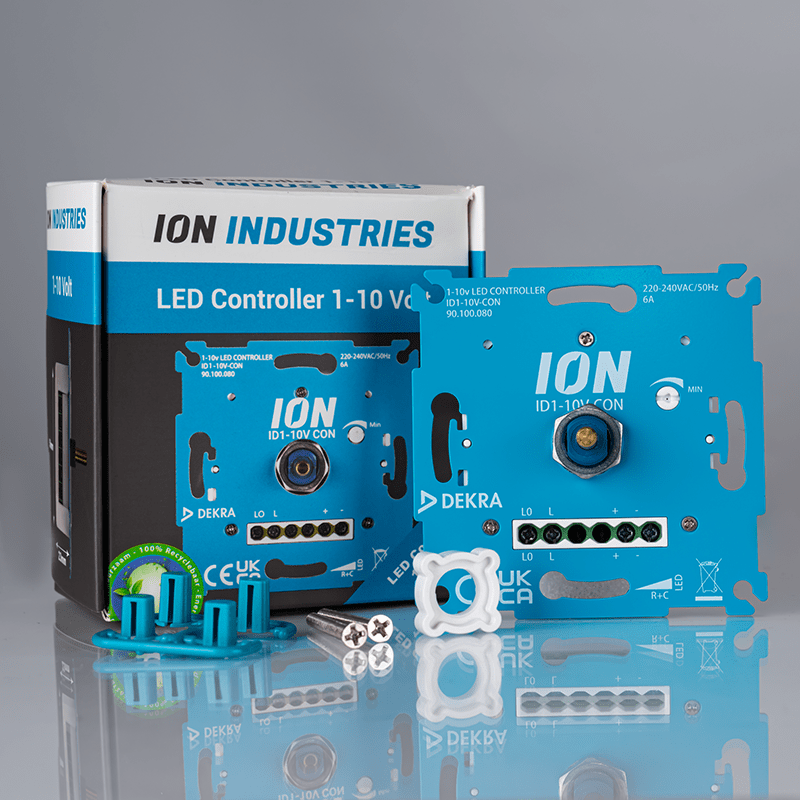

• Product type: 1-10V LED dimmer Brand: Ion Industries Voltage: 1-10V control Input voltage: 230V AC Frequency: 50/60 Hz Dimming range: 10-100% Dimmer type: Phase-cut / 1-10V control IP rating: IP20 Length: 71 mm Width: 23 mm Height: 71 mm Installation depth: 23 mm Material: Plastic Maximum load: 6A Minimum load: 0.3VA Power consumption without load: <0.3W Package contents: 1-10V LED controller, manual, and adapter set Warranty: 5 years Application: Offices, schools, warehouses, industrial halls, shops, showrooms, and dry indoor spaces

Important Installation Note

The 1-10V Dimmer Ion Industries is intended for dimmable 1-10V drivers. Before installation, check if the connected driver is suitable for 1-10V control and if the load is within specifications. Use the dimmer only in dry indoor areas with an IP20 application.

For a complete installation, this dimmer can be combined with 1-10V Dimmers, suitable Drivers and project lighting from LED panels.

Advantages

• 1-10V dimmer from Ion Industries Dims from 10% to 100% Suitable for 1-10V drivers 230V AC input 50/60 Hz frequency Min setting via potentiometer Quiet operation Short circuit protection Overload protection Thermal protection Installation depth of 23 mm Adapter set included Fits many cover frames IP20 for dry indoor spaces 5-year warranty

Perfect for

• 1-10V drivers Offices Schools Warehouses Industrial halls Shops Showrooms Meeting rooms Commercial lighting LED panels Project lighting Renovation projects New construction projects Professional installations Dry indoor spaces
