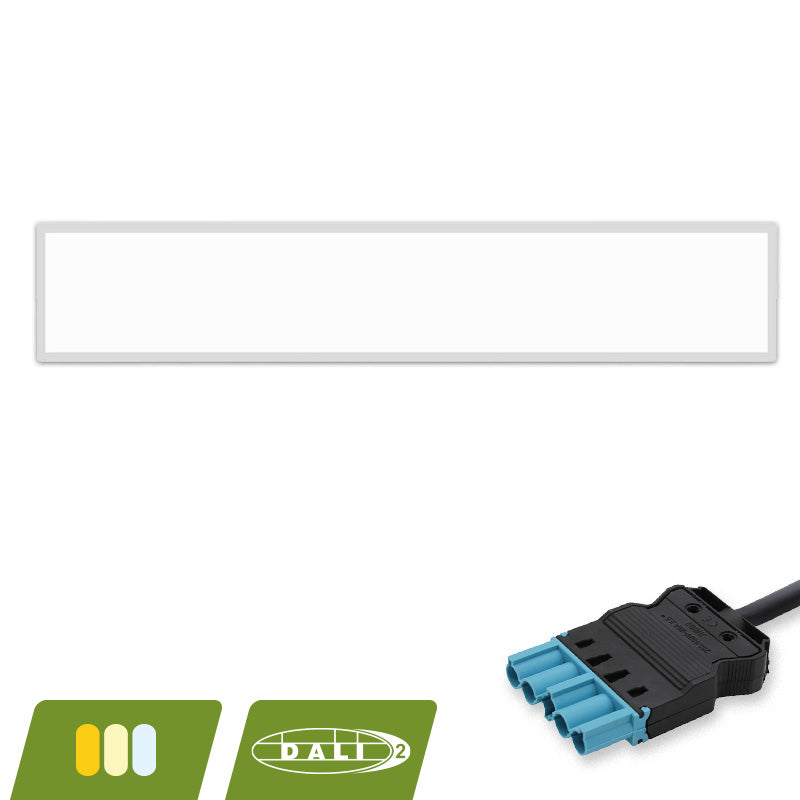

BACK-LIT LED PANEL | PONTUS | 150X30CM | 30W | DALI | CCT-SWITCH | WITH 5-SWP CABLE

Smart Dimmable and Maximum Light Coverage: Back-lit LED Panel for System Ceiling Lighting

Are you looking for powerful and smart system ceiling lighting that you can fully control and easily install? The Back-lit LED panel Pontus, sized 150x30 cm with DALI and 5-SWP cable, offers the ideal solution. This high-quality light panel combines a sleek design with advanced dimming options and broad, even light distribution.

Even Lighting Thanks to Back-lit Technology

This light panel uses back-lit technology, where the LEDs are positioned at the rear. This creates a very even light distribution without shadows or dark areas. With a power of 30 watts and a light output of 3750 lumens, this panel delivers bright and consistent light. The efficiency of 125 lumens per watt ensures an energy-efficient solution. Thanks to the UGR value of <19, glare is limited, and the light remains comfortable for daily use.

Key light features:
-Wattage: 30W
-Light output: 3750 lumens
-Lumen efficiency: 125 lm/W
-UGR: <19
-CRI: >80Ra for natural color rendering

Flexible Light Color with CCT-switch

This light panel features a CCT-switch, allowing you to easily switch between different light colors:
-3000K (warm white)
-4000K (neutral white)
-6000K (daylight)

This allows you to perfectly adjust the system ceiling lighting to any space and application.

DALI Dimmable for Smart Light Control

The panel comes with a Boke DALI driver and is fully DALI dimmable. This allows for easy integration of the light panel into a professional light management system.

Advantages of DALI:
-Centralized and precise light control
-Individual and group control
-Energy-efficient dimming
-Ideal for offices and smart buildings

Durable and Robust Design

The Back-lit LED panel Pontus is constructed from high-quality materials that ensure stable and reliable operation:
-Aluminum frame for optimal heat dissipation
-Iron backplate for extra sturdiness
-PS diffuser for even light distribution

The integrated SMD2835 LEDs ensure consistent performance and stable light quality.

Professional Installation with 5-SWP Cable

This light panel comes with a 5-SWP cable, ensuring quick and neat installation. Ideal for projects where reliability and efficiency are key.

Advantages of this light panel:
-Includes Boke DALI driver
-5-SWP cable for professional connection
-Back-lit technology for even light distribution
-Suitable for system ceiling lighting (150 x 30 cm)

Ideal for Various Applications

This system ceiling lighting is perfect for:
-Offices and open workspaces
-Large rooms and wide ceiling areas
-Schools and educational institutions
-Retail and commercial environments

Thanks to its larger size, this light panel provides broad and even illumination of the space.

Technical Specifications at a Glance

-Dimensions: 150 x 30 cm
-IP rating: IP20
-LED type: SMD2835
-Includes: Boke DALI driver and 5-SWP cable

The Ideal Solution for Smart and Efficient Lighting

With the Back-lit LED panel Pontus, you choose modern and energy-efficient system ceiling lighting with maximum control. Thanks to its even light distribution, DALI dimmability, and professional installation, this light panel is perfect for any modern work environment. Maximum coverage, smartly controlled, and comfortably lit.
