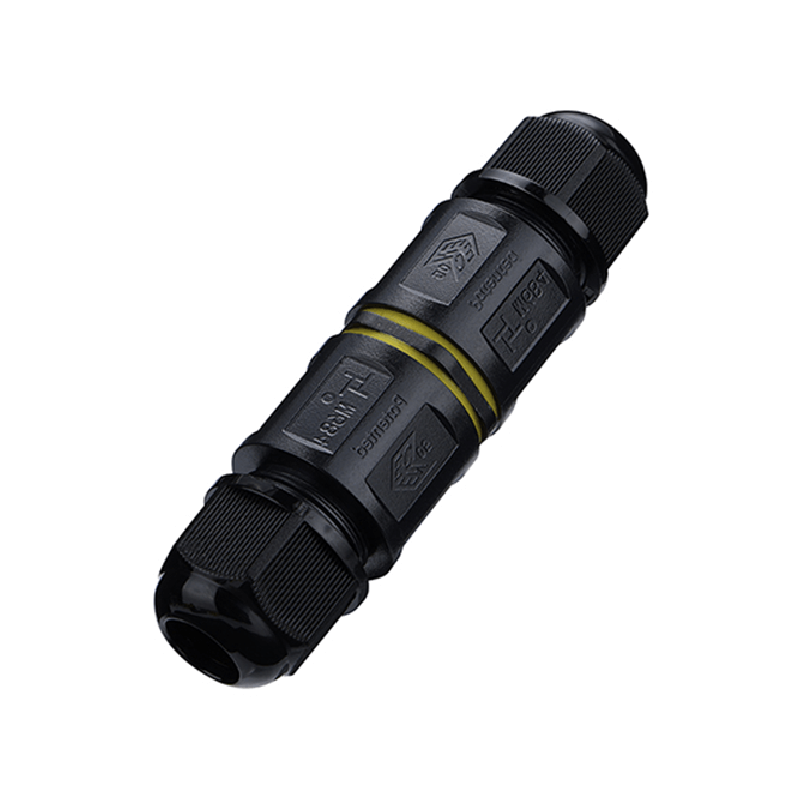

3 PIN | I QUICK WATERPROOF CONNECTOR | IP68 | 4-11MM
Regular price
€3,06
excl btw
Sale price
Regular price
€4,93
€3,06
excl btw
-38%
Unit price
Save 38%
op voorraad
(1430)
Grote aantallen nodig ?
Vraag offerte aan
✓
Voor 15:00 besteld morgen in huis
✓
Gratis advies via 0172 - 729 008
✓
Gratis verzendkosten boven de €125
✓
Klanten geven ons een 4.5/5 op Trustpilot
✓
Retourneren binnen 30 dagen
Achteraf betalen met Klarna
Meer dan 5.000 zakelijke klanten kiezen voor
Verlichting Groothandel
Advies nodig over de juiste verlichting of een compleet lichtplan?
>Bekijk de mogelijkheden
Advies nodig?
Twijfel je over de juiste verlichting of heb je een lichtplan nodig?
Wij helpen je met persoonlijk advies en een passende, efficiënte oplossing voor elke ruimte of elk project.
Verlichting Groothandel
📞 0172 – 729 008
✉️
info@verlichtinggroothandel.nl
💬
WhatsApp ons direct
Product Description
- 4-11MM
- 450V
- 3 PIN
- IP68
- 1 year warranty
Waterproof IP68 Connector – Simple Cable Connections up to 450V (AC)
Looking for a convenient and reliable way to create waterproof cable connections? Then our IP68 connector with quick connector is exactly what you need. This connector is perfect for both above- and below-ground applications and can operate at voltages up to 450V (AC). Ideal for a variety of applications, from garden lighting to industrial installations.
User-friendly Quick Connector System
What makes this connector truly special is its clever quick-connect system. You no longer need to use screws to connect your cables. Thanks to the threaded connector and integrated click system, you can attach the cables in no time. This not only saves you a lot of time but also a lot of hassle. Perfect for both professionals and DIYers.
Flexible Connection Options
This IP68 connector has a 3-pin connection and is suitable for cables with a diameter of 4 mm to 11 mm. You'll receive rubber seals for cables from 4 mm to 8 mm and from 6 mm to 11 mm, so you can always use the right size. This makes installation extra easy and flexible.
Robust and Durable Housing

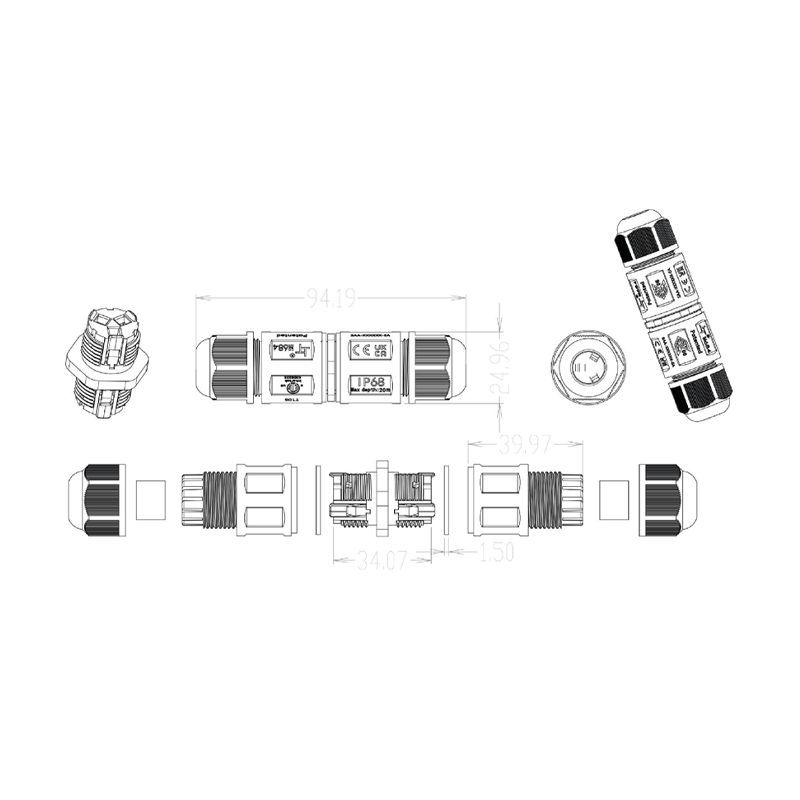

The connector's sturdy housing protects your cables from moisture, sand, and other external influences. You're assured of a properly functioning product, regardless of the weather. Measuring 94 x 25 x 25 mm, the connector is compact and easy to use in various applications.
Easy Installation Without Tools

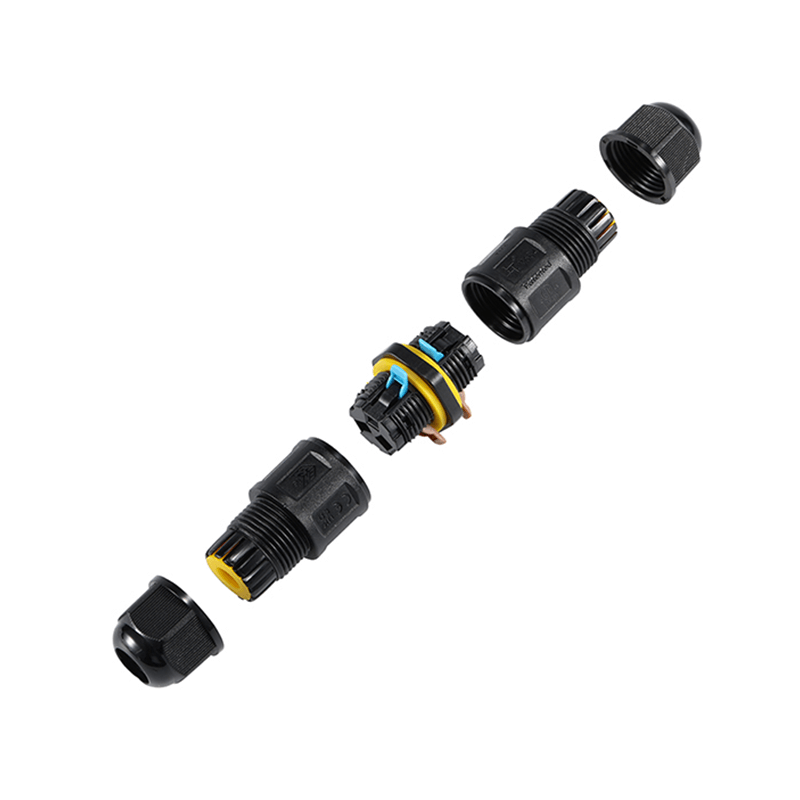

With the clever threaded connection system, connecting cables is a breeze. The glands on both sides of the connector are easy to loosen, so you don't need any special tools. After connecting, simply retighten the glands to securely fasten the cables. This makes the process not only quick but also very user-friendly.
Conclusion
The Quick Waterproof Connector is an excellent choice for anyone looking to create safe and reliable cable connections. With its easy installation, robust housing, and flexible connection options, this connector is ideal for all your projects. Make it easy on yourself and trust the quality of this innovative solution.
| Technical Specifications | |
| Voltage | 450V (AC) |
| IP Rating | IP68 |
| Dimensions | |
| Length (mm) | 94 |
| Width (mm) | 25 |
| Height (mm) | 25 |
| Diameter (mm) | Ø25 |
| Warranty Information | |
| Warranty | 1 year |
| Packaging Information | |
| Outer carton length (mm) | 380 |
| Outer carton width (mm) | 310 |
| Outer carton height (mm) | 300 |
| Outer carton weight (kg) | 8.2 |
| Quantity per outer carton | 200 pieces |
| Other Information | |
| Certifications | CB CE ENEC ETL RoHS UKCA |
| Product Color | Black |
| Material | Polyamide |
| Input Amps | 24000mA |
| Input Voltage | 450V (AC) |
| Weight | 0.04 kg |
| Amps | 24A |
Lees meer
Product FAQs
1. What is the delivery time of my order?
Orders placed on weekdays before 3:00 PM will, in most cases, be delivered the next business day. The exact delivery time is stated with the product.
2. Can I get advice on choosing the right lighting?
Yes, of course. Our team will be happy to help you choose the right LED lighting and electrical accessories for your project. Please contact us at 0172 – 729 008 or info@verlichtinggroothandel.nl.
3. Do you also deliver to business customers and installers?
Yes, we supply to both private and business customers, including installers and companies. For larger quantities or projects, you can always contact us for advice.
Waarvoor wordt deze 3-pin connector gebruikt?
Deze connector wordt gebruikt voor het waterdicht verbinden van 3-polige kabels.
Is deze connector geschikt voor buitengebruik?
Ja, dankzij de IP68 bescherming is deze connector geschikt voor buitengebruik en vochtige omgevingen.
Welke kabeldiameter past in deze connector?
Deze connector is geschikt voor kabels van 4 tot 11 mm.
