SIDE-LIT LED PANEL | 120X30CM | 36W | BLACK | CCT-SWITCH

Specifications

• Power: 36 watts
• Luminous flux: 3693 lumens (108 lumens per watt)
• Light color: adjustable via CCT switch (3000K, 4000K, 5000K)
• UGR value: less than 22
• CRI value: 85Ra
• Beam angle: 120 degrees
• Technology: side-lit
• Dimmable: optional with dimmable driver
• Includes: 1.5 meter cable with Euro plug and external driver
• Protection: IP22
• Lifespan: 50,000 burning hours
• Warranty: 5 years

Product description

The side-lit LED panel 120×30 centimeters is a modern and energy-efficient solution for bright and even lighting. Thanks to the clever placement of the LEDs on the sides of the panel, the light is distributed across the entire surface, ensuring an even and comfortable light output without shadows or dark zones.

With a thickness of only 9 millimeters, this panel is particularly thin and easy to install. It is suitable for various spaces such as offices, classrooms, corridors, shops, and warehouses.

The panel comes with an external non-dimmable driver and a 1.5-meter cable with a Euro plug. If desired, it can easily be made dimmable by using a suitable dimmable driver.

Efficient and sustainable

The side-lit LED panel delivers excellent performance with an efficiency of 108 lumens per watt. With a consumption of only 36 watts, it achieves a total light output of 3693 lumens. This makes it an excellent alternative to two traditional 36-watt fluorescent tubes.

Thanks to its long lifespan of 50,000 burning hours, you will enjoy reliable lighting for years without maintenance or replacement.

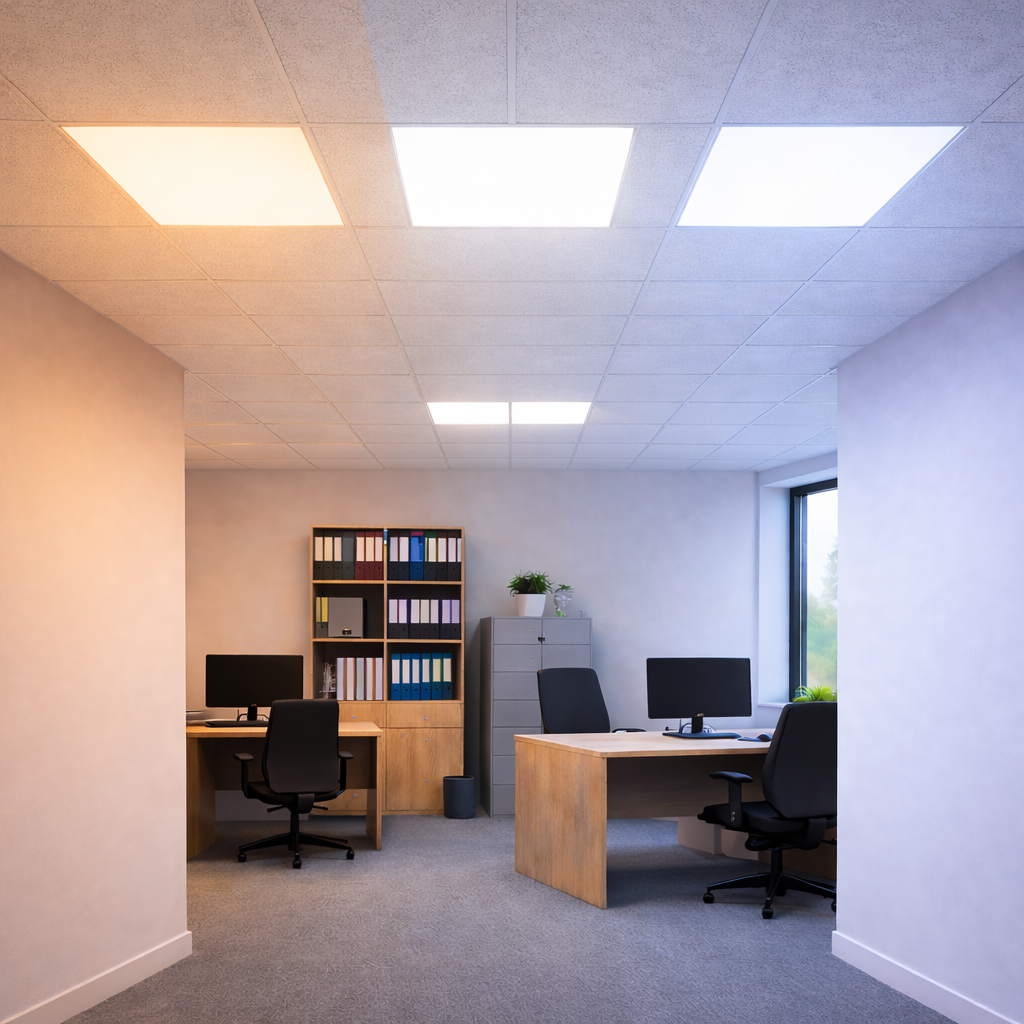

Adjustable light color with CCT technology

With the integrated CCT switch, you can easily choose the desired light color:

• 3000K: warm white, ideal for reception areas, changing rooms, and counters
• 4000K: neutral white, perfect for office spaces, classrooms, and showrooms
• 5000K: cool white, suitable for workshops, warehouses, and production environments

The low UGR value of less than 22 prevents glare, ensuring a pleasant working environment. The CRI value of 85 ensures accurate color rendering, and with the wide beam angle of 120 degrees, the panel illuminates large areas evenly.

Easy installation and professional finish

The panels are designed for recessed installation in system ceilings and provide a sleek, modern finish. The lightweight aluminum casing makes installation quick and effortless. The panel is suitable for various indoor environments thanks to its IP22 classification, which provides protection against dust and light moisture.

Reliability and warranty

The side-lit LED panel 120×30 centimeters comes with a 5-year warranty, highlighting the quality and durability of this product. This ensures a safe and long-term investment in modern lighting.

Advantages at a glance

• Slim design of only 9 millimeters thick
• Even light distribution through side-lit technology
• Adjustable light color with CCT switch
• Energy efficient with 108 lumens per watt
• Long lifespan of 50,000 burning hours
• Low glare due to UGR less than 22
• 5-year warranty

Conclusion

The side-lit LED panel 120×30 centimeters combines style, efficiency, and ease of use. Thanks to its adjustable light color, slim design, and long lifespan, this panel is a reliable choice for any professional space.
