RETROFIT TITAN | LED MODULE | 32W/40W/48W/56W | 120°

Name: RETROFIT TITAN | LED MODULE | 32W/40W/48W/56W | 120°
Brand: Verlichting Groothandel
SKU: 274488
Price: 79.74 EUR
Availability: InStock

€79,74 excl btw

~~€177,84~~

€79,74 excl btw

-55%

Save 55%

op voorraad (175)

5700K daglicht

4000K daglicht

Fabrikant Verlichtinggroothandel

Grote aantallen nodig ? Vraag offerte aan

Grote aantallen nodig ?

Vraag offerte aan

✓

Voor 15:00 besteld morgen in huis

✓

Gratis advies via 0172 - 729 008

✓

Gratis verzendkosten boven de €125

✓

Klanten geven ons een 4.5/5 op Trustpilot

✓

Retourneren binnen 30 dagen

Achteraf betalen met Klarna

Meer dan 5.000 zakelijke klanten kiezen voor Verlichting Groothandel

Advies nodig over de juiste verlichting of een compleet lichtplan? >Bekijk de mogelijkheden

RETROFIT TITAN | LED MODULE | 32W/40W/48W/56W | 120°

Product Description

32, 40, 48 or 56 Watt
155 lumens per watt
Non-dimmable
100,000 operating hours
5-year warranty

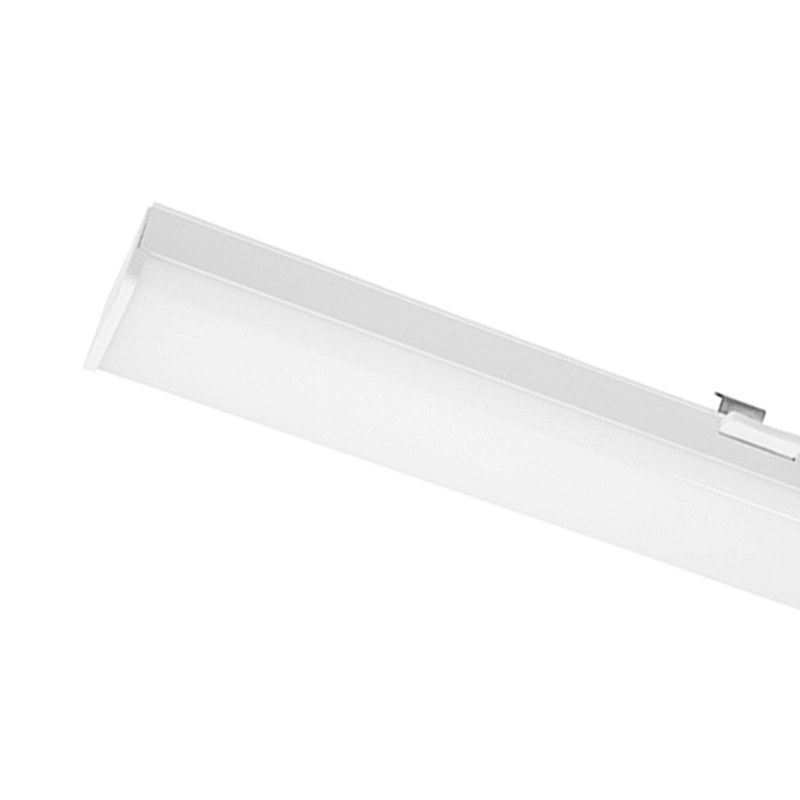

Titan LED Module for Trunking Systems

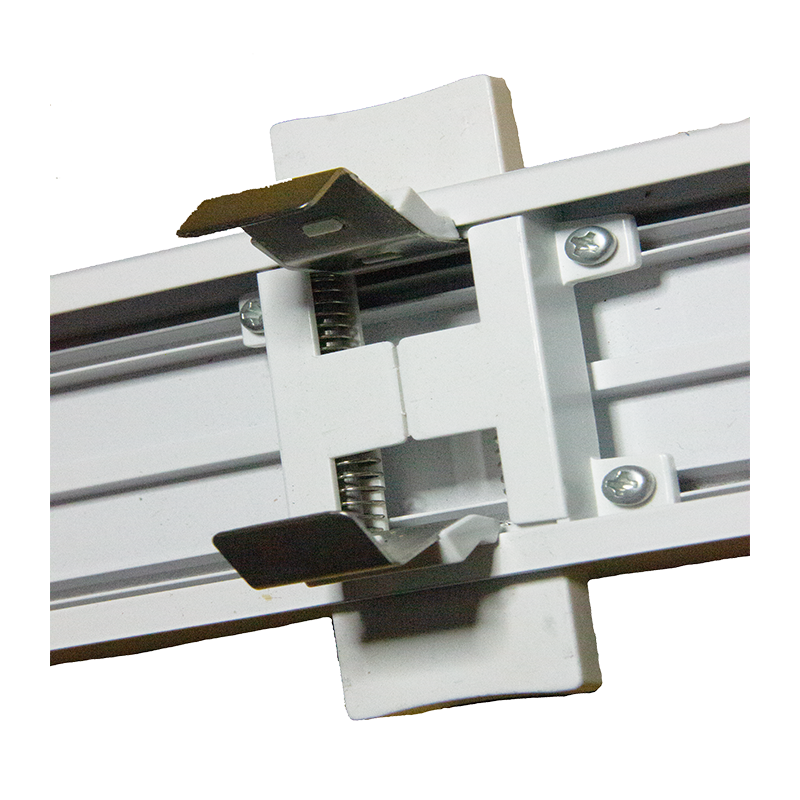

This Titan LED module is suitable for any brand of trunking system and is designed for quick, safe, and easy installation. The module is equipped with safety clips and plug-and-play connectors, which must be ordered separately. Please note: this LED module comes without a plug; it must be ordered separately.

Compatible with T8 and T5 Tube Replacement Systems

The LED module has been specially developed to replace existing trunking systems with T8 or T5 tubes. This allows you to easily upgrade your current lighting system to LED without replacing the entire installation.

Osram or Tridonic Driver with Adjustable Light Intensity

The Titan LED module comes with a high-quality Osram or Tridonic driver, allowing the light intensity to be easily adjusted by modifying the mA settings. This ensures you can optimize the lighting according to the needs of the space.

Specifications Titan LED Module

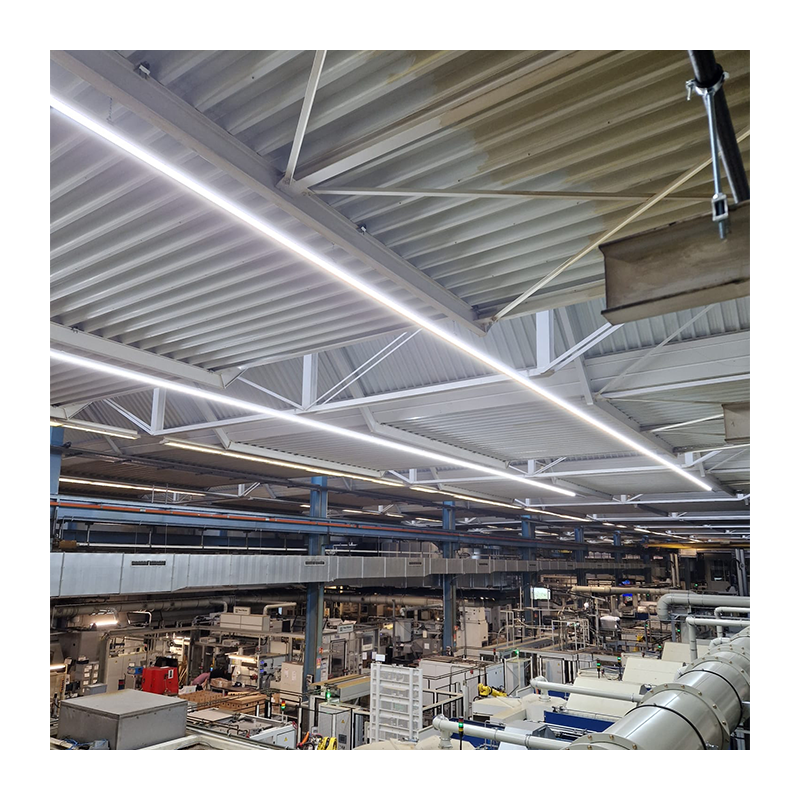

The Titan LED module is non-dimmable, making it ideal for environments where constant illumination is required, such as industrial and commercial spaces like warehouses and workshops, where bright and stable lighting is crucial for safety and productivity. With a length of 1530 mm, the module fits seamlessly into most trunking systems, ensuring uniform light distribution, ideal for large areas. The module is available in four wattages (32, 40, 48, and 56 watts), allowing you to easily adjust the lighting to your specific needs. With an efficiency of 155 lumens per watt, each variant offers optimal brightness with low energy consumption. For reliable performance, the module is equipped with a high-quality Osram or Tridonic driver, allowing you to adjust the light intensity thanks to adjustable milliampere settings, offering flexibility in setting the desired lighting.

Benefits of Retrofit: Quick and Easy Installation

One of the biggest advantages of this LED module is its simple retrofit capability. Thanks to its design, this LED module can be seamlessly integrated into existing linear lighting systems, allowing you to immediately benefit from faster installation and more efficient lighting.

PLEASE NOTE: For full operation of the trunking system, the ZX2 plug is necessary. This is not included as standard and must be ordered separately.

Technical Specifications
Wattage	32 Watt\|40 Watt\|48 Watt\|56 Watt
Lumen Efficiency	155lm/W
Luminous Flux	10975 Lumen
Light Color	4000K\|5700K
CRI	>80Ra\|>81Ra
UGR	<27
Beam Angle	120°
Voltage	220-240V(AC)
Amperage	550 mA
Hertz	50/60 Hz
IP Rating	IP44
Energy Label	C

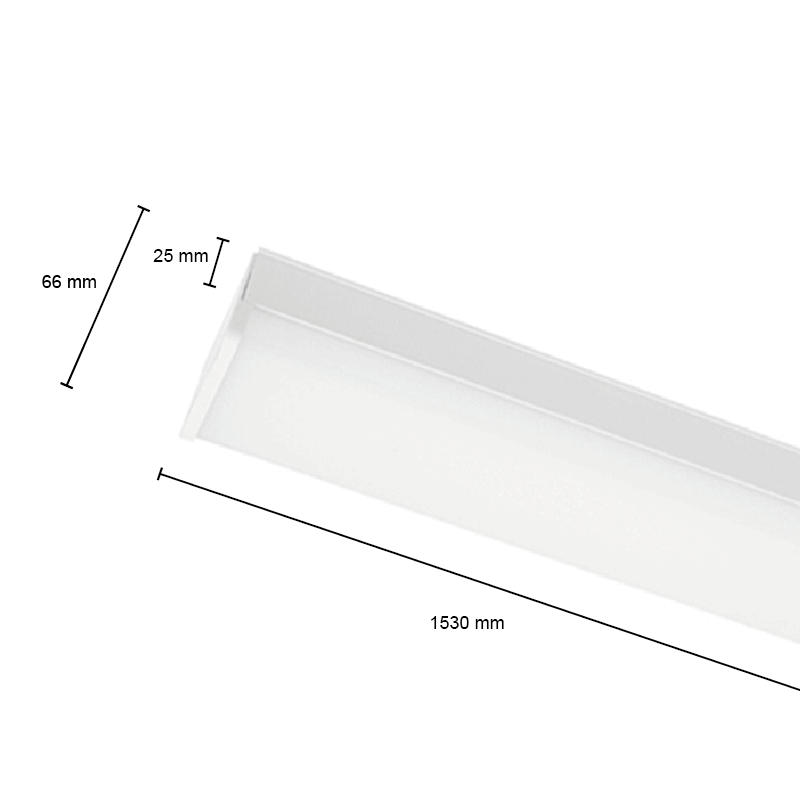

Dimensions
Length (mm)	1530
Width (mm)	66
Height (mm)	25
Driver Specifications
Dimmable	No
Warranty Terms
Warranty	5 years
Lifespan	100
Packaging Information
Quantity in master carton	12 pieces
Other Information
Certifications	CE
Product Color	White
LED Driver	OSRAM OT FIT 65/220-240/350 D CS L
More
Weight	1

Lees meer

Product FAQs

1. What is the delivery time of my order? +

Orders placed on weekdays before 3:00 PM will, in most cases, be delivered the next business day. The exact delivery time is stated with the product.

2. Can I get advice on choosing the right lighting? +

Yes, of course. Our team will be happy to help you choose the right LED lighting and electrical accessories for your project. Please contact us at 0172 – 729 008 or info@verlichtinggroothandel.nl.

3. Do you also deliver to business customers and installers? +

Yes, we supply to both private and business customers, including installers and companies. For larger quantities or projects, you can always contact us for advice.
