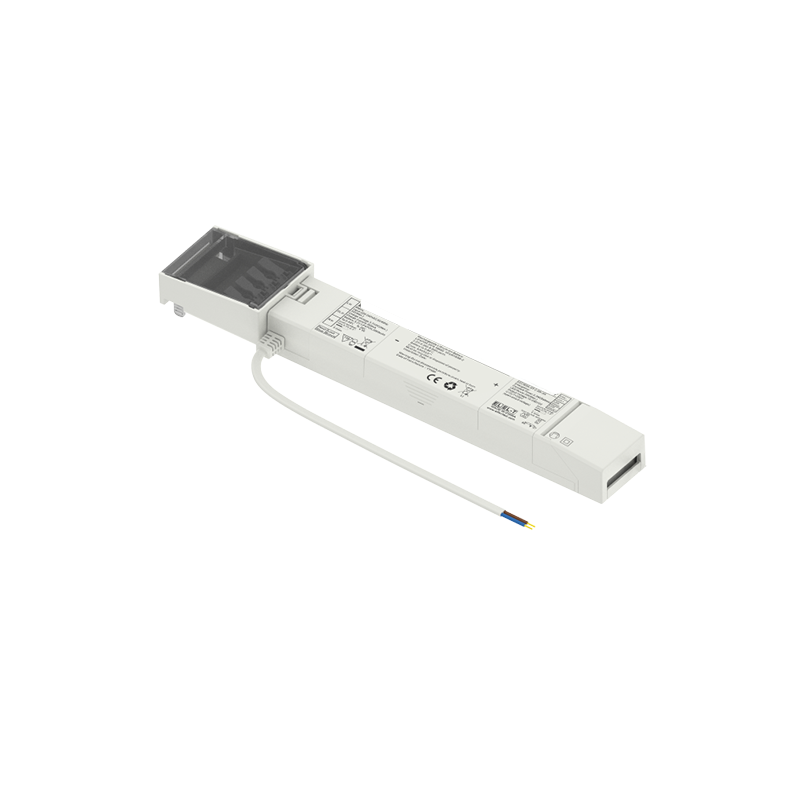

EMERGENCY UNIT 1.2W | 10-300V(DC) | 3 HOURS

• 3 hours of battery life
• 3.2V 1500mAh LiFePO4
• 1.2W max power
• 10-300V(DC)
• 2 year warranty

Reliable 1.2 Watt emergency unit for effective emergency lighting

This advanced 1.2-watt emergency unit is specifically designed for situations where continuous lighting is essential. Equipped with a powerful LiFePO4 battery, this unit provides stable emergency lighting and works with both dimmable and non-dimmable constant-current LED drivers, making it ideal for commercial and industrial applications.

Emergency unit specifications

With a 1.2-watt output and impressive battery life, this emergency unit delivers excellent performance in emergencies. Its 10-300V (DC) output supports a wide range of LED lighting.
– Power: 1.2 Watt
– Input voltage: 220-240V (AC)
– Frequency: 50/60 Hz
– Output voltage: 10-300V (DC)
– Output current: 200mA
– Power Factor: >0.55

Powerful LifePO4 battery for long-term use

The built-in 3.2V 1500mAh LifePO4 battery provides reliable battery life of up to 3 hours in emergency situations. With a lifespan of 50,000 hours, this emergency unit is both durable and low-maintenance, ideal for long-term use.
– Battery capacity: 3.2V 1500mAh LifePO4
– Operating time in case of failure: up to 3 hours
– Lifespan: 50,000 hours

Safety and sustainability

Equipped with deep discharge protection and a short-circuit-proof battery connection, this emergency unit offers maximum safety and stability during power outages. Its IP20 rating makes it suitable for indoor use, perfect for offices, hospitals, and commercial spaces.
– IP rating: IP20, for indoor use
– Protection: Deep discharge protection and short-circuit-proof battery connection

Extensive compatibility and energy efficiency

This emergency unit is fully compatible with all dimmable and non-dimmable constant current LED drivers and offers a high degree of flexibility. Thanks to an input of only 20mA, energy consumption remains low, making this unit an efficient choice.
– Compatibility: Suitable for all dimmable and non-dimmable constant current LED drivers
– Input current: 20mA, for energy-efficient use

Warranty and durability

The emergency unit comes with a 2-year warranty, providing additional peace of mind. With its long lifespan and robust design, this unit is a reliable and durable emergency lighting solution.

Summary of key specifications

– Power: 1.2 Watt
– Input voltage: 220-240V (AC), 50/60 Hz
– Output voltage: 10-300V (DC), 200mA
– Power Factor: >0.55
– IP classification: IP20
– Battery: 3.2V 1500mAh LifePO4, up to 3 hours of battery life
– Lifespan: 50,000 hours
– Protection: Protection against deep discharge, short-circuit-proof battery connection
– Warranty: 2 years

The 1.2 Watt emergency unit is the perfect choice for those looking for a durable, safe and efficient emergency lighting solution during power outages, with maximum compatibility and easy integration into various interior spaces.
