Multicontrol LED dimmer | Universal | 0-250W | Trailing Edge Phase Control

Ecodim phase cut dimmer: the perfect solution for your lighting

With the Ecodim phase-cut dimmer, you can dim your LED and halogen lighting quietly and easily. This advanced dimmer is ideal for situations where you want flexibility and ease of use. You can use the dimmer in two-way switching mode. This means you can connect a dimmer to one end and a switch to the other. This opens up countless possibilities for your home or office.

Features of the Ecodim dimmer

The Ecodim dimmer has a power range of 0-250 watts, offering a wide range of connection options for various types of LED lamps. Whether you want to dim a single lamp or a whole series, this dimmer meets all your needs.

Universal compatibility

This dimmer is designed to work with almost all A-brand cover material such as:
– Berker by Hager
– Busch-Jaeger
– Gira
– JUNG
– Kopp

You don't have to worry about whether the cover material will fit. Ecodim guarantees that the dimmer is versatile and easy to integrate into your existing system.

Advanced functionality

The Ecodim dimmer not only offers ease of use but also features several protection mechanisms. It is fully protected against:
– Overload
– Overheating
– Interference signals

This ensures you can count on a reliable and high-quality dimmer. You can easily set the minimum and maximum dimming levels so you can always dim the light to your preference.

Easy installation

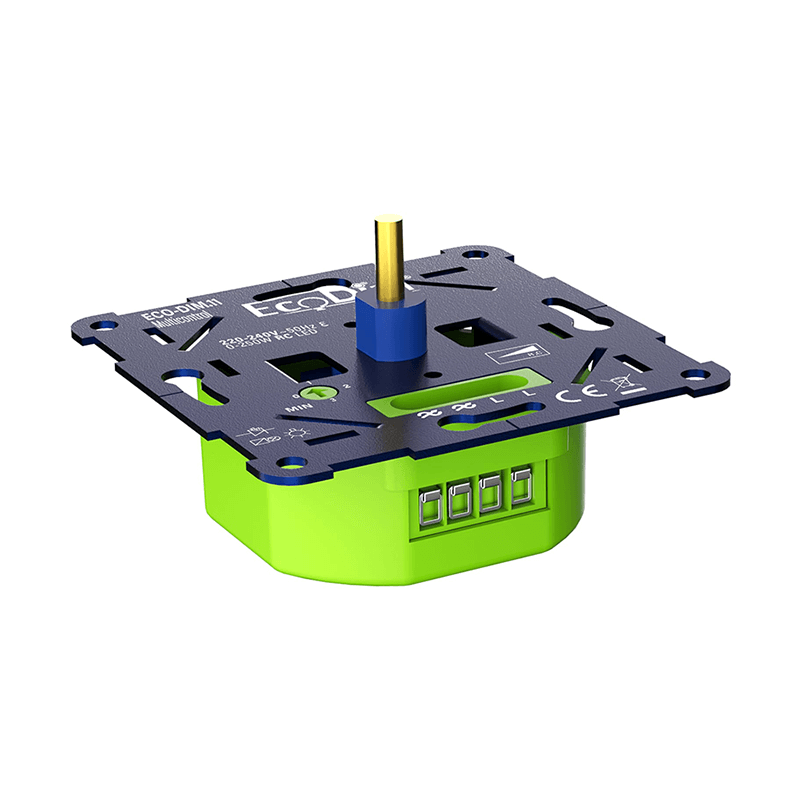

Thanks to the dual L-port, you can easily connect the dimmer to the live wire. The dimmer uses a soft-start system, meaning your lights turn on gradually without a flash. This is not only better for your eyes but also extends the life of your bulbs. The product comes with accessories for hassle-free installation.

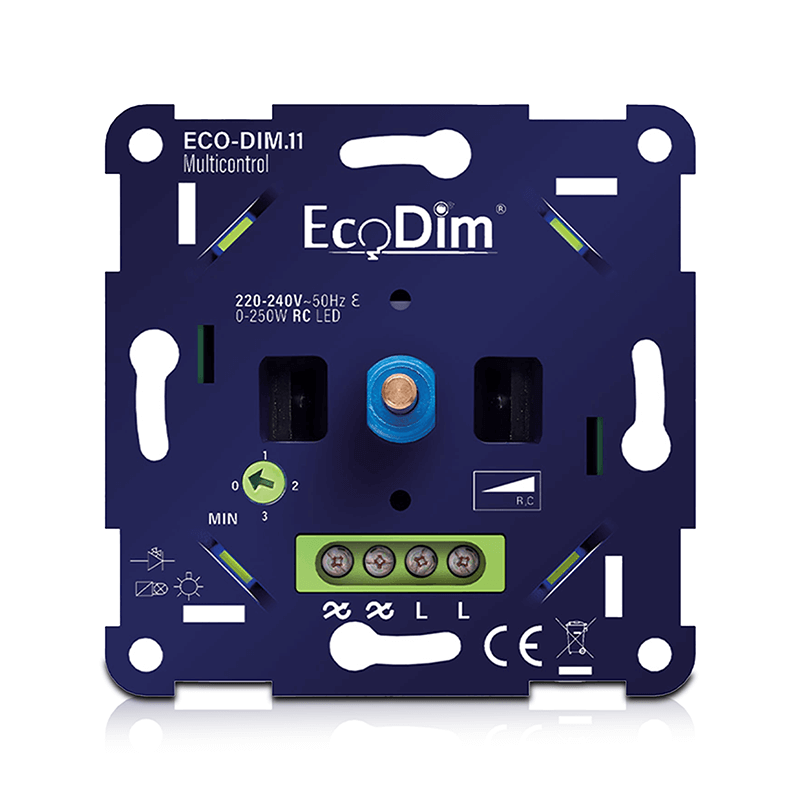

Technical specifications

Here are some important specifications of the Ecodim dimmer:
– Item number: ECO-DIM.11
– Dimmer type: Trailing Edge / phase cut-off
– Power: 0-250 watt LED phase cut-off
– Operation: Push/turn
– Dimensions: 70.9 x 70.9 x 23.8 mm
– Input voltage: 220-240V AC
– Frequency: 50/60 Hz
– IP value: IP20 (suitable for indoor use)
– Warranty: 2 years
– Material: Aluminum and metal

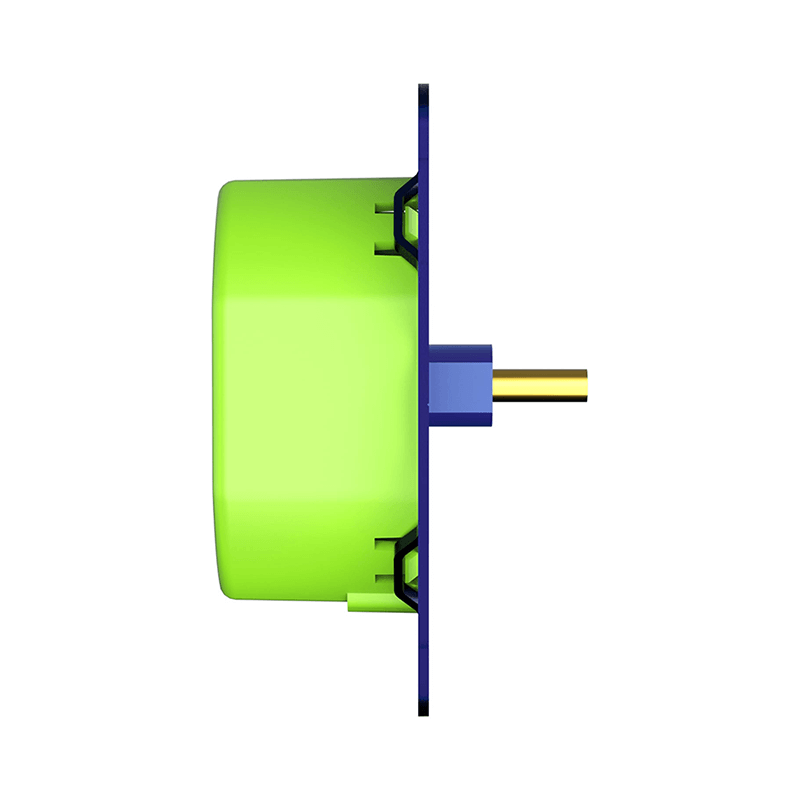

– Installation depth: 23.8 mm

Suitable lamps

The Ecodim dimmer can be used with a variety of lamps such as:
– LED lamps 230V (max. 250 watts)
– Incandescent light bulbs (max. 300 watts)
– Halogen lamps 230V (max. 300 watts)
– Low-voltage lamps with electronic transformer (max. 250 watts)

Important: The Ecodim dimmer can be used both standalone and in a two-way circuit with multiple ECO-DIM.11 dimmers. However, it is not possible to use on/off switches, momentary switches, or other types of dimmers in the two-way circuit. Therefore, use an ECO-DIM.11 at all switching points.

With the Ecodim phase-cut dimmer, you bring not only functionality but also style and ease of use to your lighting. It's the ideal choice for those looking for a reliable, versatile, and user-friendly dimming solution.
