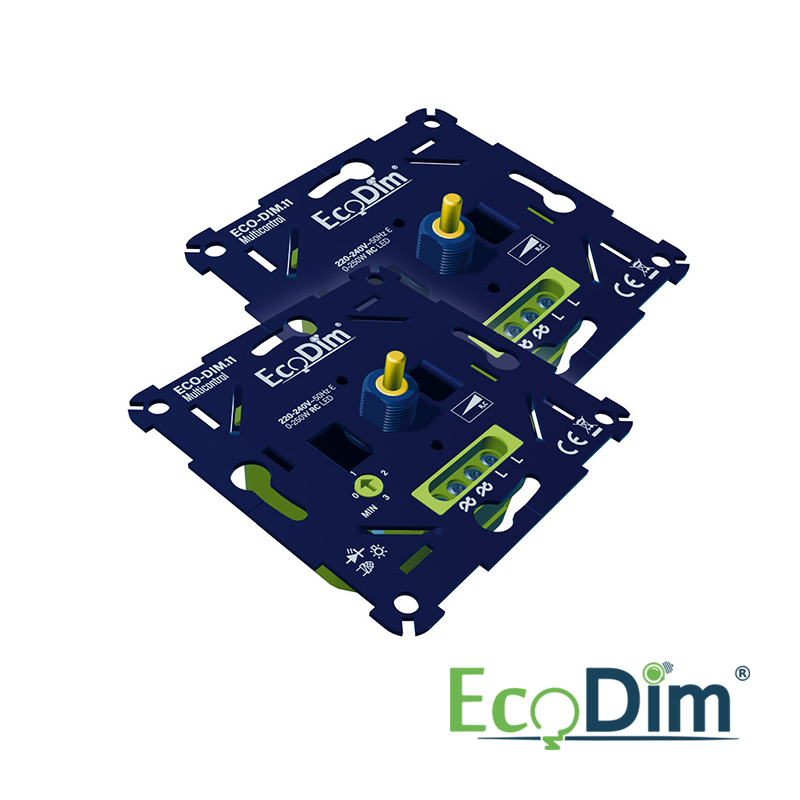

Multicontrol LED dimmer duo | universal | 0-250W | trailing edge

• 0-250 Watt
• Silent dimming
• 220-240V
• Phase cut-off
• 2 year warranty

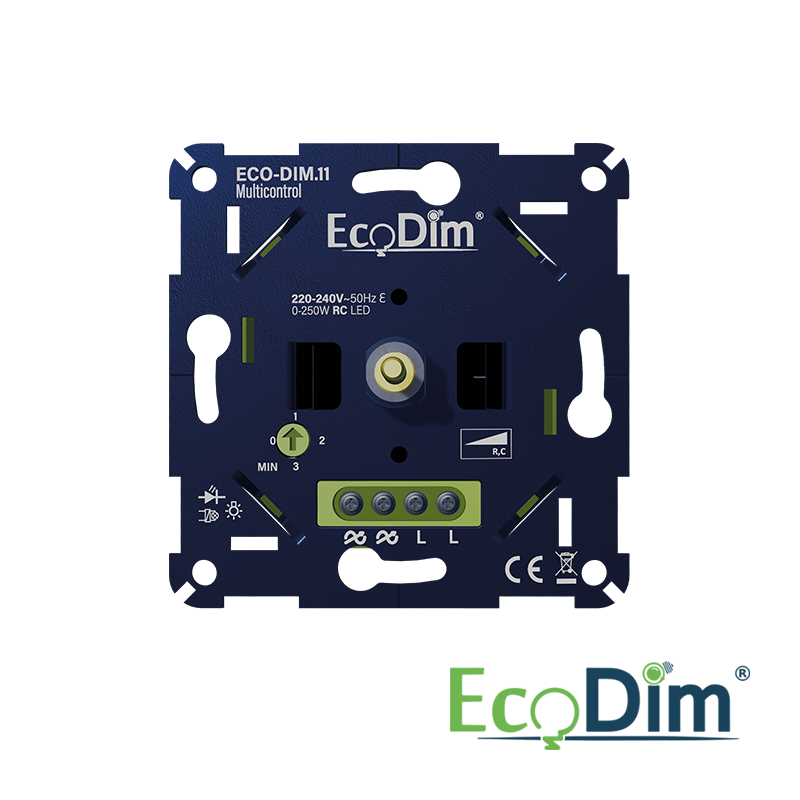

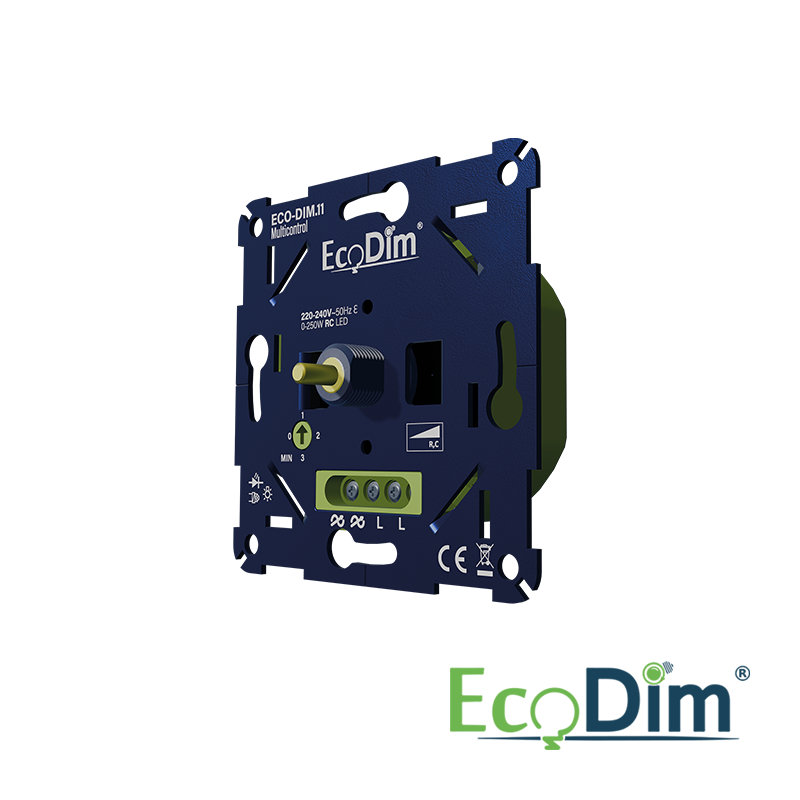

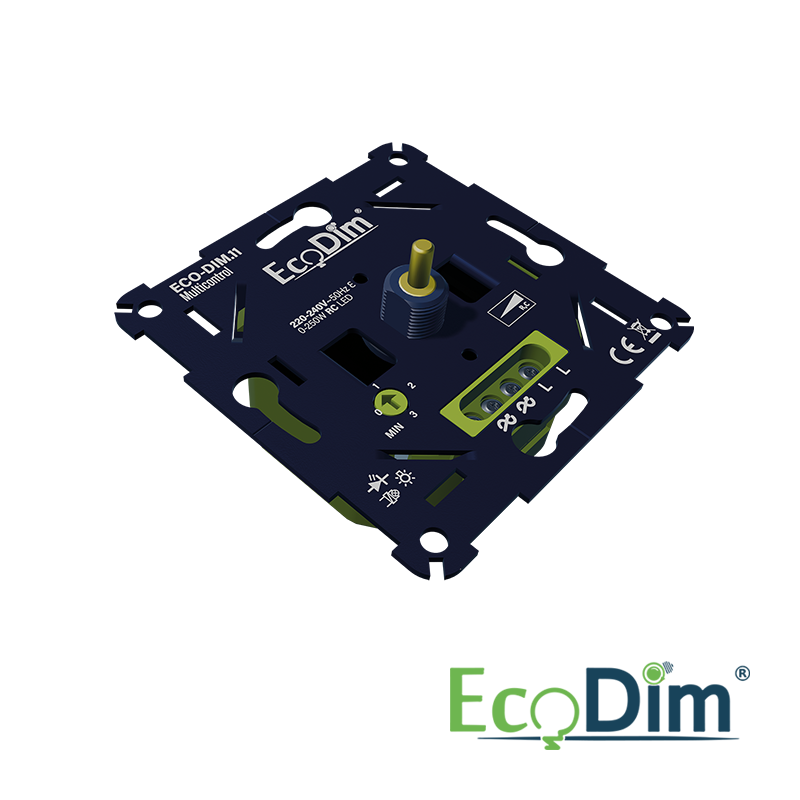

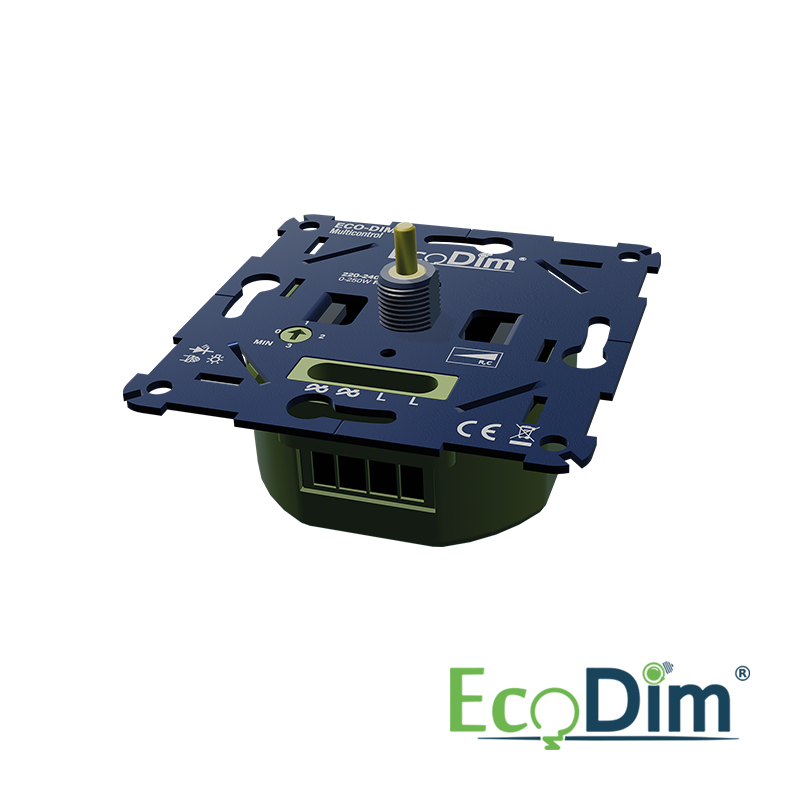

ECO-DIM.11 LED dimmer – The perfect solution for silent dimming

The ECO-DIM.11 LED dimmer is an innovative and reliable dimmer designed for use with various types of lamps. This dimmer offers a solution for multi-dimmer switching and ensures silent and stable lighting. With a wide range of compatible brands and easy installation, this dimmer is the ideal choice.

Main features of the ECO-DIM.11 LED dimmer

The ECO-DIM.11 distinguishes itself through its versatility and ease of use. Some of its key features include:
– Suitable for 2-way switching with multiple dimmers: Ideal for use in larger rooms where multiple switching points are required.
– Supports 0-250W LED: Works with various LED bulbs, as well as halogen and incandescent bulbs.
– Trailing edge dimmer (RC): This trailing edge dimmer is designed for maximum light stability and minimum interference.
– Compatible with various A-brand cover materials: Such as Berker, Busch-Jaeger, Gira, JUNG, Kopp, and more.
– Small installation depth: This makes it easy to install, even in compact spaces.
– Optimal dimmability & light stability.
– MIN adjustment & automatic MAX detection: For optimal dimmability and light stability, regardless of the lamp type.
– Overload and overheating protection: The dimmer is safe to use and prevents damage to both the dimmer and the connected lamps.
– Installation without neutral wire: Suitable for installations with existing two wires, which simplifies the process.
– Silent dimming: No buzzing noises, even when dimming LED lamps.
– Soft-start system: For a smooth transition when switching on the lights.
– Supplied incl. accessories.

Technical specifications

– Article number: ECO-DIM.11
– Dimmer type: Trailing edge / Phase cut-off (R,C)
– Power: 0-250W for LED, 300W for halogen and incandescent lamps
– Operation: Push and turn knob
– Dimensions: 70.9×70.9×23.8 mm
– Packaging: Per piece

Compatibility with cover material

The ECO-DIM.11 is suitable for use with various brands of cover material, including:
– Berker by Hager
– Busch-Jaeger (except 6540-7X)
– Gira
– JUNG
– Kopp
– Merten by Schneider (51XX and System M)
– Niko (with adapter)
– PEHA

It is important to note that the dimmer is not compatible with certain models, such as the Busch-Jaeger 6540-7, Merten D-Life, Niko PR20, and dimmer switches with a D-shaped hole.

Suitable lamps

The ECO-DIM.11 dimmer works with various types of lamps, including:
– LED lamps 230V (max. 250W)
– Incandescent light bulbs (max. 300W)
– Halogen lamps 230V (max. 300W)
– Low-voltage lamps with electronic transformer (e.g. LED lamps with transformer, max. 250W)

Installation tips

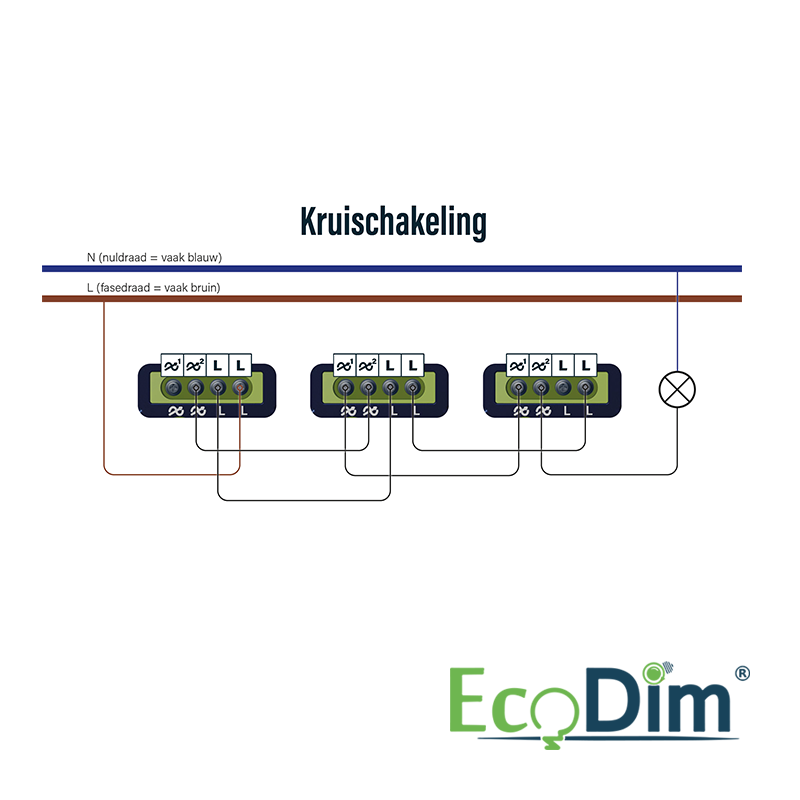

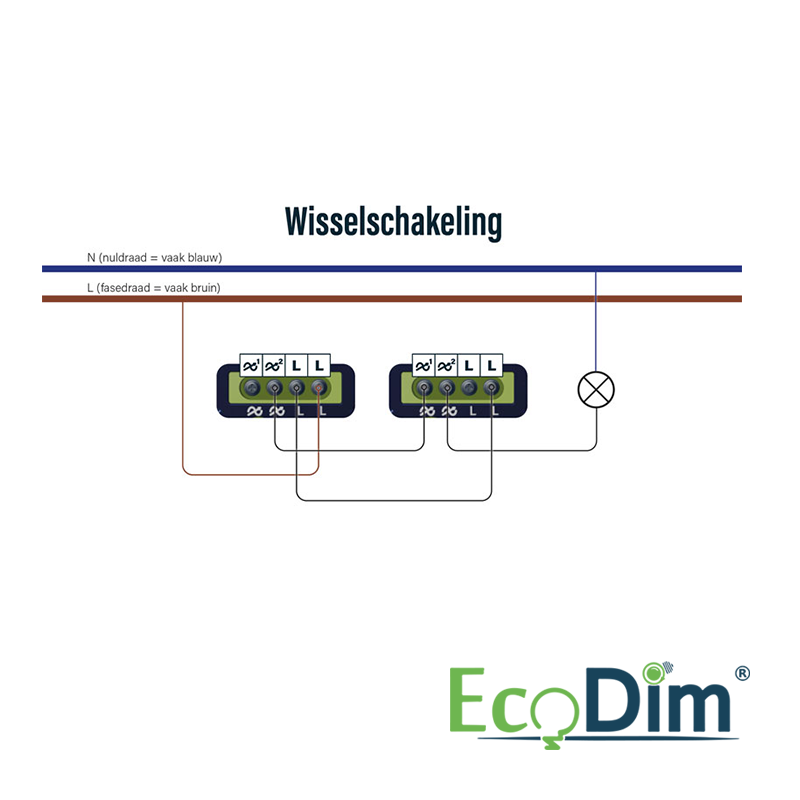

This dimmer is specifically designed for use in two-way circuits with multiple ECO-DIM.11 dimmers. It is essential to use the same dimmer at each switching point. Other types of switches or dimmers cannot be used with the ECO-DIM.11.

Conclusion

The ECO-DIM.11 LED dimmer offers a versatile, safe, and silent solution for dimming various types of lighting. With its broad compatibility, easy installation, and advanced features, this dimmer is an excellent choice for any space where light stability and dimmability are desired.
