MI-LIGHT | CONTROLLER | MAGIC LED STRIP

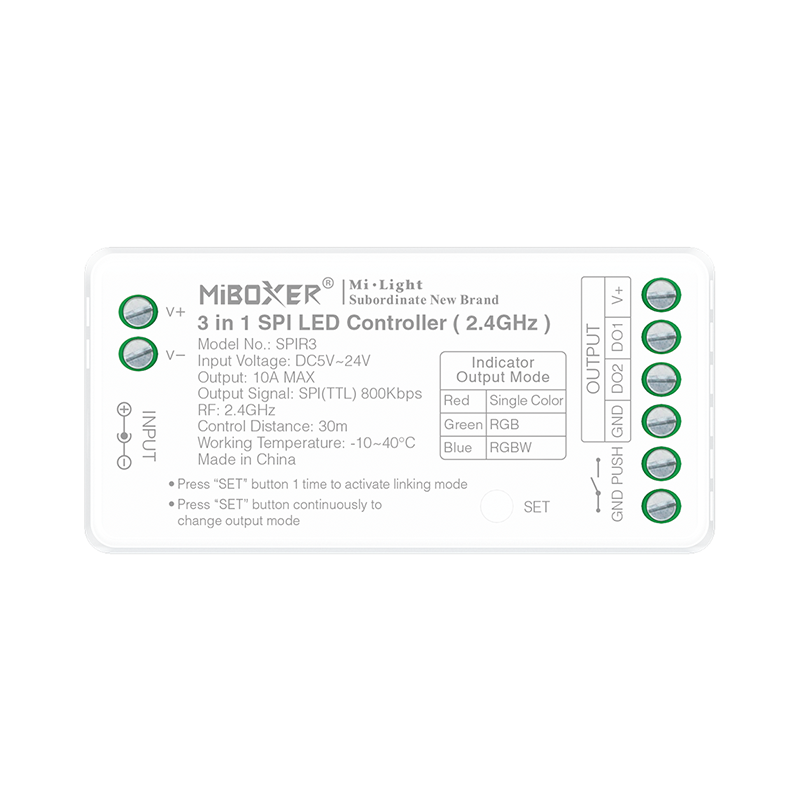

The SPIR3 controller offers a versatile and advanced solution for controlling Pixel LED strips. Here are the key features and capabilities of the SPIR3 controller:

1. Wireless Transfer :
   • Uses 2.4GHz wireless transmission technology.
   • Ensures fast data transmission with strong anti-interference capabilities for a stable signal.
2. Remote Control Compatibility :
   • Compatible with C6 or B6 remote controls.
   • This allows you to adjust mode, color, brightness, on/off time, and dynamic lighting functions.
3. 3-in-1 SPI Controller :
   • Supports single color, RGB and RGBW modes.
   • Can control different types of Pixel LEDs: Single Color (2048 pixels), RGB (1536 pixels), and RGBW (1024 pixels).
4. Output signal :
   • SPI (TTL) with a data rate of 800Kbps.
5. Settings and Controls :
   • Allows you to set the color and length of the LED strip.
   • Allows you to set on/off time and color.
   • Users can select single color, RGB or RGBW output modes via the “SET” button.
   • Provides on/off function and dynamic mode changes.
   • Includes 20 dynamic modes with support for editing the color of each mode.
6. DND (Do Not Disturb) Feature :
   • Specially designed for areas prone to power outages.
   • Helps save power during outages.

Ideal for dynamic and customizable LED lighting setups, this controller offers comprehensive control over various LED configurations with a focus on efficiency and ease of use.
