LIGHT LINE MODULE | JUPITER | 29-75W | 30° | CCT SWITCH

• 29-75W Power Switch
• 180 lumen per watt
• 4000K/5000K/5700K
• 100,000 operating hours
• 5-year warranty

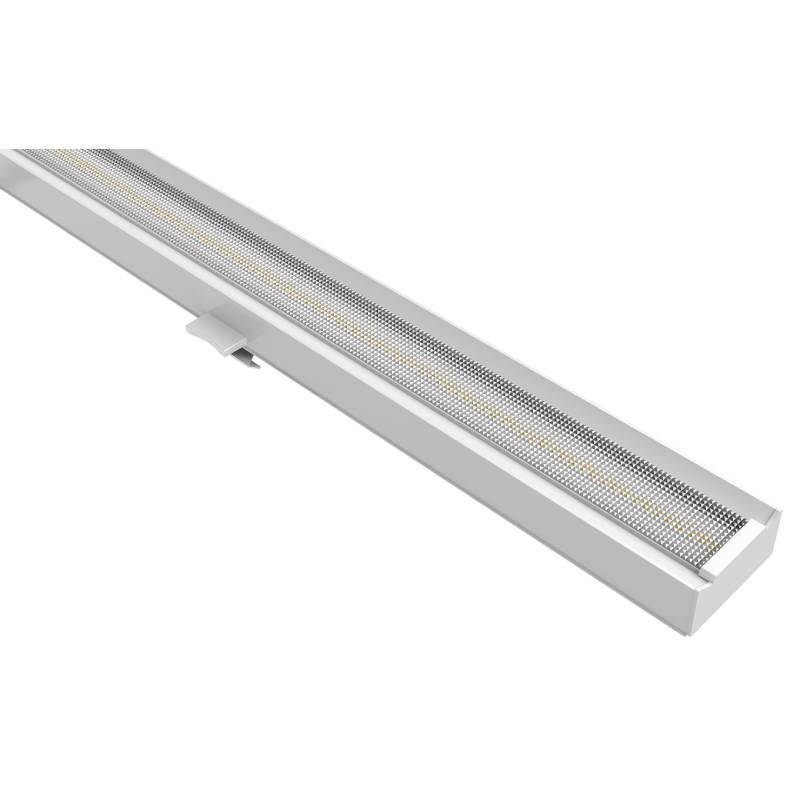

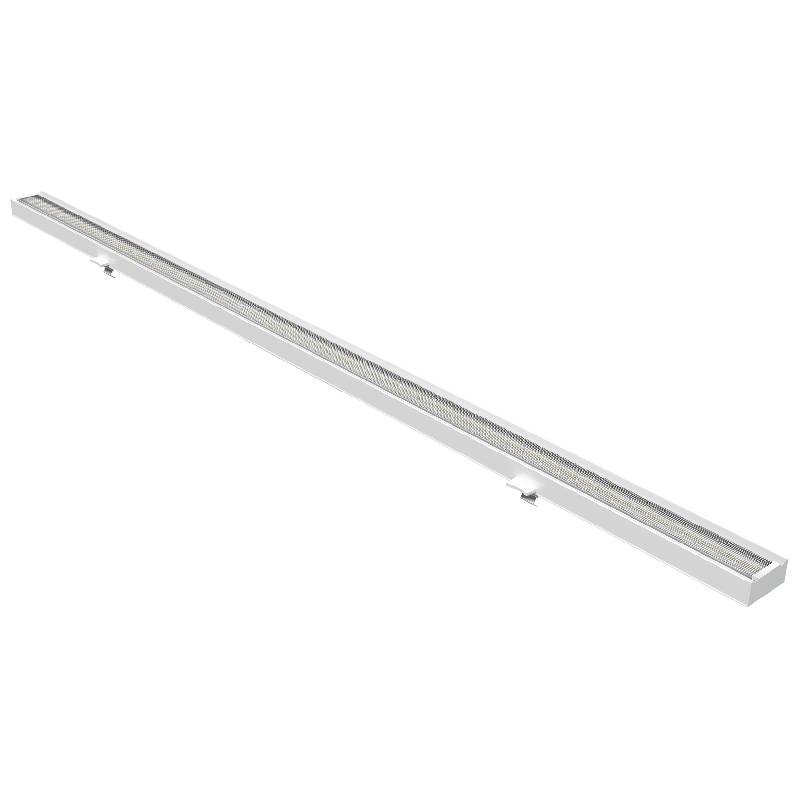

Trunking Module Jupiter – Focused lighting for large spaces

The trunking module Jupiter offers a powerful and efficient lighting solution, specifically designed for industrial, commercial, and public spaces. With its high performance and durable construction, this module is ideal for focused and effective lighting.

Flexible power and maximum light output

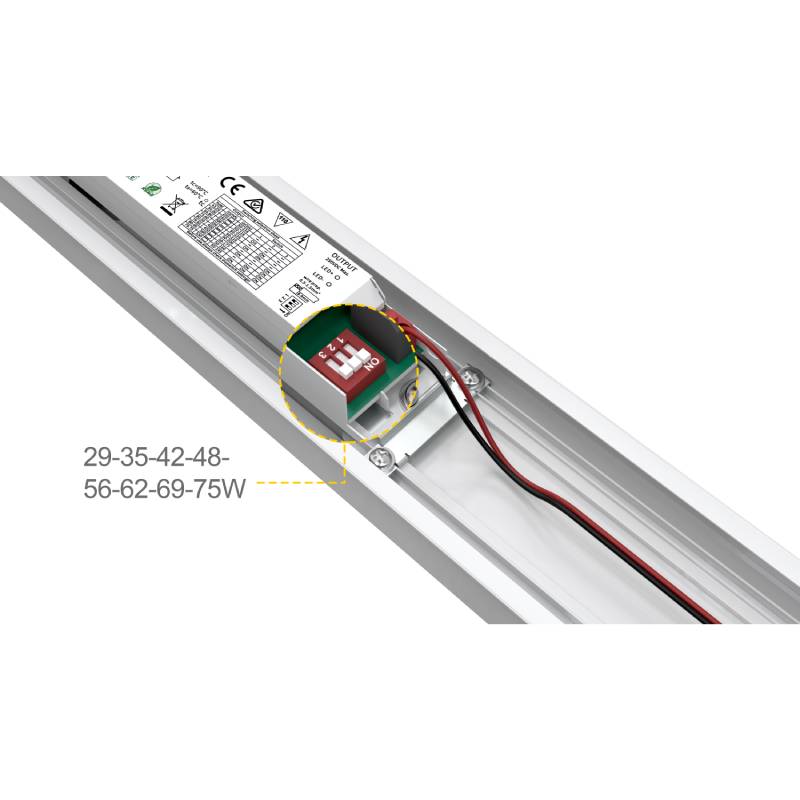

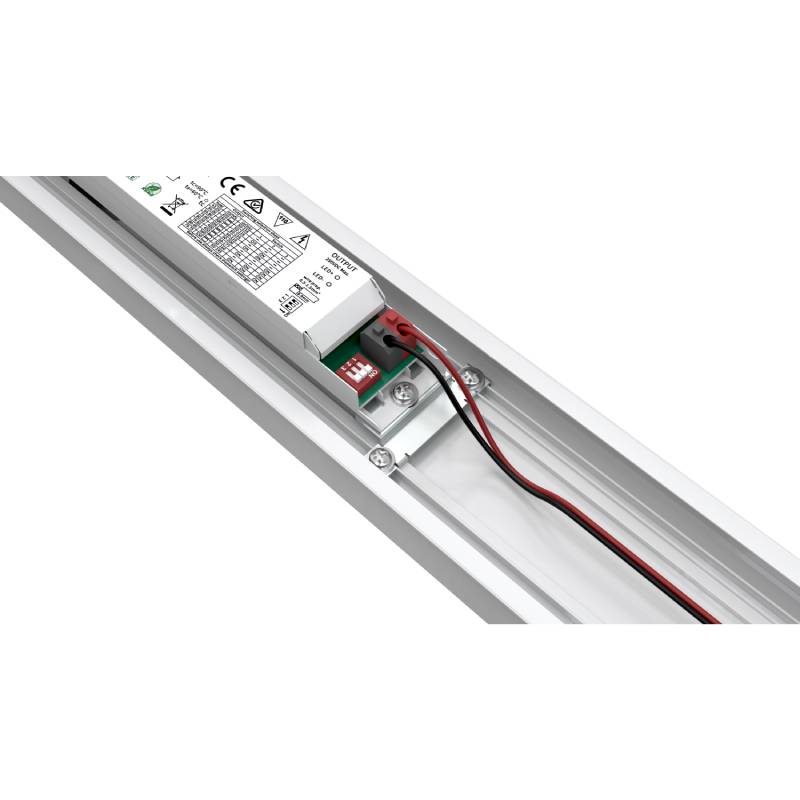

The Jupiter trunking module features a Power Switch, allowing the power to be easily adjusted between 29W and 75W. This makes it possible to adapt the lighting to your specific needs while saving energy. With an impressive light output of up to 13,500 lumens and a lumen efficiency of 180 lm/W, the module delivers bright and focused light. The integrated CCT-Switch allows you to choose between three light colors: 4000K, 5000K, and 5700K, ideal for various applications.

Precise beam angle and color rendering

With a beam angle of 30°, the Jupiter trunking module is perfect for focused lighting of specific areas or objects. This makes it ideal for environments where precision and focus are of great importance. The module offers a CRI value of >80Ra, ensuring natural color reproduction. This is an important feature for applications in retail, workshops, and offices. In addition, the flicker-free Boke LED driver ensures stable lighting without flickering, enhancing the visual experience.

Durable and reliable design

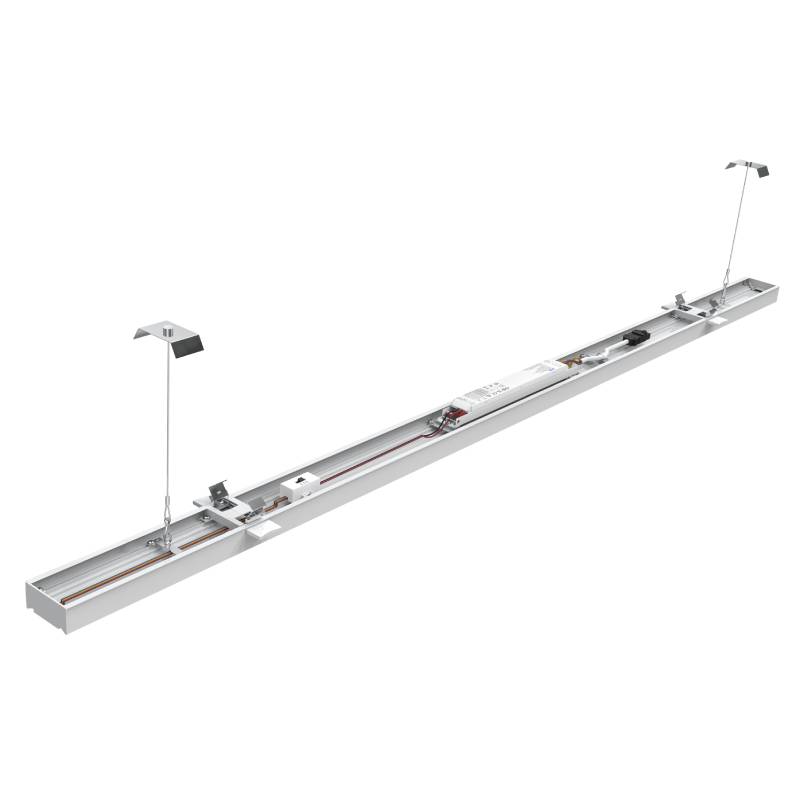

The Jupiter trunking module is built to last. Its aluminum housing and IP20 rating make it suitable for indoor use. The IK06 rating provides additional protection against impacts, contributing to its durability. With a length of 1527 mm and a compact construction, the module is versatile for use in various environments.

Key specifications of the Trunking Module Jupiter

– Wattage: Adjustable between 29W to 75W via Power Switch.
– Lumen efficiency: 180 lumens per watt.
– Light output: Up to 13,500 lumens.
– Light color: Adjustable via CCT-Switch (4000K, 5000K, 5700K).
– CRI value: >80Ra for natural color rendering.
– Beam angle: 30° for focused lighting.
– Durability: Protected against impacts (IK06).
– Warranty: 5 years for long-term reliability.
– Driver: Flicker-free Boke on/off LED driver.

Applications

The Jupiter trunking module is particularly suitable for:
– Specific task lighting in workshops.
– Focused lighting in supermarkets and shops.
– Lighting of display cases and exhibits.
– Applications in warehouses and storage areas.

Why choose the Trunking Module Jupiter?

The Jupiter trunking module offers a unique combination of efficiency, flexibility, and durability. Thanks to its adjustable wattage, light color, and precise beam angle, it is a versatile solution for professional lighting needs. Choose the Jupiter module and improve the lighting of your spaces in an effective and focused way.

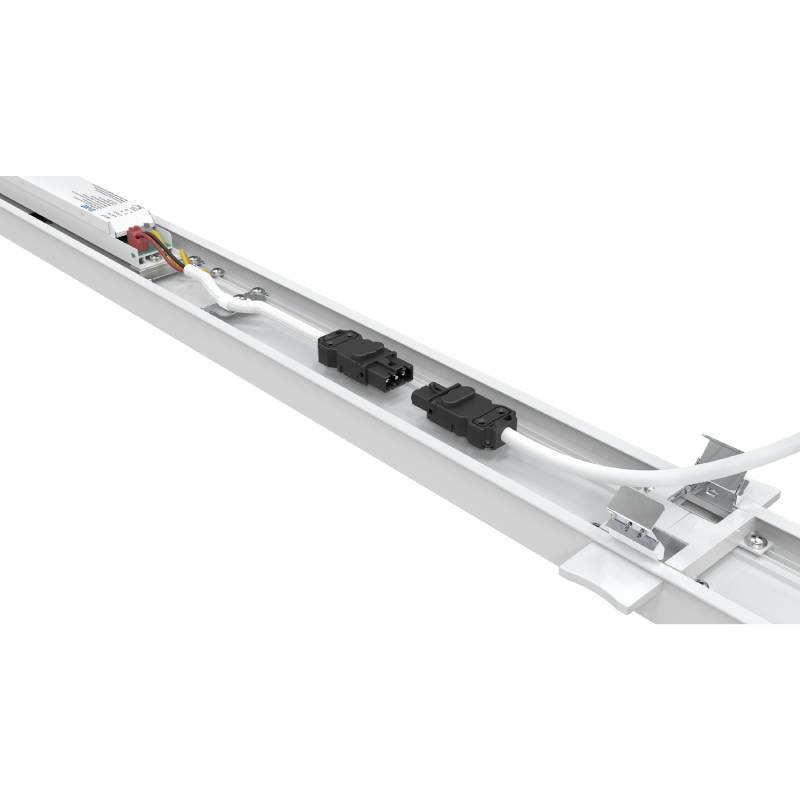

PLEASE NOTE: For full functionality of the trunking system, the ZX2 plug is necessary. This is not included as standard and must be ordered separately.
