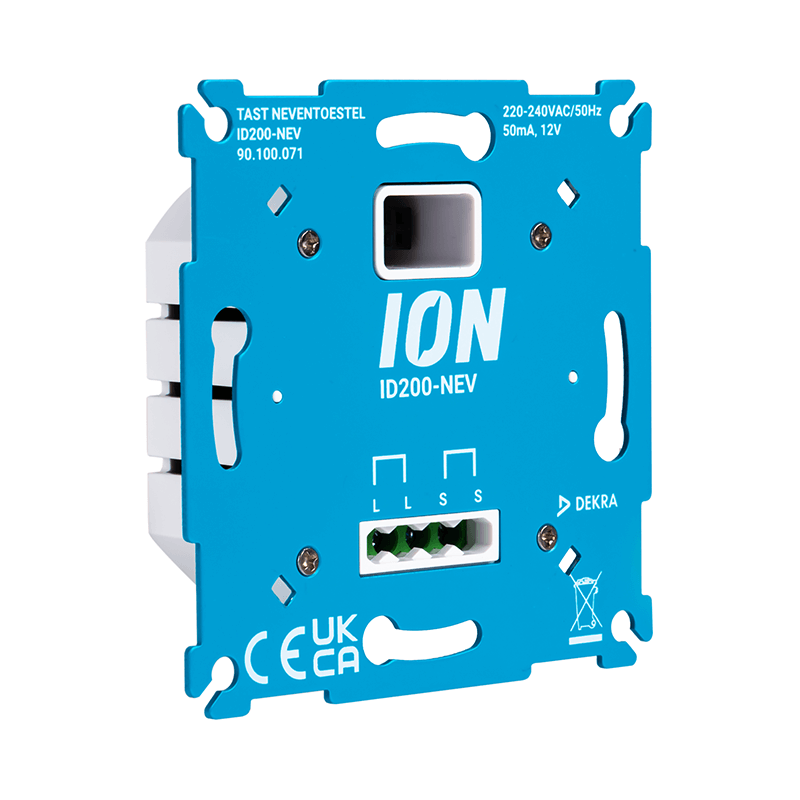

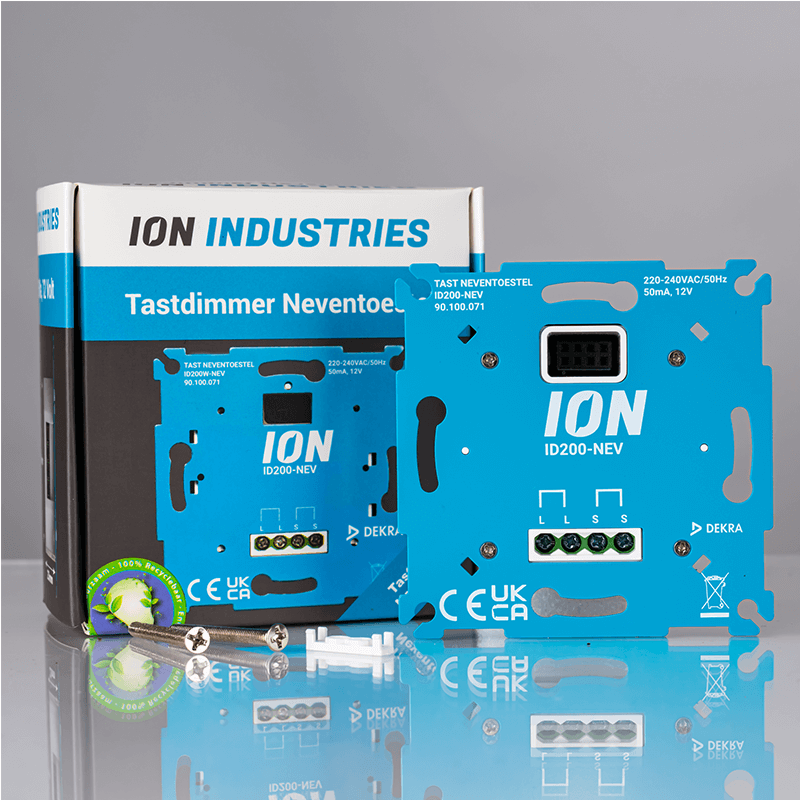

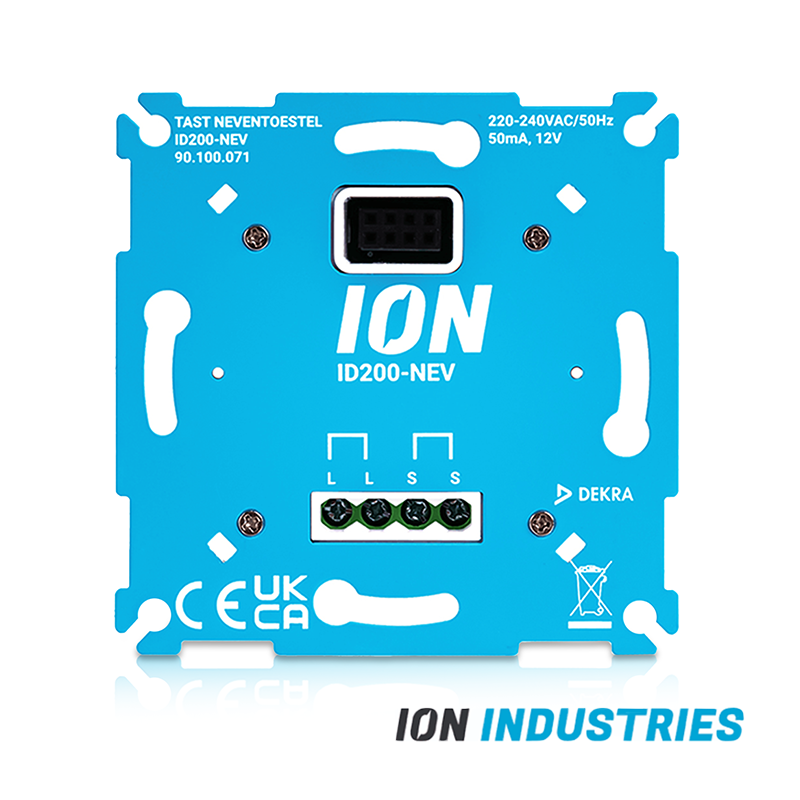

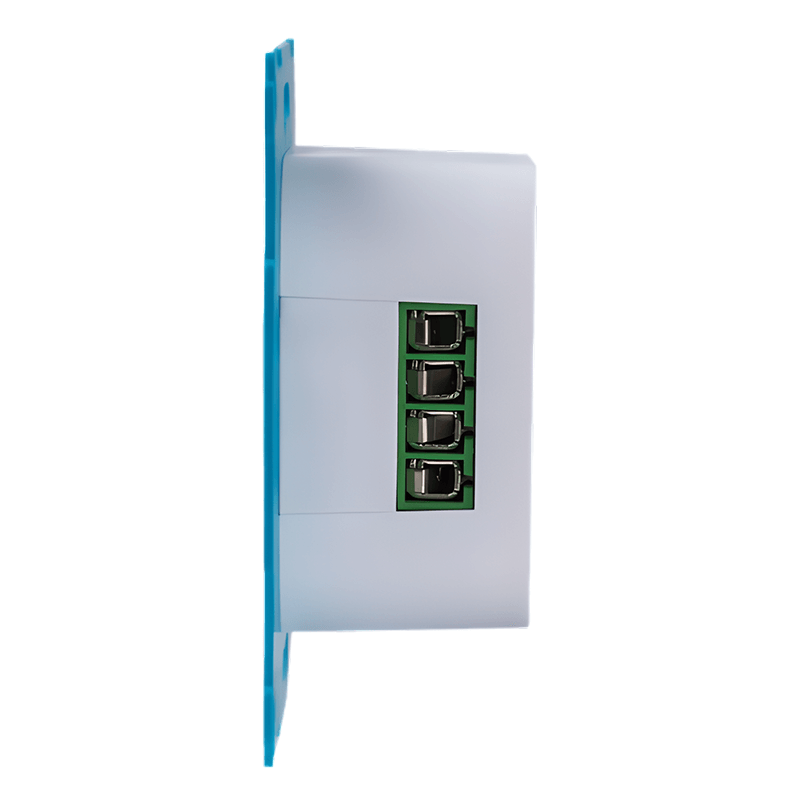

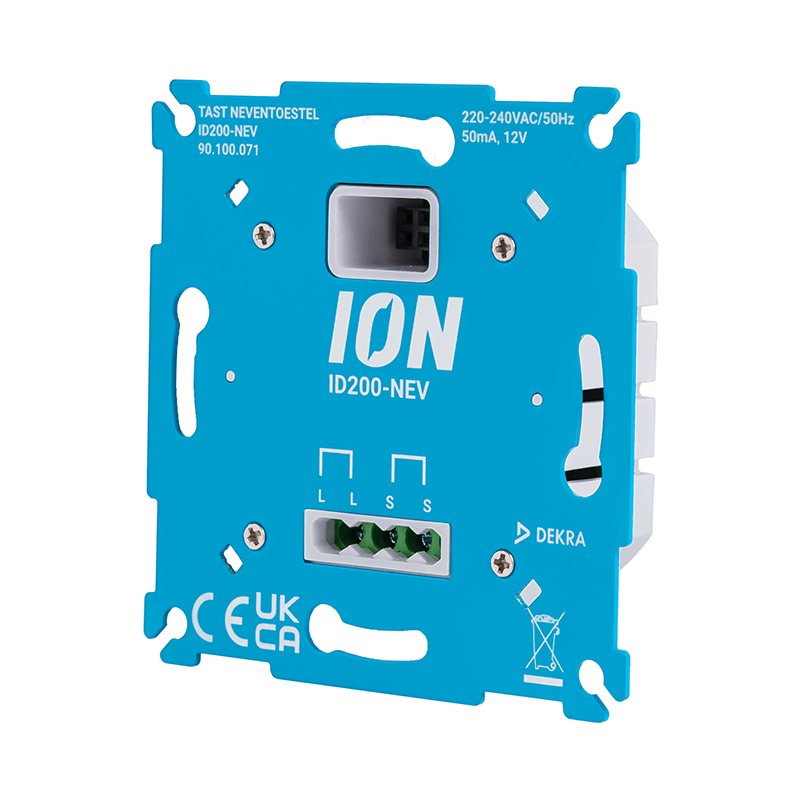

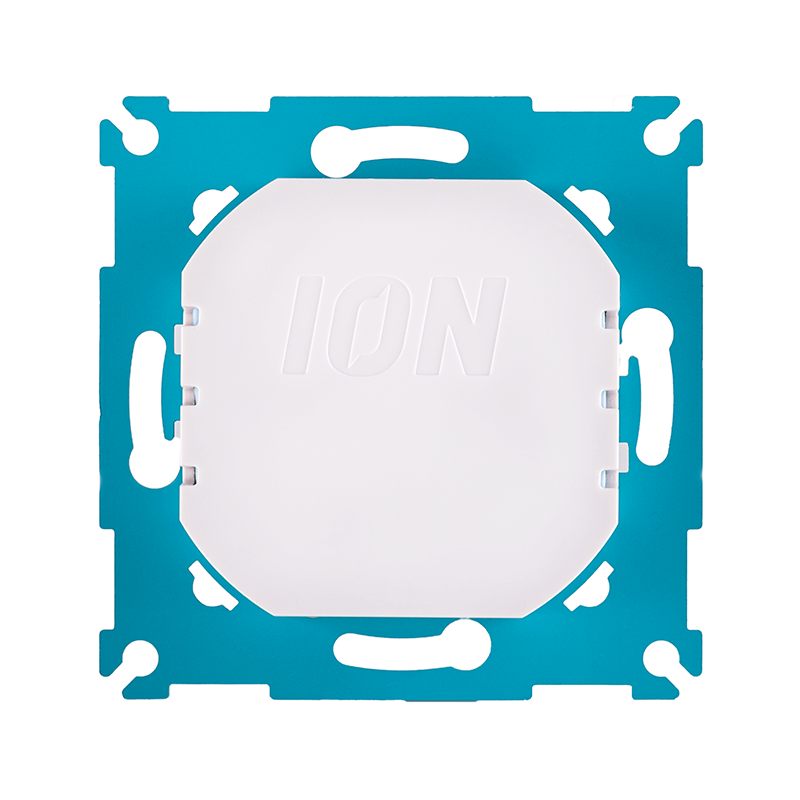

LED Touch Dimmer Subdevice

• 0.3-200 Watt
• Silent dimming
• 200-240V (AC)
• Soft touch
• 5 year warranty

Easy dimming with the Ion Industries satellite unit for hotel switching

The Ion Industries LED touch dimmer satellite unit makes dimming in hotel lighting easier than ever. Designed to complement the Ion Industries touch dimmer, this satellite unit allows you to automatically replicate the same settings without complicated configuration. Ideal for lighting in offices, warehouses, or cafeterias. The satellite unit is user-friendly and time-saving, allowing you to quickly achieve atmospheric and consistent lighting.

High-quality power and flexibility

Just like the Ion Industries touch dimmer, the companion unit offers a 200-watt output, making it compatible with a wide range of lamps. It's also suitable for two-way switching and offers stable performance in all switching locations. The unit is compatible with various Ion Industries touch switches, allowing you to easily select the desired control. This allows you to use the same dimming functionality in every room in your office or warehouse, up to a maximum output of 200 watts.

Note: When using 12V lamps, it's important to check whether the transformer/driver is dimmable. This ensures optimal system performance and prevents malfunctions.

Reliable protection for safe use

This companion unit is designed with built-in safeguards to ensure optimum safety and durability:
– Short circuit protection
– Overload protection
– Thermal protection

This allows you to dim the lights worry-free, even after extended use. Ion Industries dimmers are also known for their quiet performance and durable quality, ensuring flicker-free LED lighting. The device also has a soft-start function, allowing the light to switch on smoothly without sudden changes.

Installation and settings

This companion unit's installation is quick and easy because it automatically adopts the settings of the main touch dimmer. This means you don't have to configure anything separately. Installation saves a lot of time, making this product an efficient choice for professionals and businesses who want to quickly switch to dimmable LED lighting.

Technical specifications and durability

– Voltage: 220-240V(AC), 50/60 Hz
– Wattage: 0.3-200 Watt
– Material: Aluminum and plastic
– Installation depth: 23 mm
– Housing class: IP20 (for indoor use only)
– Dimensions: 71mm x 71mm x 23mm
– Minimum load: 0.3 VA
– Maximum load: 200 VA
– No-load consumption: ≤0.3 W
– Adjustable minimum and maximum dislevel
– Warranty: 5 years

Tested lamp brands and drivers

The companion unit has been tested with well-known lamp brands and drivers, ensuring optimal compatibility and quality:
– Lamp brands: IKEA, Philips, Calex, Osram
– LED drivers: Meanwell, Tridonic, Osram LE

With its flexible installation and reliable performance, the Ion Industries companion unit is a smart choice for a worry-free lighting experience in any professional environment.
