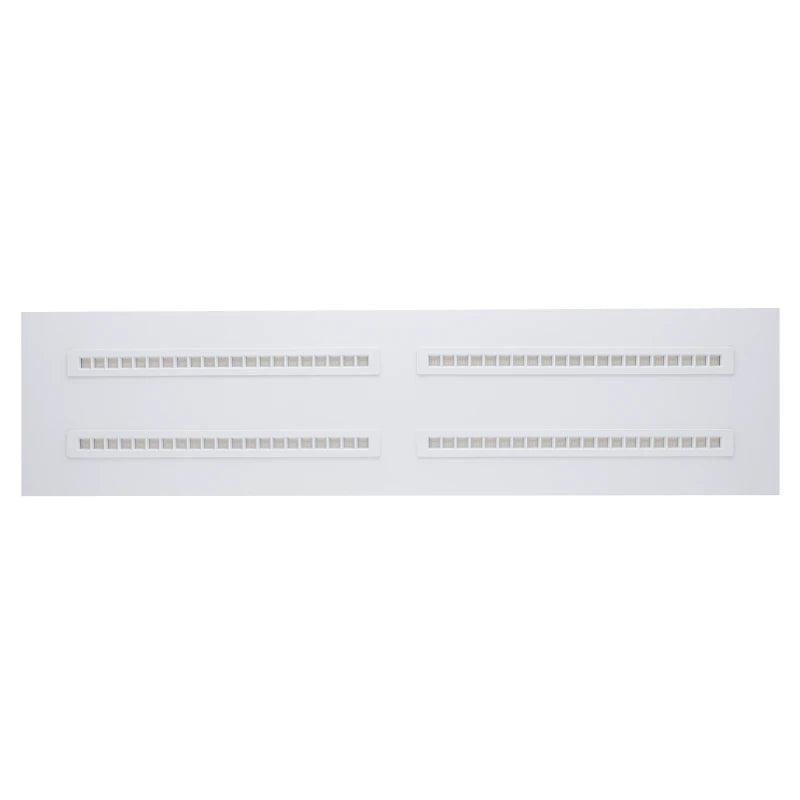

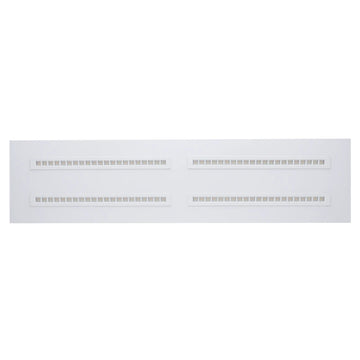

LED LOUVRE PANEL | NOVA | 120X30CM | 36W | CCT SWITCH | WHITE

• 30W/32W/34W/36W
• 140 lumens per watt
• CCT Switch
• UGR <16
• 5 year warranty

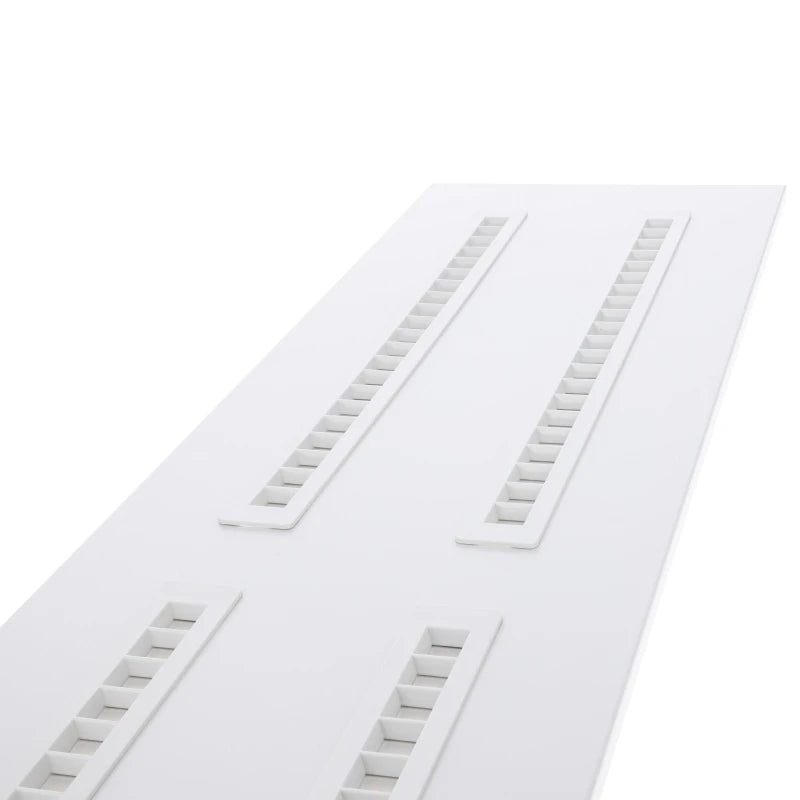

LED Louvre panel Nova – Ultimate efficiency and light quality for professional applications

The Nova LED Louvre Panel is the ideal lighting solution for those seeking power, efficiency, and comfort in a single fixture. Designed for 120x30 cm suspended ceilings and equipped with smart features like a Wattage Switch and CCT Switch, this panel offers maximum flexibility for a wide range of applications in offices, schools, meeting rooms, and other professional environments.

Adjustable power and light color with one panel

The Nova is equipped with a convenient Wattage Switch, allowing you to easily adjust the power to 30W, 32W, 34W, or 36W, tailored to your specific lighting needs. With an impressive lumen efficiency of 140 lm/W, the panel delivers a maximum light output of 5040 lumens.

The CCT Switch allows you to quickly choose between three color temperatures:
– 3000K (warm white) – ideal for hospitality and reception areas
– 4000K (neutral white) – perfect for workplaces such as offices and classrooms
– 6500K (daylight white) – suitable for technical or industrial applications

Stunning light quality and visual comfort

With a low glare rating of UGR <16 and a CRI of >80Ra, the Nova provides comfortable and natural lighting, even during extended use. The narrow 74° beam angle provides focused light distribution, efficiently distributing light without excessive stray light.

Technical specifications at a glance

– Wattage: 30W / 32W / 34W / 36W (adjustable via Wattage Switch)
– Lumen efficiency: 140 lumens per watt
– Light output: Up to 5040 lumens
– Color temperature: 3000K / 4000K / 6500K (adjustable via CCT switch)
– CRI: >80Ra
– UGR: <16
– Beam angle: 74°
– Voltage: 220-240V AC
– Frequency: 50/60 Hz
– Power factor: >0.90
– Dimensions: 120 x 30 cm
– LED type: SMD2835
– Current setting (Ampere): 750mA / 800mA / 850mA / 900mA

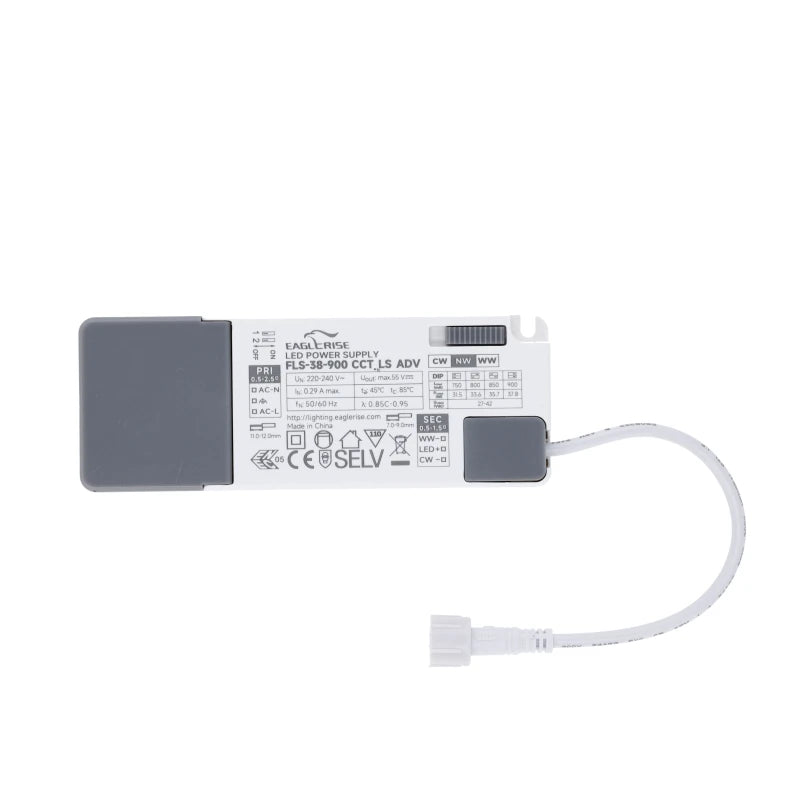

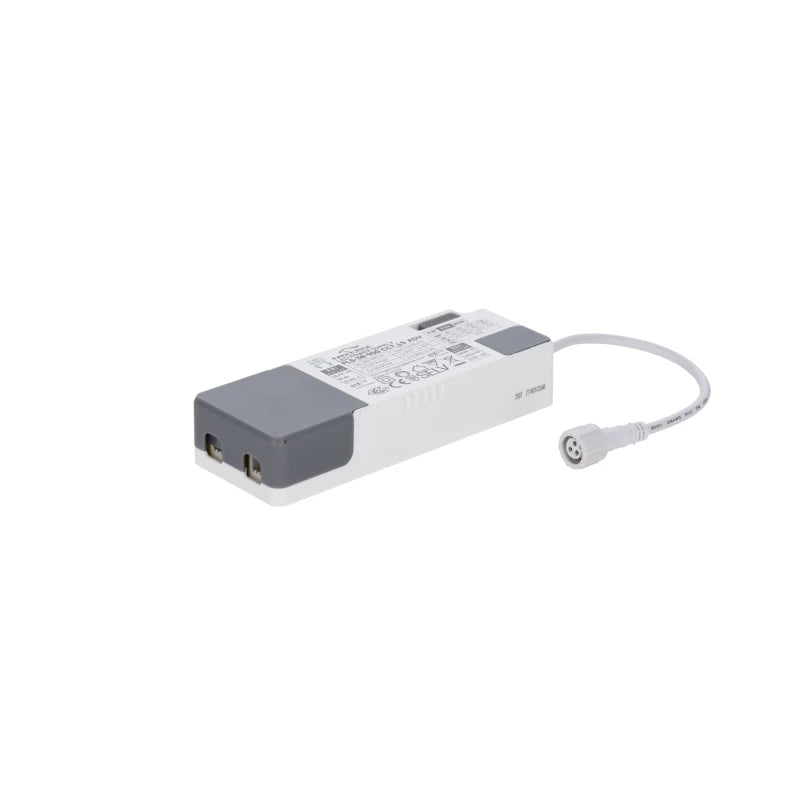

– Driver: Eaglerise FLS-38-900 CCT LS ADV ON-OFF
– Lifespan: 50,000 hours of operation
– Protection: IP20 (dustproof), IK06 (impact resistant)
– Material: Steel and polycarbonate
– Color: White
– Warranty: 5 years

Why choose the Nova LED Louvre panel?

The Nova LED Panel combines technical innovation with high energy efficiency and visual comfort. Its robust design and flexible settings make it the ideal choice for modern work environments where reliable lighting is essential.

Advantages at a glance:
– Adjustable wattage and light color
– UGR <16 for comfortable vision
– High efficiency with up to 5040 lumens
– Long lifespan of 50,000 hours
– Easy installation in 120x30 system ceilings

Want to provide your environment with high-quality lighting that's both functional and sustainable? Then choose the Nova LED Louvre Panel, where efficiency and comfort meet.
