LED FRAME PANEL | EDGE LIT | 120×30 | 40W | UGR<23 | BLACK | CCT SWITCH

• 40 Watt
• 100 lumens per watt
• UGR >23
• Incl. plug
• 5 year warranty

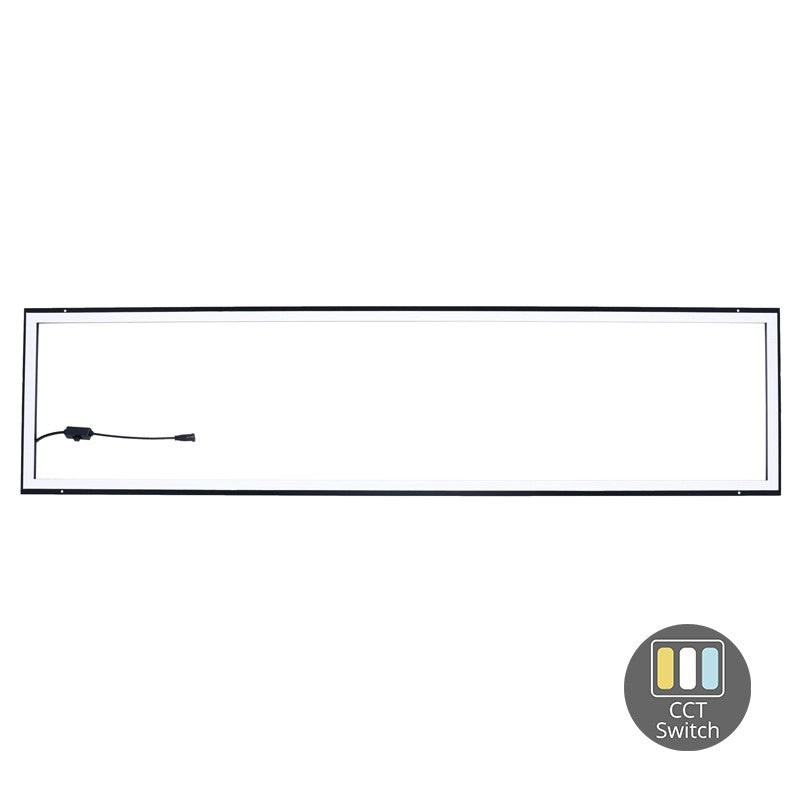

LED frame panel 120x30 cm: Efficient and flexible lighting for various environments

The 120x30 cm LED frame panel is an excellent choice for lighting in offices, schools, and shops. With advanced Edge Lit technology, this panel provides powerful, even illumination that is also energy-efficient. Thanks to the CCT switch, various light colors are available, making this panel widely applicable.

Key specifications of the LED frame panel

This panel is designed with high-end specifications for optimal performance. The key features at a glance:
– Technology: Edge Lit for even light distribution
– Power: 40 Watts
– Light output: 4000 lumens for bright light
– Lumen output: 100 lumens per watt, for energy-efficient use
– Light colors: CCT switch with a choice of 3000K, 4000K and 5000K
– Colour Rendering Index (CRI): >84Ra for natural colour rendering
– UGR value: <23 to minimize glare
– Beam angle: 120 degrees for wide light distribution
– Voltage: 220-240V (AC), suitable for standard mains voltage
– Frequency: 50/60 Hz
– IP value: IP20, suitable for dry indoor areas
– IK value: IK02, resistant to light impacts
– Power Factor: >0.9 for efficient energy conversion
– LED Type: SMD2835, efficient and durable
– Dimensions: 120x30 cm, suitable for system ceilings

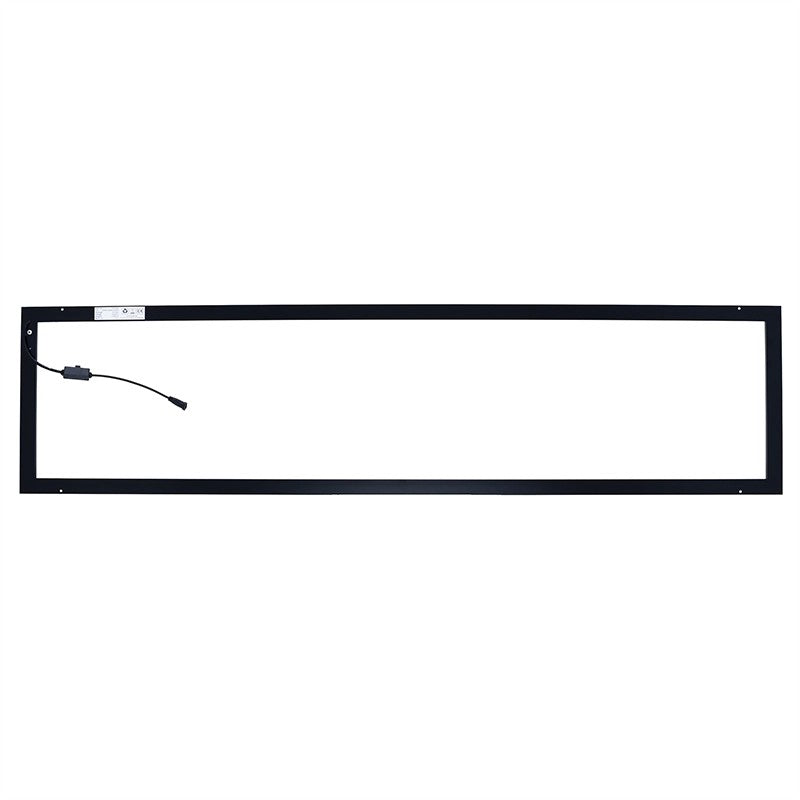

– Color: Black frame for a modern look
– Materials: Aluminum frame and PC diffuser for robustness
– LED Driver: AGT M2E-1000mA for stable current supply
– Warranty: 5 years

Advantages of the LED frame panel

This panel offers numerous advantages that make it suitable for professional spaces:
1. Bright and Natural Lighting: Thanks to the CRI value >84Ra, this panel displays colors vividly and true to life.

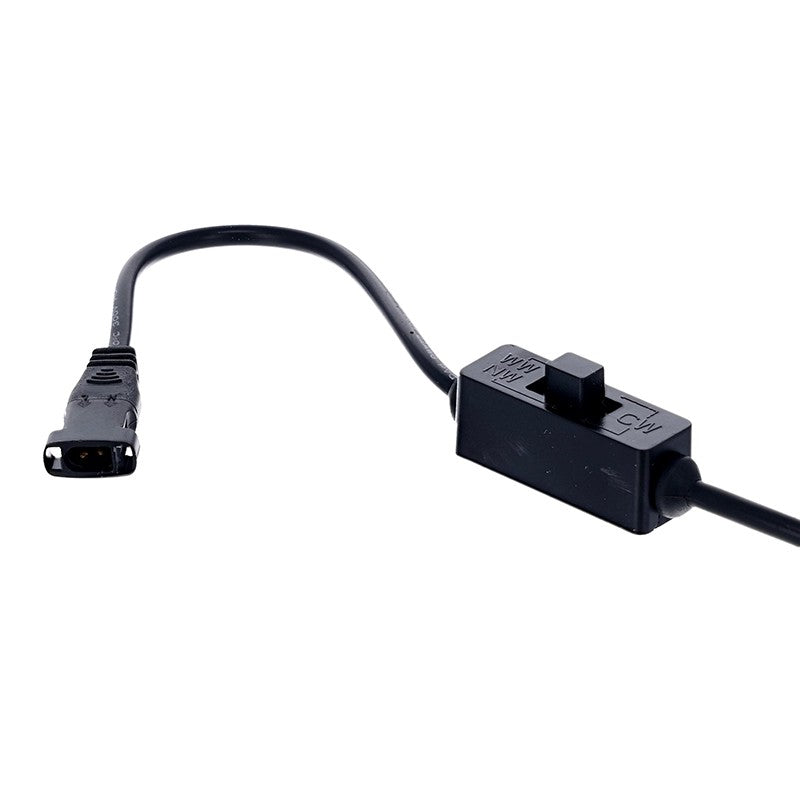

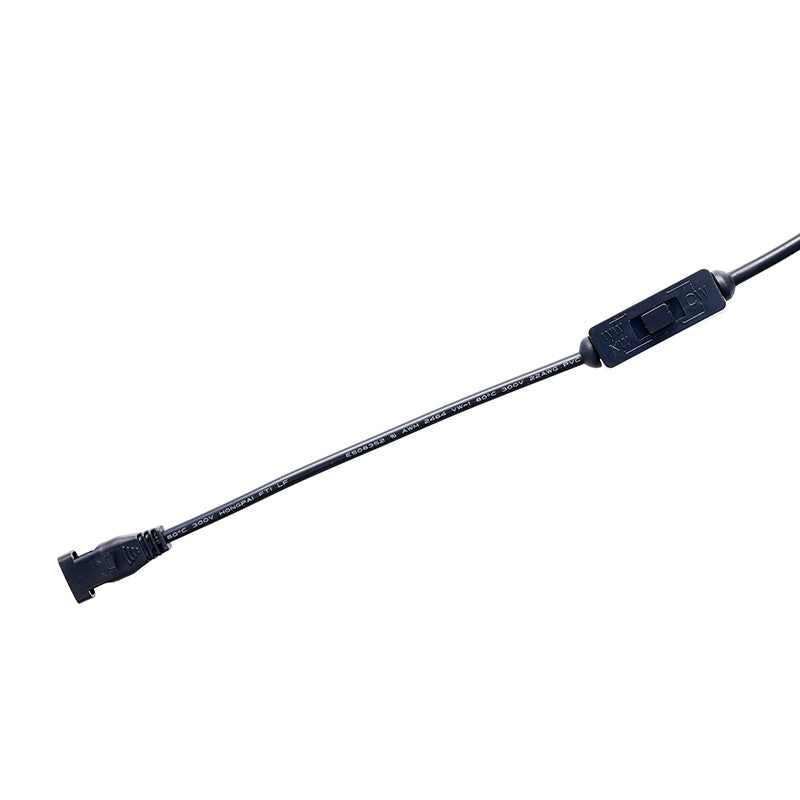

2. Adjustable Light Color: The CCT switch allows you to easily switch between warm white (3000K), neutral white (4000K), and cool white (5000K). This makes the panel versatile.
3. Energy Efficient: With a powerful 4000 lumens light output and low power consumption, this panel helps reduce energy costs.
4. Durable: The panel comes with a 5-year warranty, ensuring a reliable, long lifespan.
5. Anti-glare: The low UGR value <23 ensures a comfortable lighting environment without glare.

Installation and maintenance

With its compact size of 120x30 cm and lightweight aluminum frame, this LED panel is easy to install in suspended ceilings. Its IP20 rating makes it particularly suitable for dry indoor spaces such as offices and hallways. Thanks to its high-quality SMD2835 LEDs and robust PC diffuser, the panel provides years of reliable lighting without any loss of quality.

Applications

This LED panel is ideal for:
– Offices and workplaces
– Schools and classrooms
– Retail spaces and showrooms
– Health centers and waiting rooms

The panel has a timeless design and a neutral black color, making it a perfect fit for virtually any interior. Thanks to its energy efficiency and adjustable light color, the panel offers a flexible, powerful lighting solution for a variety of environments.

In short, the 120x30 cm LED frame panel combines powerful light output with energy efficiency and versatility, making it a smart choice for professional applications.
