LED FRAME LED PANEL | EDGE LIT | 120×30 | 32W | UGR<23 | CCT SWITCH

• 32 watt
• 103 lumens per watt
• UGR <23
• Incl. plug
• 5 year warranty

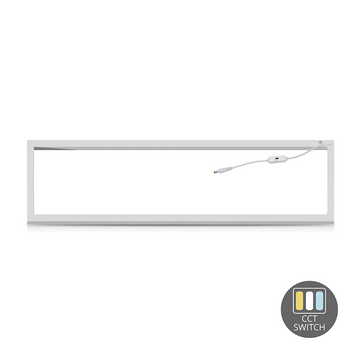

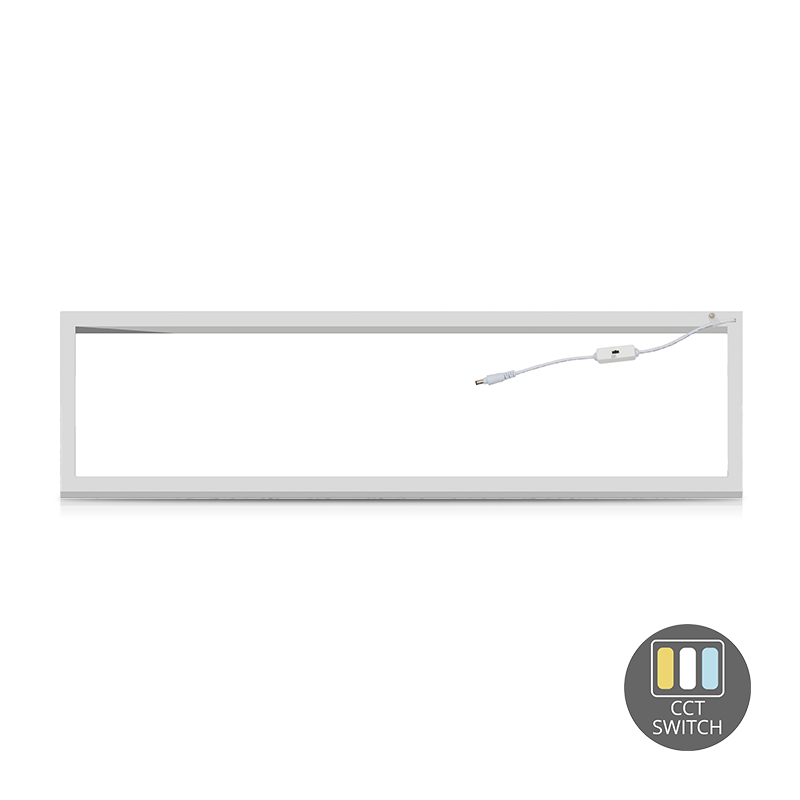

Create luxury and ambiance with the edge lit LED frame panel 120x30 cm

The 120x30 LED frame panel is a stylish and modern solution that adds a luxurious touch to any space. Thanks to the CCT switch, you can easily switch between three light colors: warm light (3000K), neutral light (4000K), and bright light (5000K). This allows you to tailor the light to the desired atmosphere in a lobby, office, or public space, for example. Installation is easy; simply replace a standard 600x600 mm suspended ceiling panel and install the panel. The design ensures that the edges of the panel subtly illuminate the ceiling, creating an elegant look.

Powerful lighting performance

The 120x30 cm panel offers efficient and powerful lighting, with LEDs generating 103 lumens per watt. At 32 watts, this panel produces 3,173 lumens, replacing four traditional 18-watt fluorescent tubes. This not only provides powerful lighting but also reduces energy costs, and with a lifespan of 50,000 hours, you're guaranteed years of use without replacement.

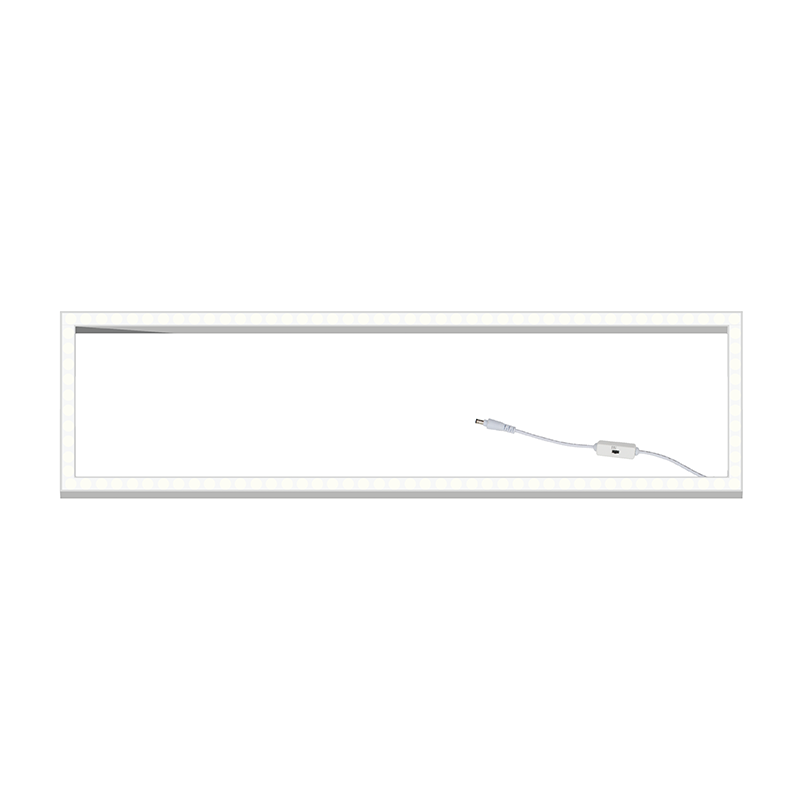

Flexible light settings with edge lit technology

With the CCT switch and EDGE LIT technology you can easily adjust the light color:
– 3000K: For a warm, inviting atmosphere in reception areas
– 4000K: Neutral light, ideal for general areas such as offices and classrooms
– 5000K: Bright light, suitable for workshops and production environments

EDGE LIT technology distributes light across a wide 120-degree angle, ideal for evenly illuminating larger spaces. With a low glare rating (UGR <23) and a color rendering index (CRI >86), this panel provides comfortable lighting without annoying glare and with natural color reproduction.

Durable and reliable design

This LED panel is made of sturdy aluminum and features a polycarbonate diffuser. With an IP20 rating, it's dust-resistant, perfect for indoor use. A power factor of over 0.9 contributes to energy efficiency, and a 5-year warranty ensures reliability.

Specifications at a glance

– Power: 32 watts
– Light output: 3173 lumens
– Light colors: 3000K, 4000K, 5000K (adjustable via CCT switch)
– Color rendering: CRI >86Ra
– Glare value: UGR <23
– Beam width: 120°
– Voltage/Frequency: 220-240V, 50/60 Hz
– Protection: IP20
– Lifespan: 50,000 hours
– Energy label: F
– Warranty: 5 years

In short, this LED frame panel 120x30 cm is a smart choice for those looking for efficient lighting that adds luxury and ambiance to any room, without compromising on performance or durability.
