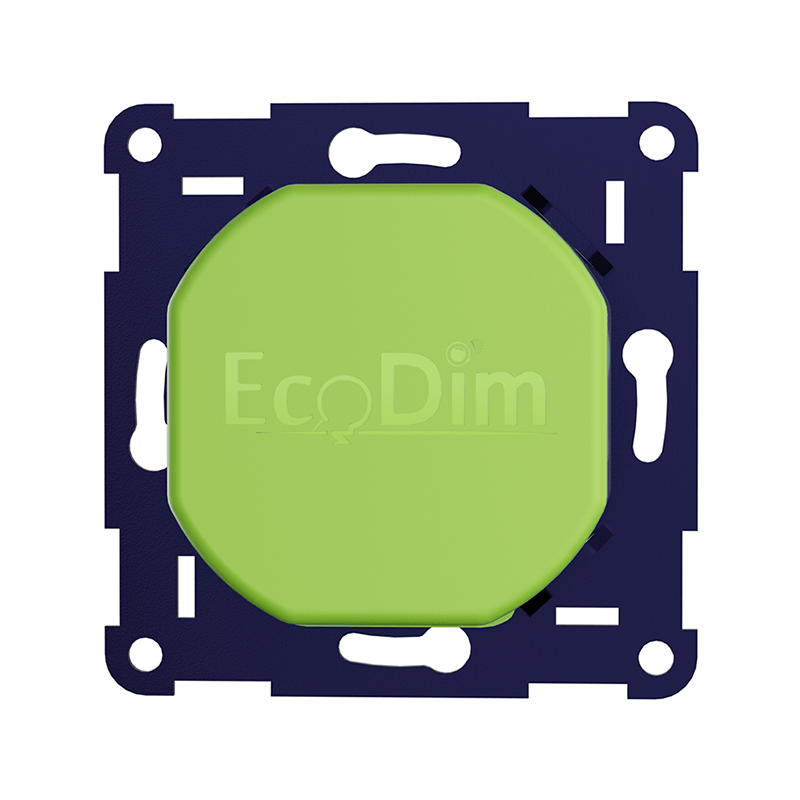

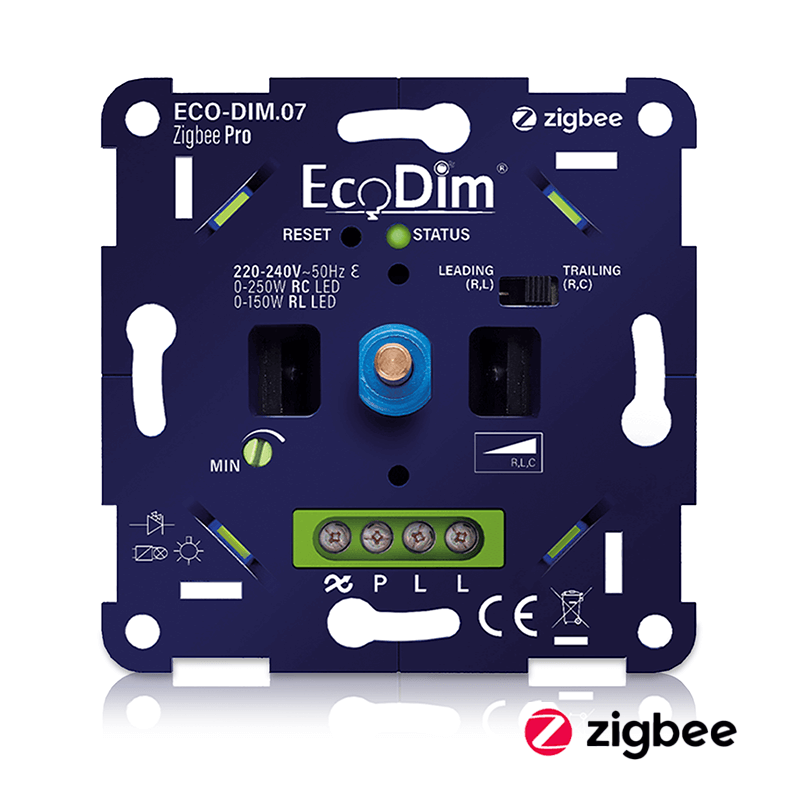

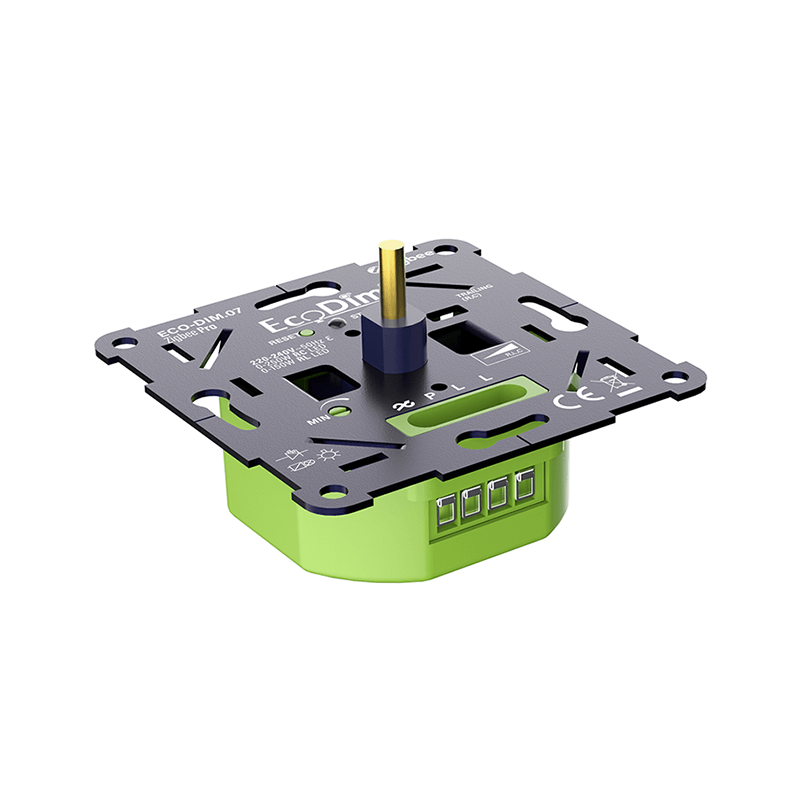

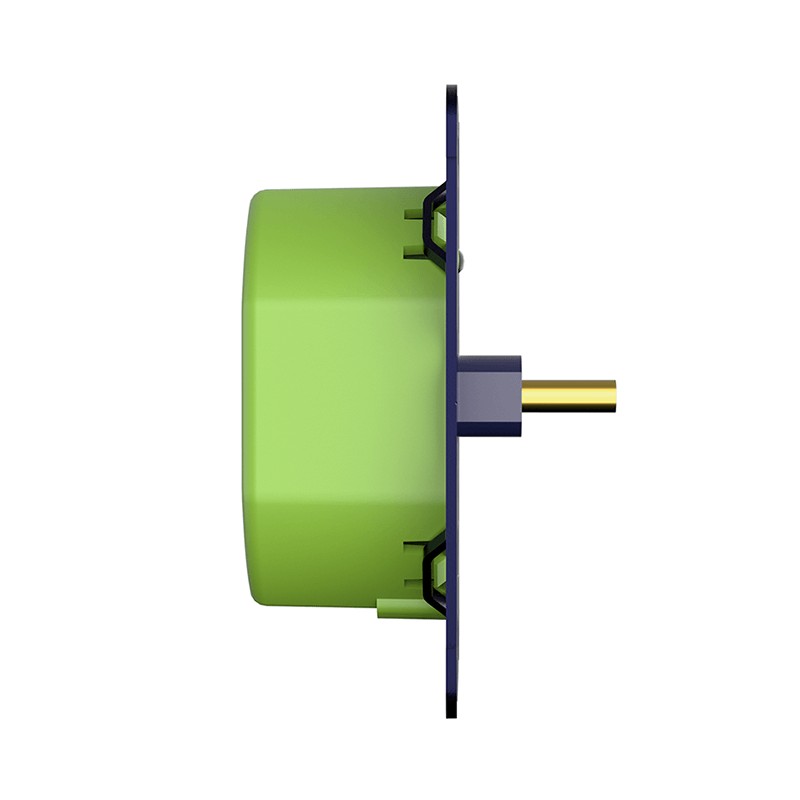

LED DIMMER ZIGBEE | PRO | PUSH/TURN | 0-250W (RLC)

Ecodim Zigbee pro dimmer: Smart and silent lighting

Looking for a simple, hassle-free way to dim your lights? The Ecodim Zigbee pro dimmer lets you adjust your LED or halogen bulbs completely silently. This smart device works seamlessly with Alexa and Google Assistant, allowing you to dim your lights with a voice command without even getting up from the couch.

Flexible and versatile

Whether you use a two-way switch with a pushbutton or simply a wireless ZigBee switch, this dimmer offers unprecedented flexibility. Thanks to its 0-250 watt power output for trailing edge control, you can connect a wide range of LED lights. This means you can easily adjust the ambiance, whether you're at home or in the office.

Compatible with almost all A-brands

One of the major advantages of the Ecodim Zigbee Pro is its broad compatibility with cover materials from top brands like Berker by Hager, Busch-Jaeger, Gira, JUNG, and Kopp. So you don't have to worry about whether the dimmer will fit with the cover materials you already have. Ecodim ensures it always works.

Safe and reliable dimming

Besides its versatility and simplicity, the dimmer is designed with safety in mind. It's protected against overheating, overload, and malfunctions, so you can enjoy stable and reliable light without worry. With convenient minimum and maximum dimming settings, you can easily set the right light intensity to suit your preference.

Easy installation with soft-start function

Installation is a breeze thanks to the included accessories and the dual L-port, which allows for easy connection. Furthermore, the soft-start function ensures your lights turn on smoothly, which is not only better for your eyes but also extends the life of your bulbs.

Technical specifications at a glance

– LED dimmer type: Trailing Edge & Leading Edge / Phase Cut & Phase Lead / RLC
– Power: 0-250 Watt (phase cut LED) / 0-150 Watt (phase cut LED)
– Operation: Push/turn and Zigbee home automation system
– Frequency: 50/60 Hz
– IP value: IP20
– Warranty: 2 years
– Material: Aluminum and metal
– Installation depth: 23.8 mm
– Input voltage: 220-240V(AC)
– Certifications: CE, RoHS, TÜV Rheinland

Smart home compatibility

This dimmer is fully integrated into your smart home and works with numerous popular systems such as:
– Google Assistant/Home (via Zigbee hub)
– Amazon Alexa
– Philips Hue
– Homey
– Futurehome
– Trust (ClickOnClickOff)
– Aduro smart
– Aeotec SmartThings
– WINK
– IKEA Dirigera

Not suitable for TRÅDFRI (can be connected to the IKEA remote control using Touchlink)

Unsuitable covering material

– Merten 57xx
– Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest
– Dimmer button with click system/clamp mounting, such as Busch-Jaeger 6540-7 and Niko XXX-31003

Which lamps is it suitable for?

You can use the Zigbee Pro Dimmer with different types of lamps such as:
– LED lamps (up to 250W)
– Incandescent light bulbs (up to 300W)
– Halogen lamps (up to 300W)
– Low-voltage lamps with electronic transformer/phase cut-off (up to 300W)

With the Ecodim Zigbee Pro Dimmer, you get a versatile and reliable product that allows you to optimally control and customize your lighting to your needs. The combination of ease of use, safety, and compatibility with smart home systems makes this a smart investment for any modern home.
