LED DIMMER ZIGBEE | BASIC | PUSH/TURN | 0-200W

• 0-200 Watt
• Silent dimming
• 220-240V (AC)
• Phase cut-off
• 2 year warranty

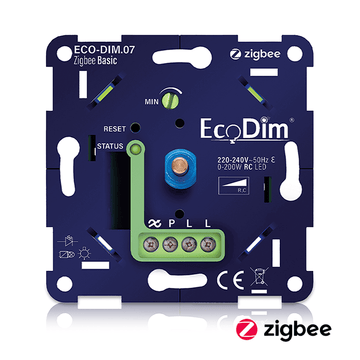

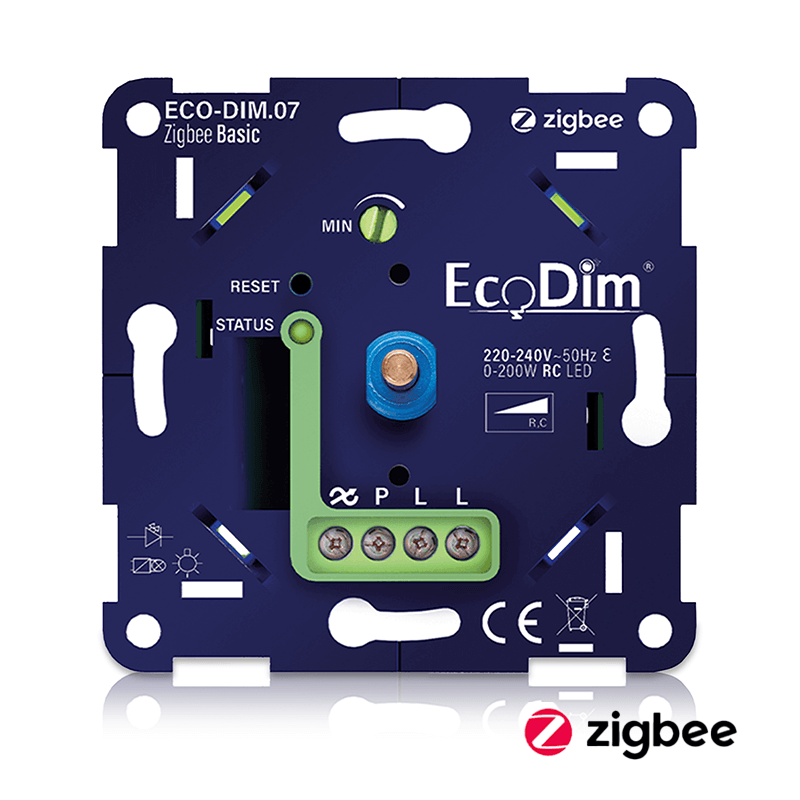

Silent and smart lighting with the Ecodim Zigbee dimmer basic

Easily and silently dim your LED or halogen lighting with the high-quality Zigbee dimmer basic from Ecodim . Thanks to smart control via Alexa or Google Assistant, you can effortlessly control your lighting with voice commands. This sleek dimmer is suitable for two-way switching (with a pushbutton) and can also function as a wireless Zigbee switch. This advanced dimmer offers endless possibilities, both at home and in the office. With a power output of 0-200 watts, it is compatible with a wide range of LED bulbs, guaranteeing stable light and powerful performance.

Universal Zigbee dimmer for any cover material

The Ecodim Zigbee dimmer is universally compatible with almost all major brand cover materials, such as Berker by Hager, Busch-Jaeger, Gira, JUNG, and Kopp. So you don't have to worry about cover material compatibility.

Advanced protection and features

This LED Zigbee dimmer is fully protected against overload, overheating, and interference. This ensures you're guaranteed a reliable, high-quality dimmer. You can also easily adjust the minimum and maximum dimming levels, so your lighting is always perfectly tailored to your needs.

Easy installation and soft-start system

The dimmer can be connected to the live wire via the dual L-port, allowing for flexible installation. The dimmer also features a soft-start system, which switches the lamps on gradually and extends their lifespan. The dimmer comes with all necessary accessories for a hassle-free installation.

Technical specifications

– Article number: ECO-DIM.07 Zigbee Basic
– Dimmer type: Trailing Edge / Trailing Edge / R, C
– Power: 0-200 Watt (LED)
– Operation: Push/turn and Zigbee home automation system
– Voltage: 220-240V(AC)
– Hertz: 50/60 Hz
– IP value: IP20
– Material: Aluminum and metal
– Installation depth: 25.3 mm
– Certifications: CE, RoHS
– Warranty: 2 years
– Protocol: Zigbee 3.0

Compatible home automation systems

This Zigbee dimmer works with various home automation systems, including:
– Google Assistant/Home (via Zigbee hub)
– Amazon Alexa
– Philips Hue
– Homey
– Futurehome
– Trust (ClickOnClickOff)
– Aduro smart
– Aotec SmartThings
– WINK
– IKEA Dirigera

Suitable lamps

– LED lamps 230V (max. 200W)
– Incandescent light bulbs (max. 300W)
– Halogen lamps 230V (max. 300W)
– Low-voltage lamps with electronic transformer (max. 300W)

With the Ecodim Zigbee Dimmer Basic you choose a smart, reliable and silent dimmer that fits into any interior and is suitable for various types of lighting.
