LED DIMMER WIFI | PRESS/TURN | 0-250W (RLC)

• 0-250 Watt
• Silent dimming
• 220-240V (AC)
• Phase cut-off and on
• 2 year warranty

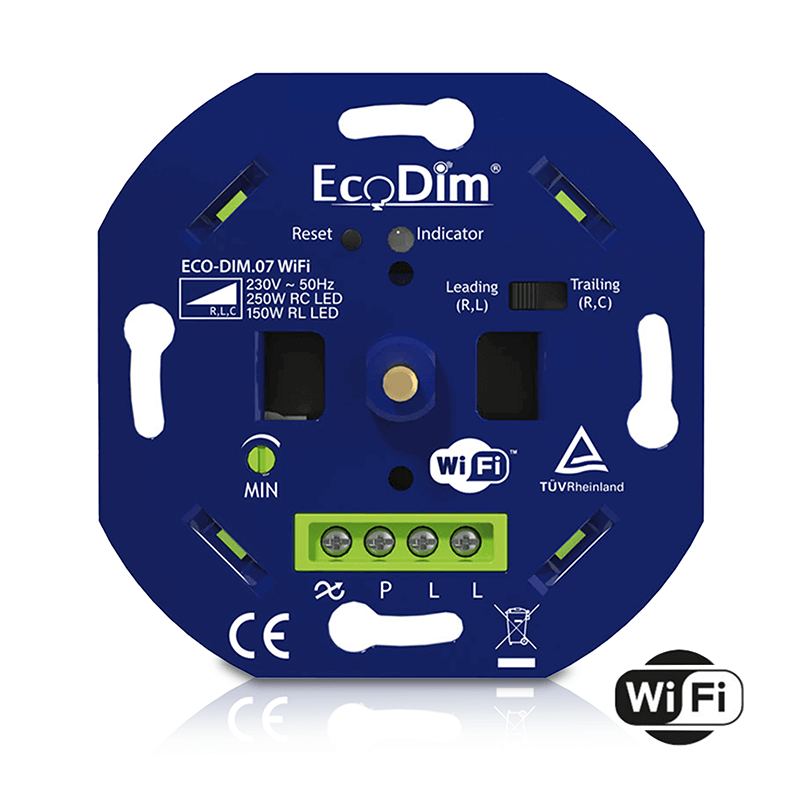

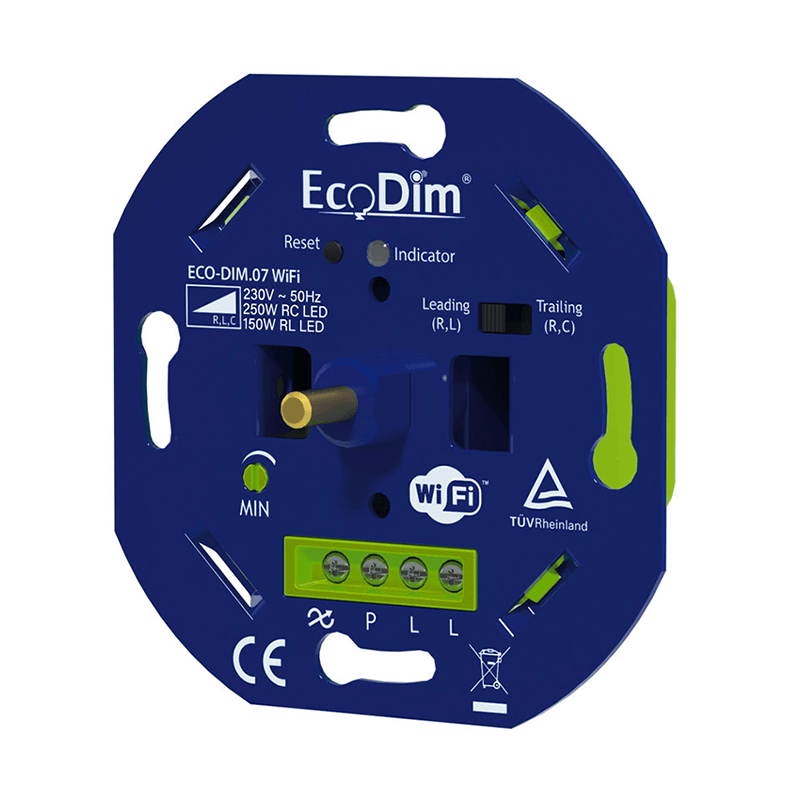

Ecodim WiFi LED dimmer: Smart, silent dimming for LED and halogen lighting

With the Ecodim WiFi LED dimmer, you can easily and silently dim both LED and halogen lighting. Thanks to its WiFi functionality, you can effortlessly control the lighting via Google Assistant or Amazon Alexa. This sleek dimmer is suitable for both two-way switching (with a pushbutton) and wireless WiFi control, providing endless possibilities. With a power output of 0-250 watts, you can connect various LED lamps. Ecodim products are known for their ease of use and are compatible with virtually all brands of cover material.

Universal WiFi dimmer

The Ecodim WiFi dimmer works seamlessly with cover materials from leading brands such as Berker by Hager, Busch-Jaeger, Gira, JUNG, and Kopp, so you can always use the cover material of your choice.

Advanced protection and features

This LED WiFi dimmer offers advanced protection against overload, overheating, and malfunctions. You can also easily adjust the dimming levels to tailor the lighting to your preference. The soft-start system gradually turns the lights on, extending their lifespan.

Easy installation

The dimmer has a dual L-port, allowing for connection to the live wire. Accessories are included for easy installation.

Technical specifications

– Article number: ECO-DIM.07 WiFi
– Dimmer type: Trailing & Leading Edge / Trailing Edge, Leading Edge, Leading Edge / R, L, C
– Power: 0-250W (phase cutting), 0-150W (phase cutting) LED
– Control: Press/turn and WiFi apps
– Voltage: 220-240V(AC)
– Hertz: 50/60 Hz
– IP value: IP20
– Material: Aluminum and metal
– Installation depth: 23.8 mm
– Quality marks: CE, RoHS, TÜV
– Warranty: 2 years
– Protocol: WiFi 2.4 GHz

Compatible smart home apps

The dimmer can be used with:
– Google Assistant/Home
– Amazon Alexa
– Nedis, Trust, Woox, Hombli, Homeylux, Calex, Kruidvat, LSC Smart Connect (Action)

Unsuitable covering material

Not compatible with:
– Merten 57xx
– Dimmer switches with D-shaped hole (such as Wintop, Plieger, GAMMA Everest)
– Dimmer buttons with click system (such as Busch-Jaeger 6540-7 and Niko XXX-31003)

Suitable lamps

Suitable for:
– LED lamps 230V (max. 250W, minimum 2 pieces)
– Incandescent light bulbs (max. 300W)
– Halogen lamps 230V (max. 300W)
– Low-voltage lamps with electronic transformer (max. 300W)

In short, the Ecodim WiFi dimmer offers tailor-made smart lighting, with advanced technology and broad compatibility.
