Universal LED Dimmer | 0-300W | Trailing Edge Control (RLC)

• 0-300W (RC)
• Silent dimming
• 230V
• Phase cut-off and on
• 2 year warranty

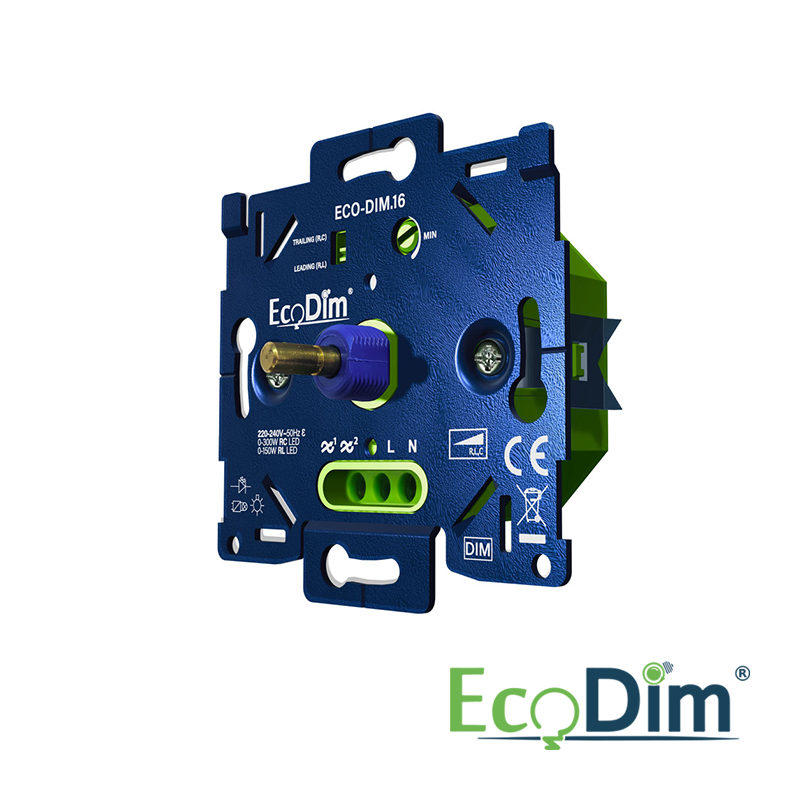

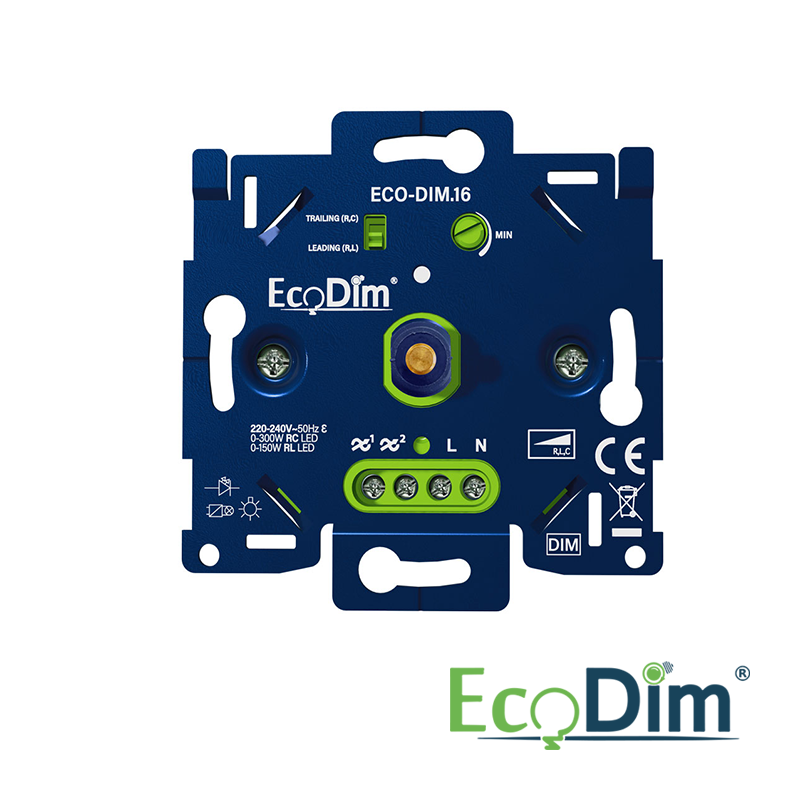

ECO-DIM.16 LED dimmer – Universal solution for your lighting

The ECO-DIM.16 LED dimmer is a versatile, powerful, and reliable solution for dimming various types of lighting. This dimmer supports both leading and trailing edge modes, offering universal compatibility with virtually all dimmable LED, incandescent, and halogen lamps. Whether you're working at home, in the office, or in a commercial environment, the ECO-DIM.16 ensures optimal light stability and ease of use.

Main features of the ECO-DIM.16

The ECO-DIM.16 offers a wide range of features, making it a perfect choice for various lighting setups. Below are the key features:
– Power up to 300W: Supports 0-300W for LED lights (RC) and 0-150W for LED lights (RL).
– Leading Edge (RLC): This dimmer is universal and works in both leading edge and trailing edge modes, ensuring maximum compatibility.
– Compatible with A-brand cover material: Works with well-known brands such as Niko, Berker, Gira, JUNG, and Merten.
– Small installation depth: With an installation depth of only 23.8 mm, this dimmer fits in most flush-mounting boxes, including Helia and Legrand.
– MIN adjustment and automatic MAX detection: This allows you to perfectly adjust the dimming level of your lighting.
– Overload and overheating protection: Safety is guaranteed by built-in protection systems.

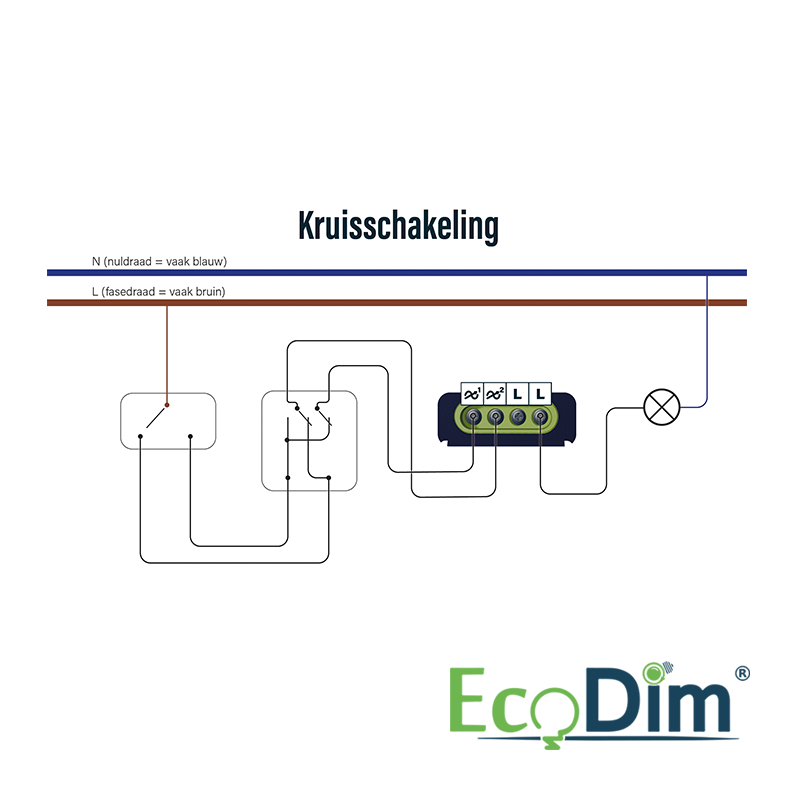

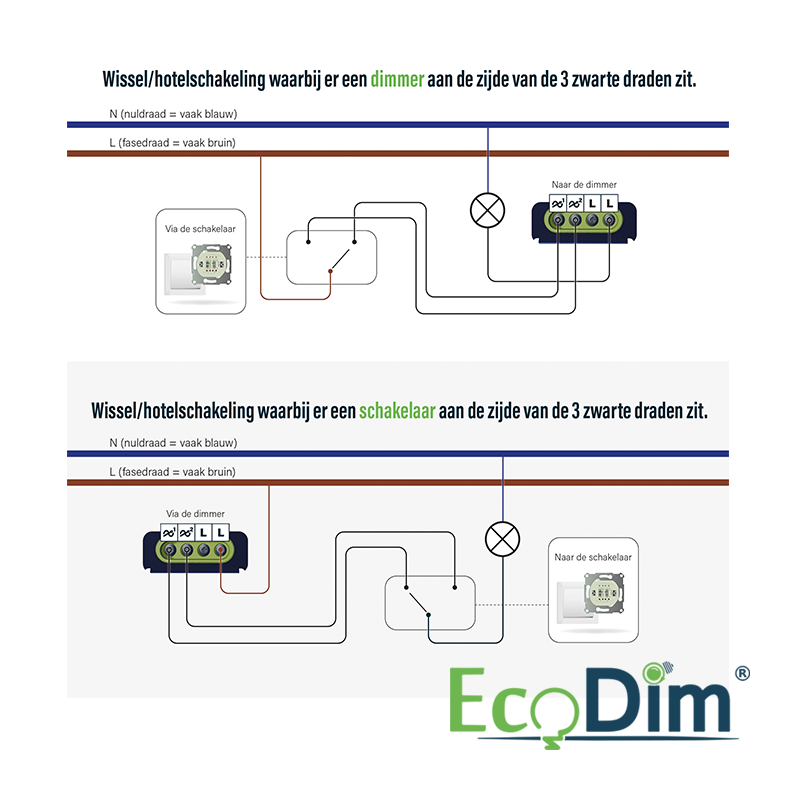

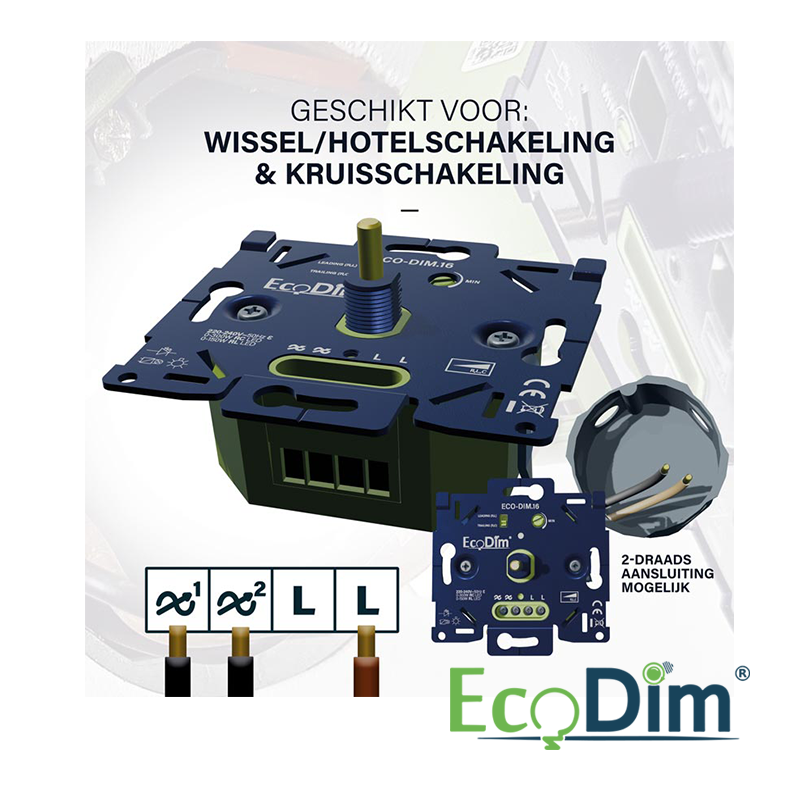

– Suitable for two-way and cross-over switching: Ideal for multiple switches in one room.
– Soft-start system: For smooth switching on of the lights without sudden flashes of light.
– Phase wire connection possible: Thanks to the double L-port.

Technical specifications

– Article number: ECO-DIM.16
– Dimmer type: Trailing edge & leading edge / phase cut-off / R, L, C
– Power: 0-300W LED (RC), 0-150W LED (RL)
– Operation: Push and turn knob
– Installation depth: 23.8 mm
– Packaging: Supplied per piece

Compatibility with cover material

The ECO-DIM.16 is compatible with commonly used brands of cover material, such as:
– Berker by Hager
– Busch-Jaeger (except 6540-7X)
– Gira
– JUNG
– Kopp
– Merten by Schneider (51XX and System M)
– Niko (XXX-31003 and XXX-31000 with adapter, supplied as standard)
– PEHA

Not suitable for:

– Busch-Jaeger 6540-7
– Merten D-Life
– Niko PR20
– Dimmer switches with a D-shaped hole, such as Wintop, Plieger, and GAMMA Everest

Suitable lamps

The ECO-DIM.16 is suitable for dimming various types of lamps, including:
– LED lamps 230V (max. 300W)
– Incandescent light bulbs (max. 300W)
– Halogen lamps 230V (max. 300W)
– Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 300W)

Ease of installation

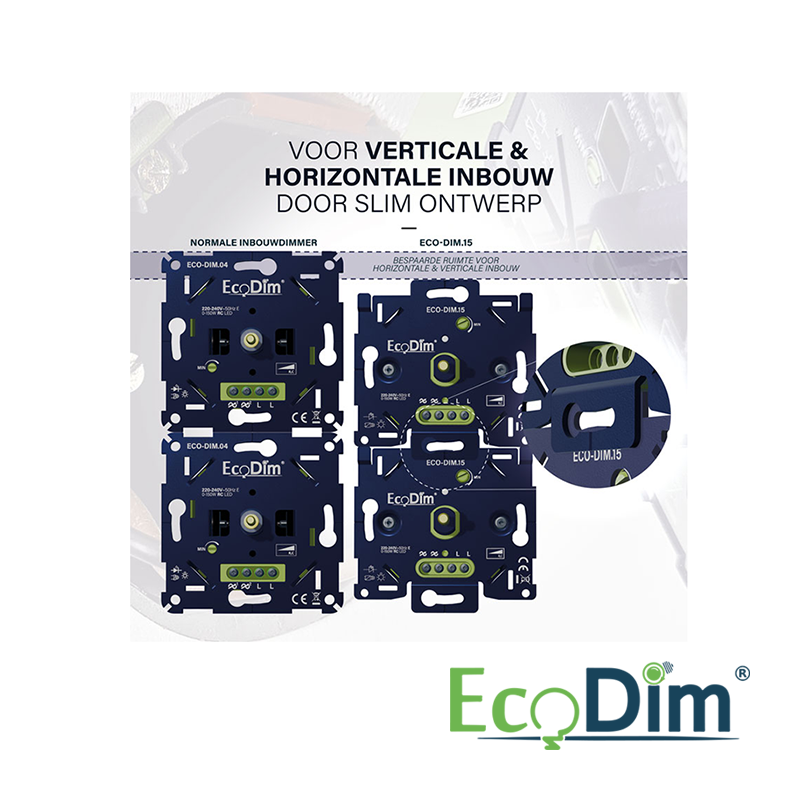

The ECO-DIM.16 offers easy installation thanks to its screw and claw mounting and can be mounted both horizontally and vertically. It is suitable for two-way and two-way switching, meaning you can use multiple switches to control the same light. Its compact mounting depth allows for installation in tight spaces.

Conclusion

The ECO-DIM.16 LED dimmer is the ideal choice for those looking for a universal dimming solution for various types of lighting. Thanks to its compatibility with leading and trailing edge phase control and support for many leading brands of cover material, this dimmer offers both flexibility and ease of use. Add to that the extensive safety features and soft-start system, and you have a dimmer that is both safe and reliable for daily use.
