LED DIMMER UNIVERSAL | 0-150W | TRAIL-CLOSE (RC)

• 0-150 Watt
• Silent dimming
• 230V
• Phase cut-off
• 2 year warranty

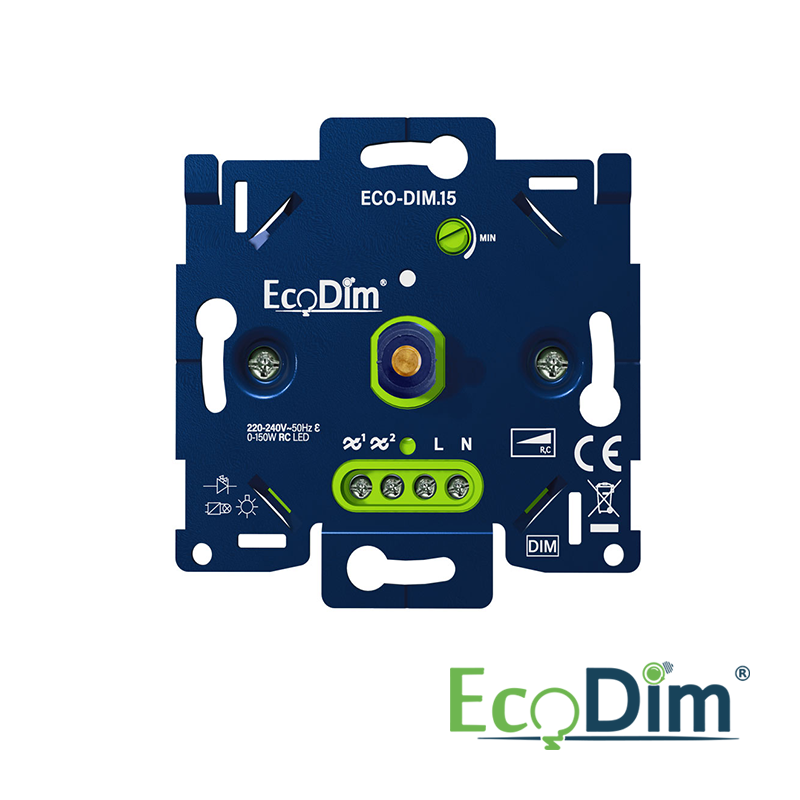

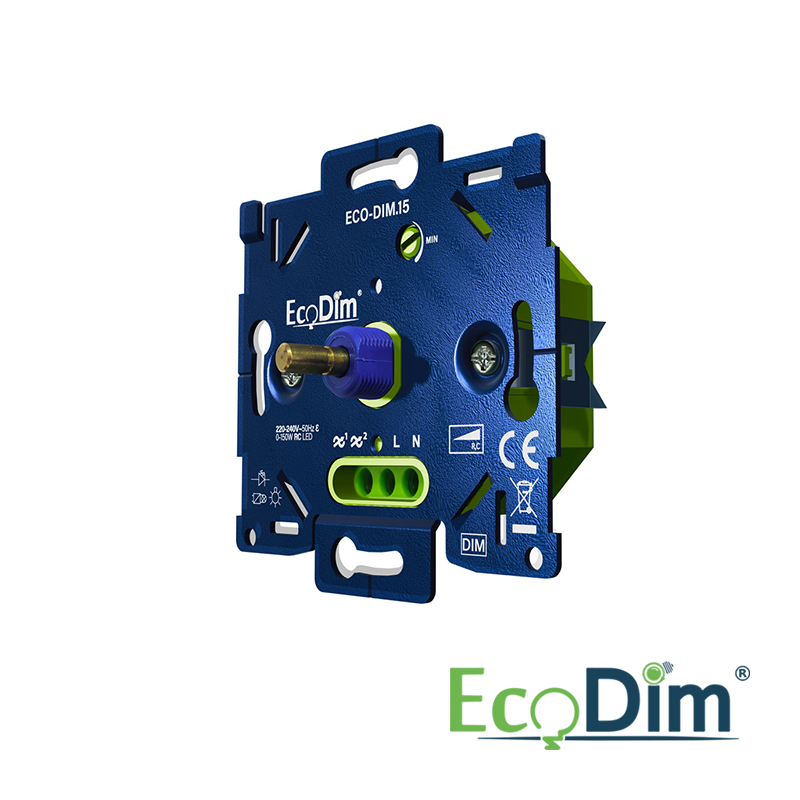

ECO-DIM.15 LED dimmer – Innovative and reliable dimmable solution

The ECO-DIM.15 LED dimmer is a high-quality dimmer specifically designed for optimal dimming of LED lamps up to 150 watts. Thanks to its versatility and smart technology, this dimmer is suitable for various types of lamps, including incandescent and halogen bulbs. The ECO-DIM.15 offers a user-friendly solution for both residential and commercial applications, with a focus on energy efficiency, light stability, and safety.

Main features of the ECO-DIM.15 LED dimmer

This LED dimmer offers several features that facilitate use and optimize performance:
– Power up to 150W: Suitable for LED lamps from 0 to 150 watts.
– Trailing Edge (RC): Ensures silent and stable dimming without flickering.
– Suitable for most brands of cover material: Including well-known brands such as Niko, Berker, Gira, and JUNG.

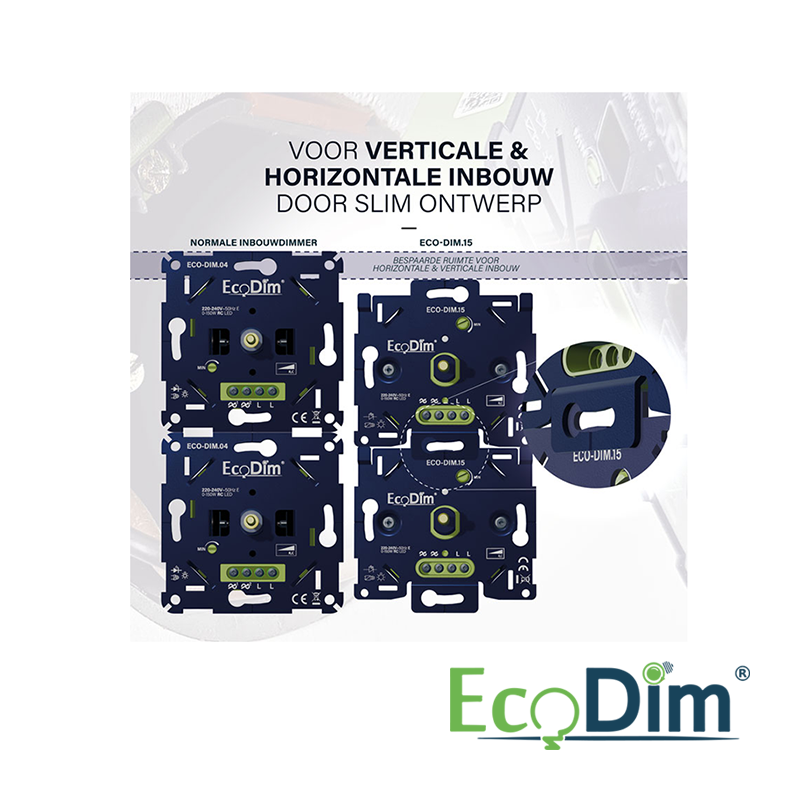

– Horizontal and vertical installation: The dimmer can easily be installed in different positions.
– MIN adjustment and automatic MAX detection: For setting the optimal dimmability of each lamp.
– Protection against overload and interference signals: Safe to use with integrated protection systems.
– Screw and claw mounting: Supplied with flush-mounting clamps for easy mounting.
– Soft-start system: For a smooth transition when switching on the lights.

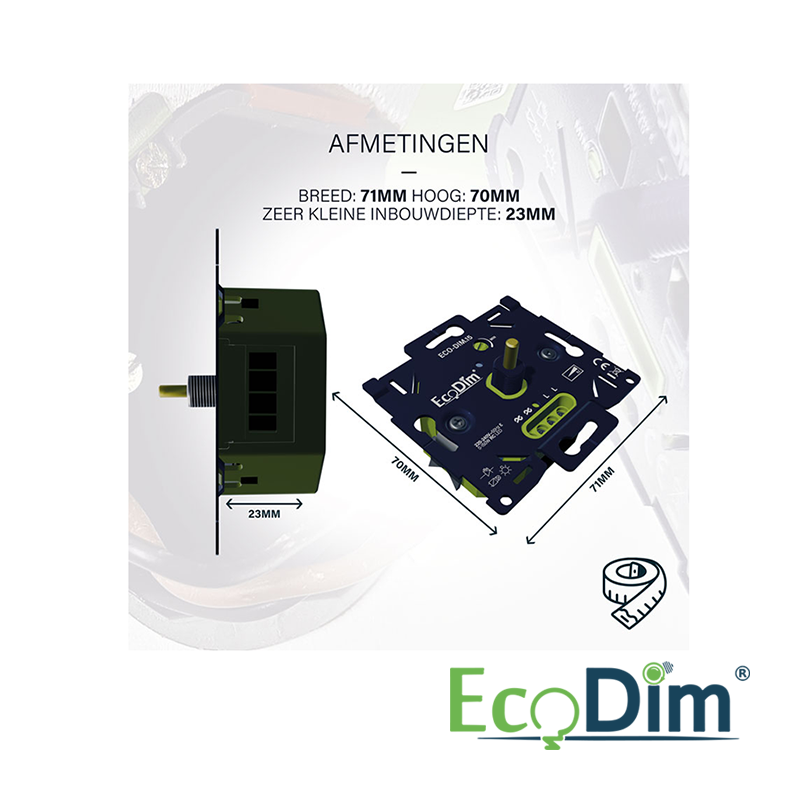

– Small installation depth: With only 23.8 mm, the dimmer is also suitable for installations in small spaces.

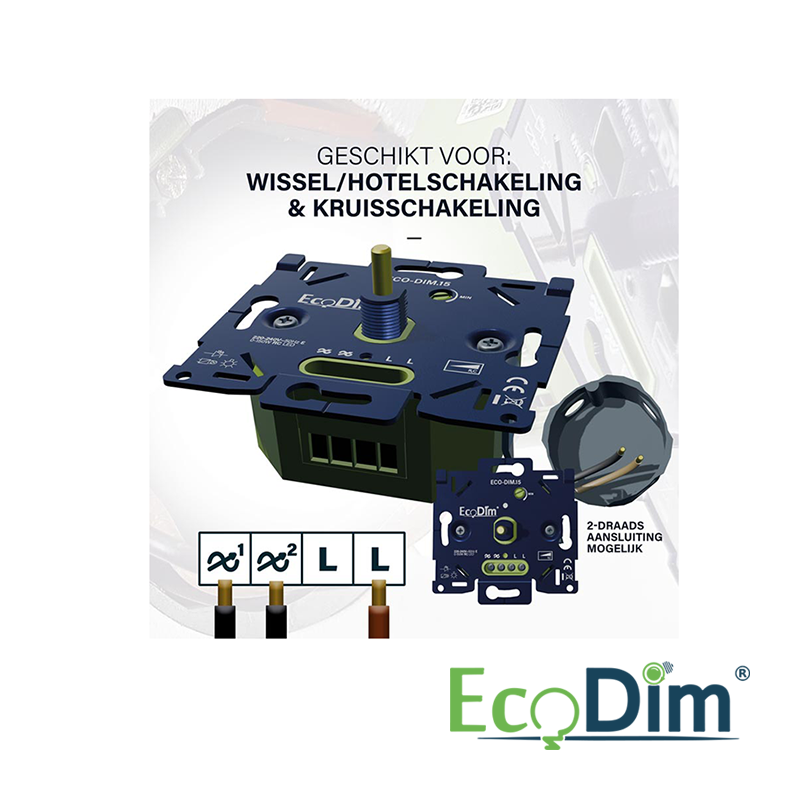

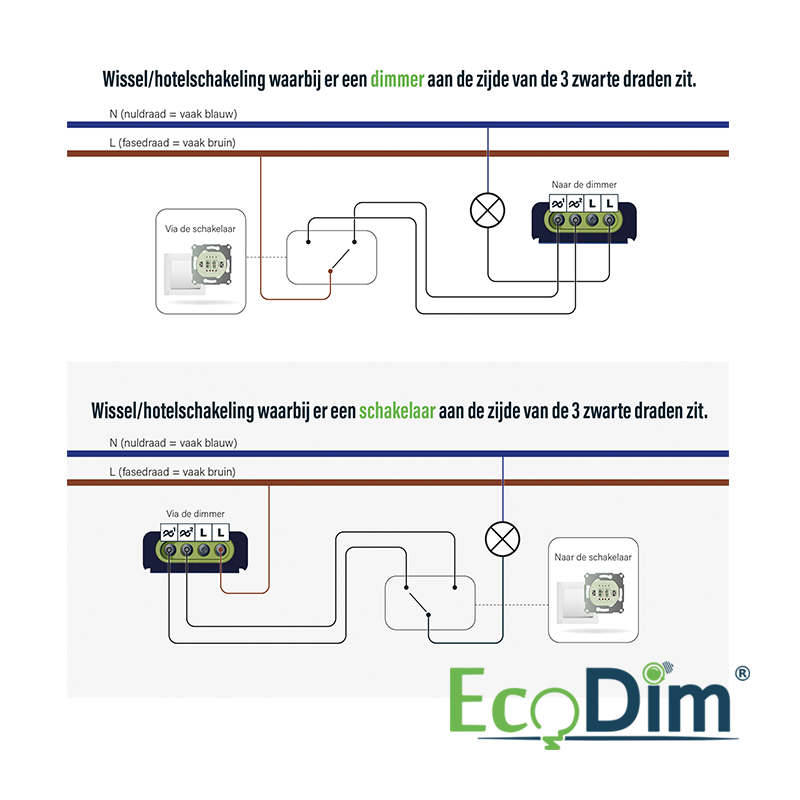

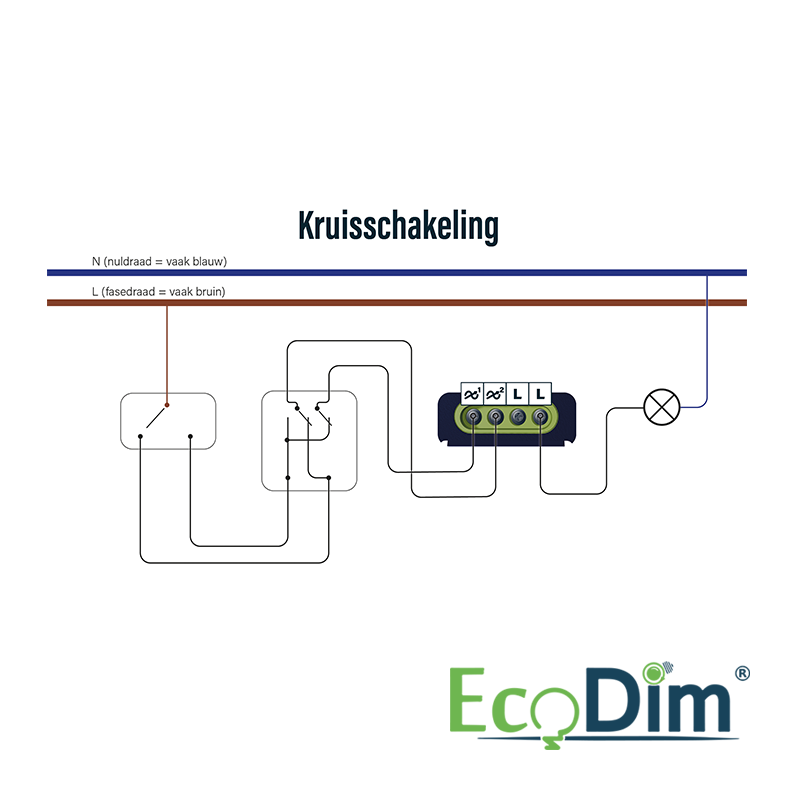

– Two-way and cross-over switching: Can be used in combination with multiple switches.

Technical specifications

– Article number: ECO-DIM.15
– Dimmer type: Trailing edge (phase cut-off) R,C
– Power: 0-150W for LED lamps, 300W for incandescent and halogen lamps
– Operation: Push and turn knob
– Installation depth: 23.8 mm
– Packaging: Packed per piece

Compatibility with cover material

The ECO-DIM.15 is compatible with various brands of cover material, including:
– Berker by Hager
– Busch-Jaeger (except 6540-7X)
– Gira
– JUNG
– Kopp
– Merten by Schneider (51XX and System M)
– Niko (XXX-31003 with adapter, XXX-31000)
– PEHA

Please note that this dimmer is not compatible with certain models, such as Busch-Jaeger 6540-7, Merten D-Life, Niko PR20, and dimmer switches with a D-shaped hole.

Suitable lamps

The ECO-DIM.15 is ideal for dimming various types of lighting, such as:
– LED lamps 230V (up to 150W)
– Incandescent light bulbs (up to 300W)
– Halogen lamps 230V (up to 300W)
– Low-voltage lamps with electronic transformer (up to 300W), such as LED lamps with transformer

*Provided that the lamps are suitable for a phase-cutting/trailing edge LED dimmer.

Ease of installation

The ECO-DIM.15 is easy to install thanks to its dual L-port, which allows for continuous connection of the phase wire. Whether for a standard installation or a two-way switch, this dimmer is designed for both professional installers and DIY enthusiasts. Furthermore, it is suitable for both horizontal and vertical mounting, making it suitable for a variety of applications.

Conclusion

The ECO-DIM.15 LED dimmer is a versatile, reliable, and energy-efficient choice for dimming various types of lamps. With a wide range of compatible cover materials, easy installation, and advanced features like MIN adjustment and a soft-start system, this dimmer offers an excellent solution for every lighting need. Whether you're working at home, in the office, or in a commercial environment, the ECO-DIM.15 ensures an optimal lighting experience.
