LED DIMMER DUO | 2x 0-100W | TRIM-OFF (RC)

• 2 x 0-100 Watt
• Silent dimming
• 220-240V (AC)
• Phase cut-off
• 2 year warranty

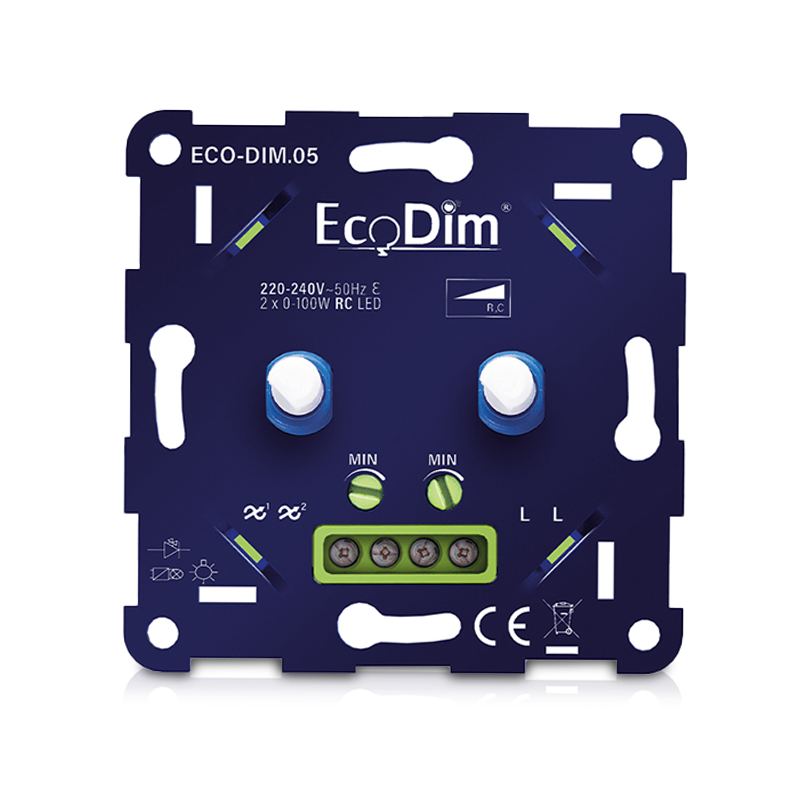

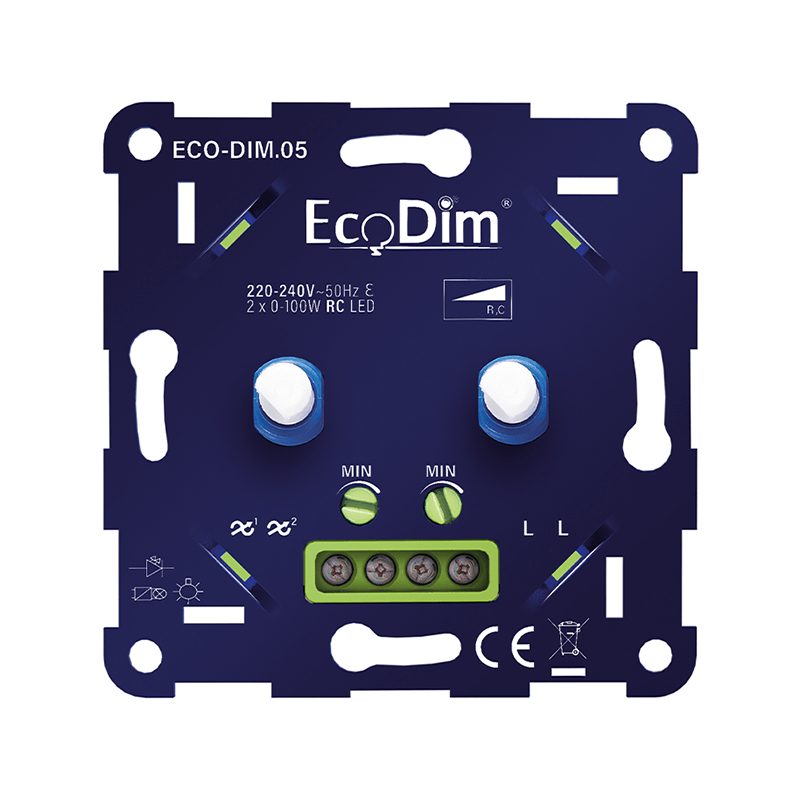

Ecodim phase cut-off dimmer duo: For silent dimmable lighting

With the Ecodim phase-cut dimmer duo, you can silently dim two different lamps. This high-quality dimmer is designed for both two-way and two-way switching, giving you endless possibilities to adjust your lighting. With 2x 0-100 watts per channel, you can connect a wide range of LED lamps. You can count on quality, stable light, and powerful performance, allowing you to adjust the lighting in your home or office precisely to your liking. Ecodim dimmers are known for their user-friendliness and compatibility with virtually all brands of cover material.

Universal compatibility

This universal phase cut dimmer is suitable for use with almost all A-brand cover material, including:
– Berker by Hager
– Busch-Jaeger
– Gira
– JUNG
– Kopp

You don't have to worry about cover material compatibility. This dimmer fits your needs perfectly.

Advanced functionality and security

The Ecodim dimmer is fully protected against overload, overheating, and interference signals. This guarantees reliable, high-quality operation. You can easily set the minimum and maximum dimming values, allowing you to dim the lights precisely to your preference.

Transfer and soft start

The dimmer offers the option of connecting the live wire through the double L-port. It also features a soft-start system, allowing your lights to turn on smoothly without flickering. This ensures a smooth start.

General information

Here are some key specifications of the Ecodim phase cut-off dimmer duo:
– Item number: ECO-DIM.05
– Dimmer type: Trailing Edge / Phase cut-off / R,C
– Power: 2x 0-100 Watt LED
– Operation: Push/turn
– Input Voltage: 220-240V (AC)
– Hertz: 50/60 Hz
– IP value: IP20
– Material: Aluminum and metal
– Installation depth: 23.8 mm
– Warranty: 2 years
– Packaging: Individually packed

Suitable lamps

The Ecodim phase cut-off dimmer is compatible with the following lamps:
– LED lamps 230V (max. 2x 100W)
– Incandescent light bulbs (max. 100W)
– Halogen lamps 230V (max. 100W)
– Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 100W)

Conclusion

With the Ecodim phase-cut dimmer duo, you get a reliable and versatile solution for all your dimmable lighting. The combination of functionality, ease of use, and safety makes this dimmer an excellent choice for any interior.
