HF | MOTION DETECTOR | FOR NOMOS PRO CEILING LIGHTS

• Microwave HF Sensor
• Motion detector
• For Nomos Pro
• Including remote control
• 5 year warranty

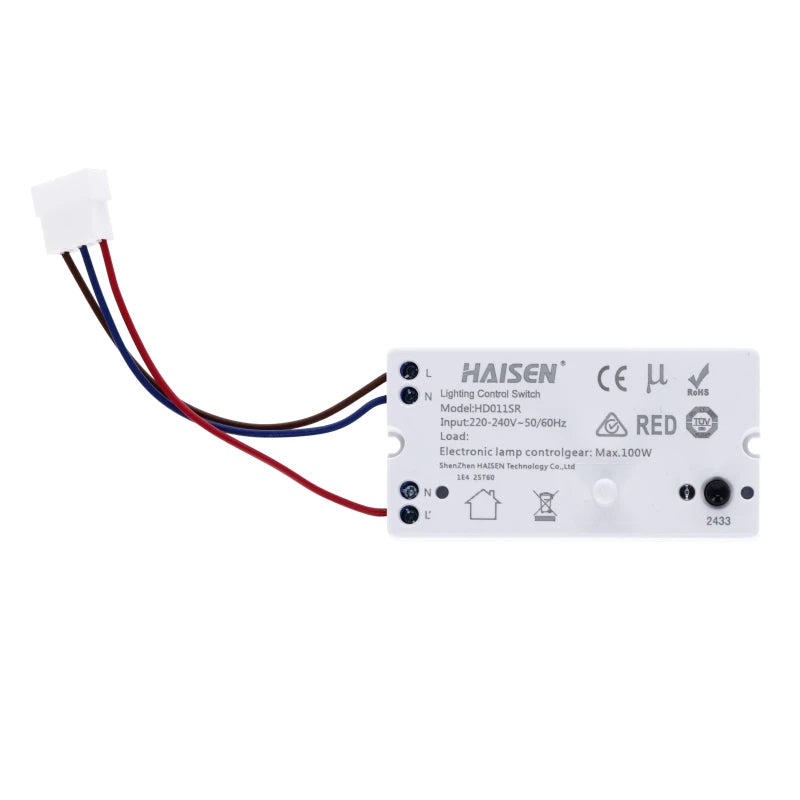

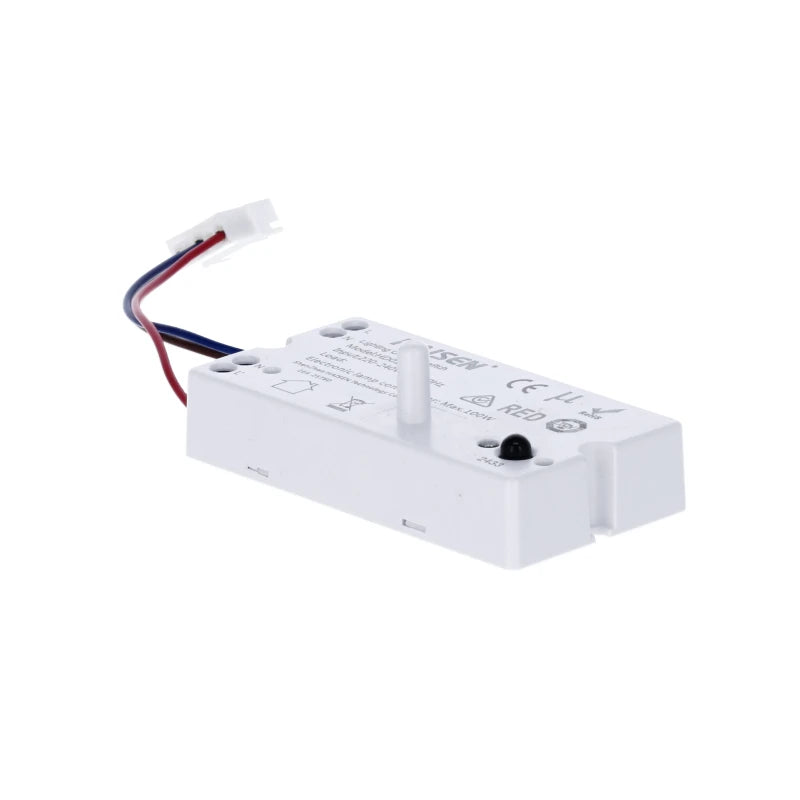

Microwave HF Motion Detector for Dimmable Nomos Pro Ceiling Lights – Smart and Safe Lighting

Optimize your lighting system with this advanced HF microwave motion detector , specifically designed for dimmable Nomos ceiling lights. This sensor offers a reliable and energy-efficient solution for automatic lighting, ideal for both residential and commercial applications.

Easy installation

Installing the HF microwave sensor is simple:
1. Place the sensor in the designated slot in the ceiling light.
2. Connect the corresponding power cables according to the wiring diagram.

Your ceiling light with sensor is now ready for use.

Intuitive remote control

The included remote control makes setting up the sensor easy:
1. Insert a CR2032 battery into the remote control and aim it at the front of the light.
2. Press the reset button and configure the settings as desired.

Upon successful installation, the indicator will turn off briefly and then turn back on to confirm.

Adjustable sensor parameters

Adjust sensor settings for optimal performance:
– ON/OFF: Turns the lamp on or off.
– RESET: Restores the sensor to factory settings.
– Sensitivity: Set to 50% (less sensitive) or 100% (more sensitive).
– Daylight sensor: Choose between always on (disable) or set to 2 lux, 10 lux, or 50 lux.
– Startup time: Select 5 seconds (for tests), 1 minute, 5 minutes, or 10 minutes.

Important points of interest

– Compatibility: Power Dimming may not work properly with fixtures equipped with high-frequency sensors.
– Sensor combination: It is not possible to connect high-frequency microwave sensors and PIR sensors at the same time.

Choose this HF microwave motion detector to provide your dimmable Nomos ceiling lights with smart, automatic lighting that is both energy-efficient and user-friendly.
