LED DIMMER | Z-WAVE | PRESS/TURN | 0-250W (RLC)

• 0-250 Watt (RC)
• Silent dimming
• 220-240V
• Phase cut-off and on
• 2 year warranty

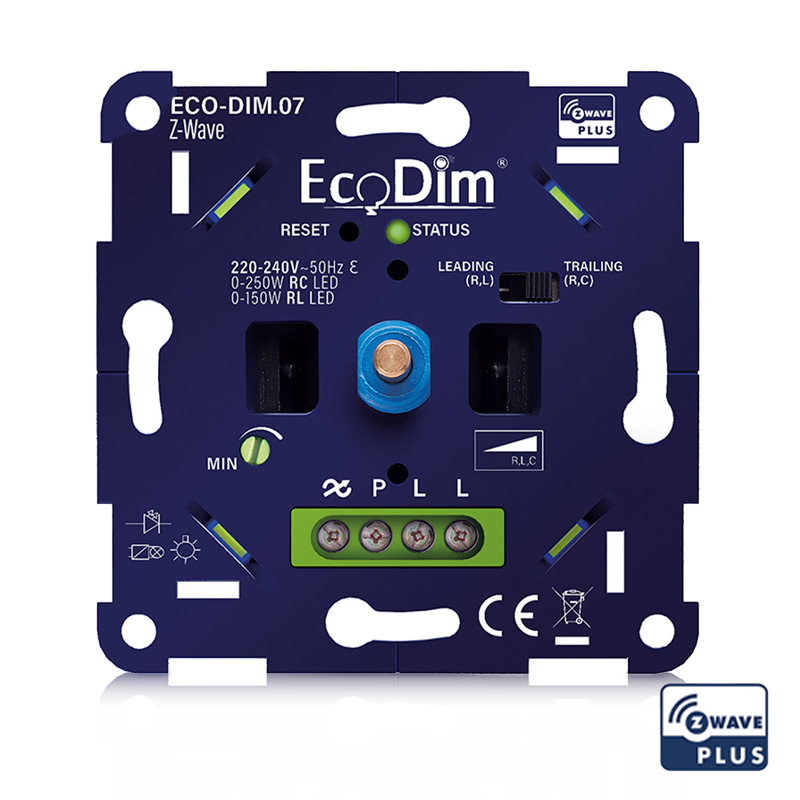

ECO-DIM.07 Z-Wave LED dimmer – Smart lighting for your smart home

The ECO-DIM.07 Z-Wave LED dimmer is the perfect solution for controlling and dimming your lighting in a smart home environment. With Z-Wave support and compatibility with voice assistants like Google Assistant and Amazon Alexa, this dimmer offers a smart and flexible way to adapt your lighting to any situation. Whether you use halogen, LED, or incandescent bulbs, the ECO-DIM.07 Z-Wave ensures a smooth and silent dimming experience, with additional features like energy consumption metering and soft-start technology.

Key features of the ECO-DIM.07 Z-Wave

– Z-Wave certified: Perfectly integrated into any Z-Wave smart home system.
– Suitable for RLC type lighting: Supports leading and trailing edge control for a wide range of lamps.
– Small installation depth: Only 23.8 mm, fits in most standard flush-mounted boxes.
– Optimal dimmability: Ensures stable, flicker-free light with any type of dimmable LED lamp.
– Built-in safety: Protection against overload, overheating and electrical interference signals.
– Voice support: Compatible with Google Assistant and Amazon Alexa for easy voice control.
– Consumption meter: Tracks the energy consumption of your lights via your smart home app.

Technical specifications

– Article number: ECO-DIM.07 Z-Wave
– Dimmer type: Leading edge and cutting edge (RLC)
– Power: 0-250W for RC lamps / 0-150W for RL lamps
– Control: Push/turn button and Z-Wave apps
– Dimensions: 71×71 mm
– Installation depth: 23.8 mm
– Protocol: Z-Wave plus (supports Z-Wave 800 series)
– Frequency: 868 MHz
– Certification: CE

Compatible smart home apps

The ECO-DIM.07 Z-Wave is compatible with popular smart home systems and apps, such as:
– Google Home/Nest (via Z-Wave hub)
– Homey
– FIBARO
– Homee
– Futurehome
– WINK

Suitable brands of covering material

This dimmer works seamlessly with various brands of cover material, including:
– Berker by Hager
– Busch-Jaeger (except 6540-7X)
– Gira
– JUNG
– Kopp
– Merten by Schneider (51XX and System M)
– Niko (XXX-31003 and XXX-31000 with Niko adapter, supplied as standard)
– PEHA

Not suitable for:
– Busch-Jaeger 6540-7
– Merten D-Life
– Niko PR20
– Dimmer knobs with D-shaped holes, such as Wintop, Plieger and GAMMA Everest.

Suitable lamps

The ECO-DIM.07 Z-Wave supports various types of lamps, such as:
– LED lamps 230V phase cut-off (max. 250W)
– LED lamps 230V phase cut (max. 150W)
– Incandescent light bulbs (max. 300W)
– Halogen lamps 230V (max. 300W)
– Low-voltage lamps with electronic transformer/RC (max. 300W)

Smart installation and ease of use

The ECO-DIM.07 Z-Wave is easy to install in existing systems without an additional neutral wire. It's also suitable for two-way and two-way switching with a pushbutton, giving you the flexibility to use multiple switches in a single room. Thanks to its compact mounting depth, this dimmer can even be installed in smaller spaces, and its soft-start technology ensures your lights start smoothly and flicker-free.

Conclusion

With the ECO-DIM.07 Z-Wave LED dimmer, you're getting not only a highly functional dimmer but also a smart solution that integrates seamlessly into any Z-Wave smart home system. Whether you choose LED, incandescent, or halogen bulbs, this dimmer offers optimal performance, safety, and ease of use. Add to that the energy consumption meter and voice assistant compatibility, and you have the perfect dimmer for any modern home.
