Product Description
- 45 Watt
- 117 lumen per watt
- UGR<19
- Incl. plug
- 3-year warranty

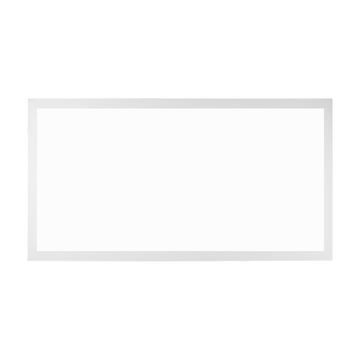

Efficiently illuminate your space with the 120x60cm back-lit LED panel

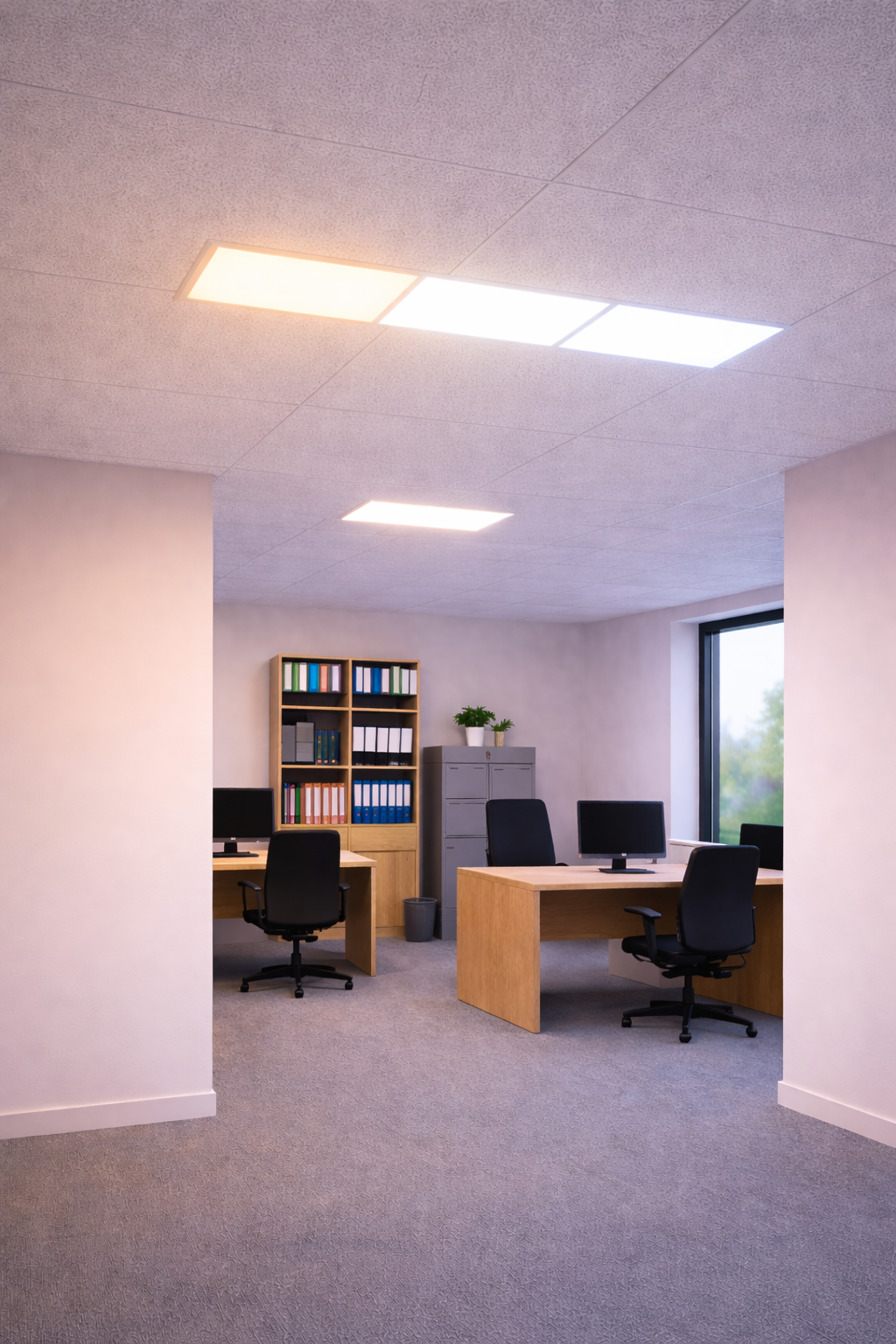

This 120x60cm back-lit LED panel is an excellent choice for providing your office, classroom, or other workspaces with energy-efficient and uniform lighting. By placing the lenses at the back of the panel, the light is beautifully and evenly distributed across the entire surface. This ensures bright, pure light without shadows or dark spots. Back-lit panels have another advantage: they have a longer lifespan because the LEDs are placed further apart. This provides better cooling, which prevents the panel from aging quickly or developing visible stains. As a result, the panel maintains its neat appearance for longer. Furthermore, the panel comes with an external, non-dimmable driver and a 1.5-meter cable with a Euro plug. If you want to dim the panel, you can easily connect a dimmable driver.
Key Features
The back-lit LED panel is designed for high efficiency. With 117 lumens per watt and a power of 45 watts, it is powerful enough to illuminate large spaces. The panel provides a total light output of 5260 lumens, which is equivalent to replacing 4 x 36 watt fluorescent tubes. In addition, this panel offers an impressive lifespan of 50,000 operating hours, meaning you won't have to worry about replacements for a long time.
Adjustable light color
Thanks to the CCT switch, you can adjust the light color of the panel to suit your specific needs. You can choose between three different color temperatures:
– 3000K: Suitable for a warm, cozy atmosphere, ideal for reception areas, changing rooms, or primary schools.
– 4000K: A neutral white color, perfect for office spaces, classrooms, and showrooms.
– 5000K: Bright, cool lighting that is ideal for workspaces and warehouses.
The UGR value of <19 ensures minimal to no glare, making it comfortable for spaces where concentrated work is performed. In addition, the panel has a CRI value of 85, which guarantees good color rendering. With a wide beam angle of 120º, you can effectively and evenly illuminate large spaces without needing many panels.
Easy installation and protection
This LED panel is easy to install, ensuring a neat and sleek finish in the space. It has an IP22 rating, meaning it is suitable for dry indoor environments such as offices, classrooms, or shops.
Reliable warranty
The 120x60cm back-lit LED panel comes with a 3-year warranty, ensuring you long-lasting, reliable lighting without worries.
| Technical Specifications | |
| Technique | Back-lit |
| Wattage | 45 Watt |
| Lumen Efficiency | 117 lm/W |
| Luminous Flux | 5260 Lumen |
| Replaces | 4 × 36W fluorescent |
| Light Color | 3000K 4000K 5000K |
| CRI | >85Ra |
| UGR | <19 |
| Beam Angle | 120° |
| Voltage | 220–250V AC |
| Hertz | 50/60 Hz |
| IP Rating | IP22 |
| IK Rating | IK06 |
| Energy Label | E |
| Dimensions | |
| Length | 1195 mm |
| Width | 595 mm |
| Height | 40 mm |
| Driver Specifications | |
| Dimmable | Optional |
| Power Factor | >0.95 |
| Warranty Terms | |
| Warranty | 3 years |
| Lifespan | 50 |
| Operating Temperature | -20°C to +45°C |
| Packaging Information | |
| Supplied Including | 1.5 m cable driver Euro plug |
| Quantity in master carton | 6 pieces |
| Other Information | |
| Certifications | CE |
| Product Color | White |
| More | |
| Weight (gross) | 3.865 kg |
| Amperage | 1200 mA |
| Weight (net) | 1.7 kg |
