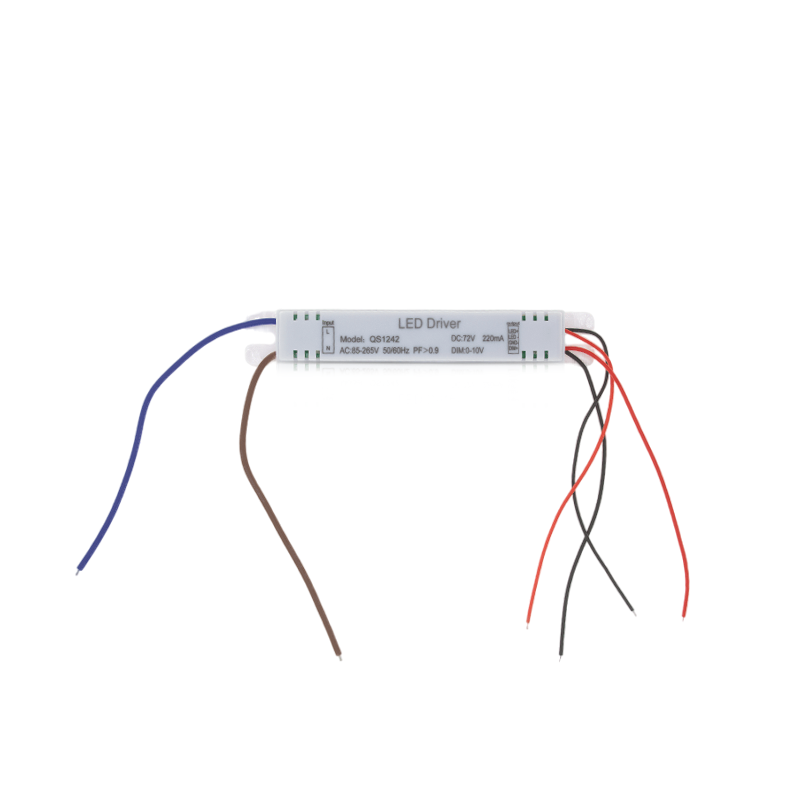

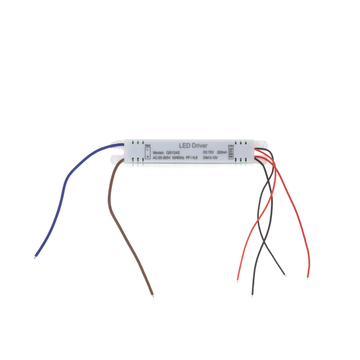

0-10V | Constant Current | Dimmable | Driver | 15.5W

• 15.5 Watt
• 85-264V input
• 72V output
• 0-10V dimmable
• 2 year warranty

LED Driver 1-10V Dimmable – 15.5 Watts | Compact, Powerful, and Efficient

Are you looking for a reliable 1-10V dimmable LED driver to efficiently control your LED lighting? This compact and powerful LED driver is designed for both professional and residential applications where stable performance and dimmability are key. Thanks to its high efficiency, wide input voltage, and precise current output, this driver is ideal for a wide range of LED projects.

Powerful LED Driver with 1-10V Dimming

This dimmable LED driver uses a 1-10V signal for infinitely variable dimming, allowing you to easily set the desired light intensity. Perfect for applications in offices, showrooms, homes, or other environments where lighting control is essential.

Technical Specifications

• Wattage : 15.5 W
• Input Voltage (AC) : 85–264 V
• Frequency : 50/60 Hz
• Output voltage (DC) : 72 V
• Output current : 220 mA
• Power Factor : > 0.9 – energy efficient and stable
• Dimmable : Yes, via 1-10V control
• Dimensions :
• Length: 145 mm
• Width: 46 mm
• Height: 22 mm
• Color : White
• Material : Plastic – lightweight and heat resistant

Your Benefits

✔ Professional LED driver 1-10V dimmable for stable light control
✔ High power factor (>0.9) for energy efficiency
✔ Wide input voltage (85–264V AC) – suitable for various installations
✔ Infinitely dimmable via 1-10V signal
✔ Compact design – ideal for built-in installation and limited spaces
✔ Robust plastic housing in white

Applications

This dimmable LED driver is ideal for:

• Commercial and industrial LED installations
• Dimmable lighting in offices and shops
• Residential lighting with 1-10V dimming systems
• Architectural and decorative LED projects

Thanks to the stabilized output current of 220 mA and output voltage of 72 V, this driver offers consistent performance for high-quality LED fixtures.

Order Now – For Reliable and Dimmable LED Control

Invest in quality with this powerful 1-10V dimmable LED driver . Whether you're building a project-based system or modernizing an existing one, this driver delivers reliable performance and optimal light control, day in and day out.
